84 VW Golf & GTI Quick Reference Specication Book • September 2012

ENGINE MECHANICAL –

2.5L CBTA, CBUA

General, Technical Data

Engine Number

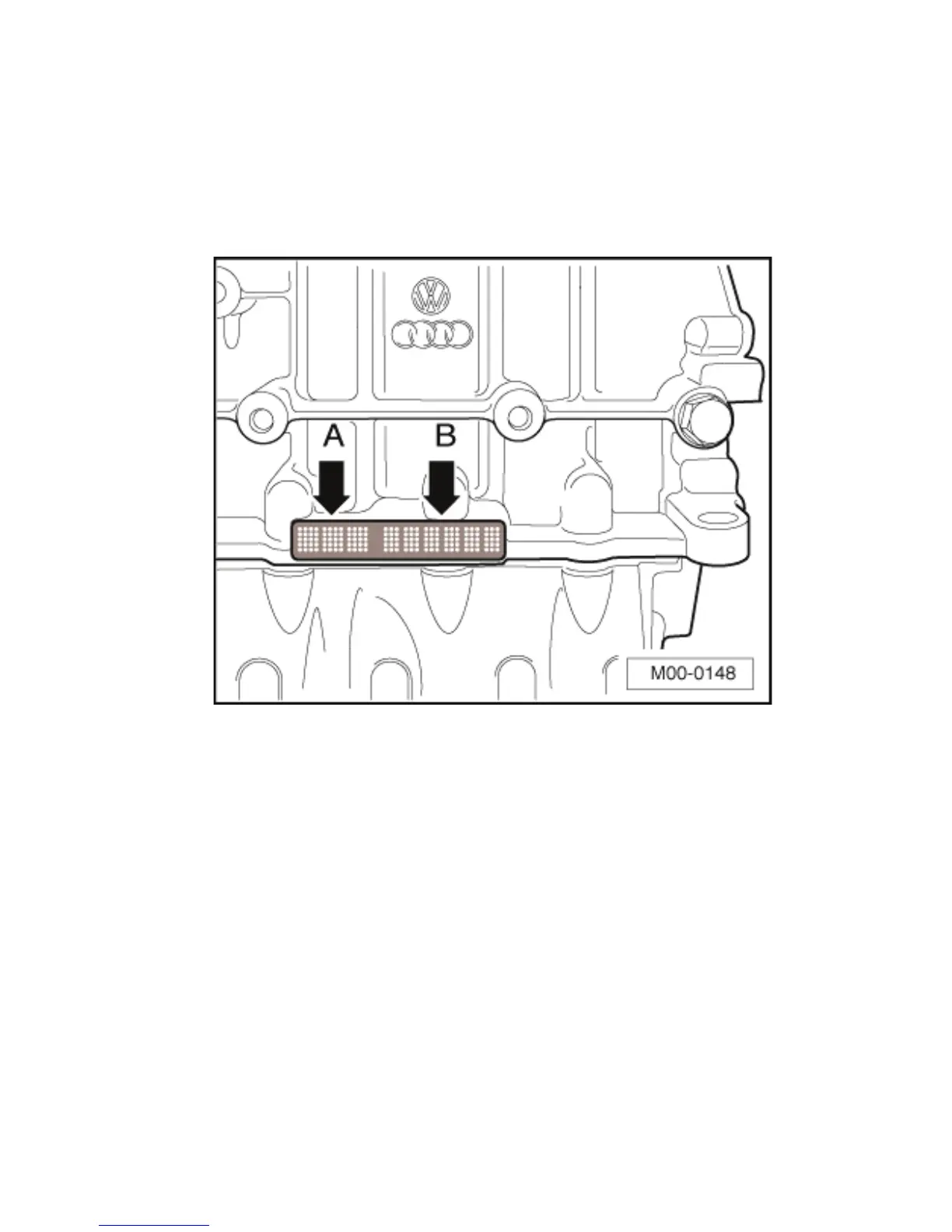

The engine code (A) and serial number (B) are located on

the rear side of the engine, above the cylinder block/upper

oil pan partition. In addition, a sticker with the engine code

and serial number is applied to the cylinder head cover.
