5-6
OM ET18/20/24 us
1.3 * et18_20_24b5
00.fm
5
Lateral angle of inclination
Do not exceed a maximum
lateral angle of in
clination of 10°.
On lateral inclination
s over 10°, pile up material to create a leve
l surface
that can be used as a platform for the ma
chine.

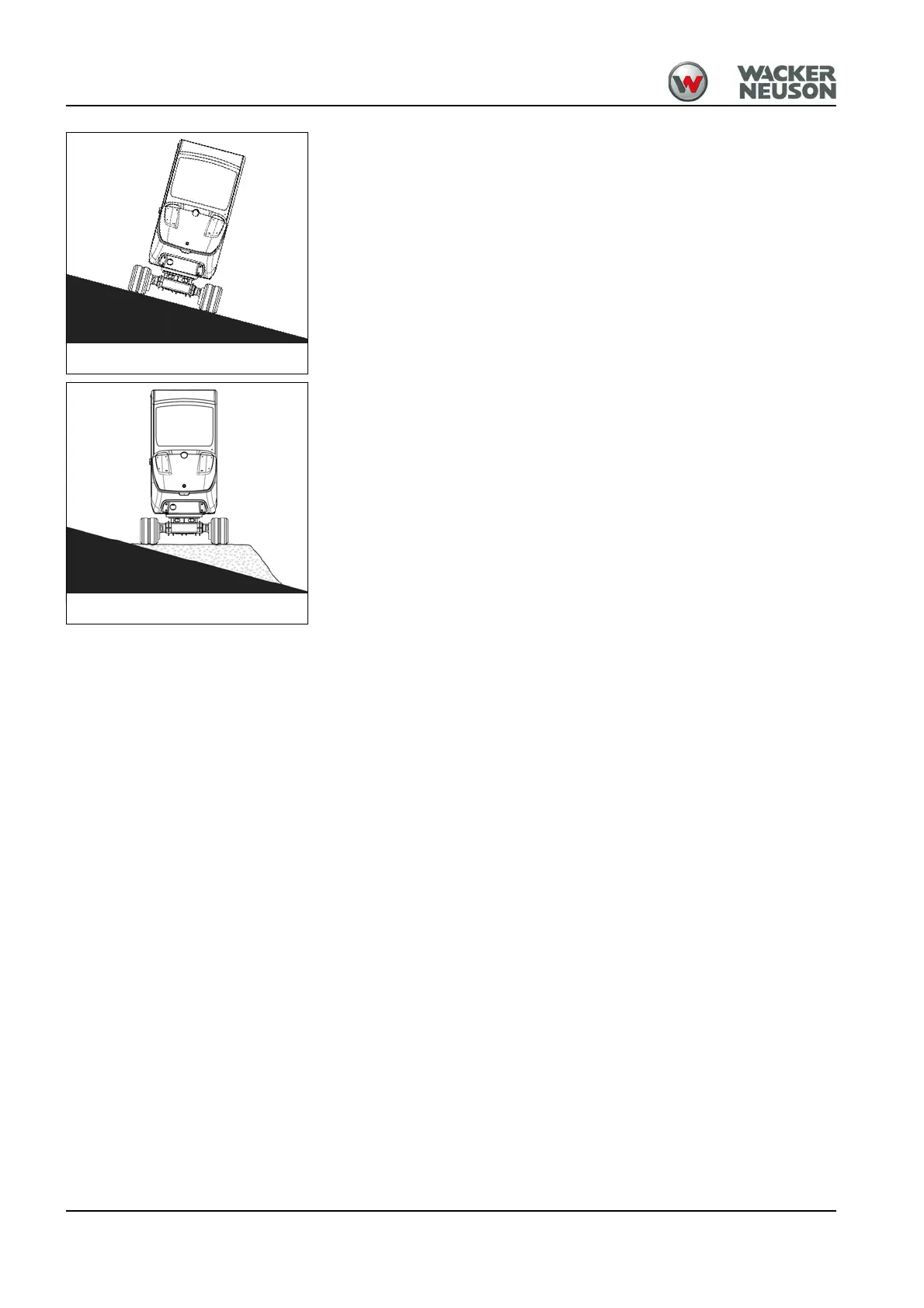

Fig. 123:
Lateral angle of inclinat
ion
< 10°
Fig. 124:
Platform
> 10°
99
101
