4-10
OM ET18/20/24 us
1.3 * et18_20
_24i400.fm
4
Opening/closing the side window
Open
Press lever
D
and let the window engage in the required re
cess.
Close
Press lever
D
and close with handle
E
.
Open
Press lever
D
and let the window engage in the required re
cess.
Close
Press lever
D
and close with handle
E
.

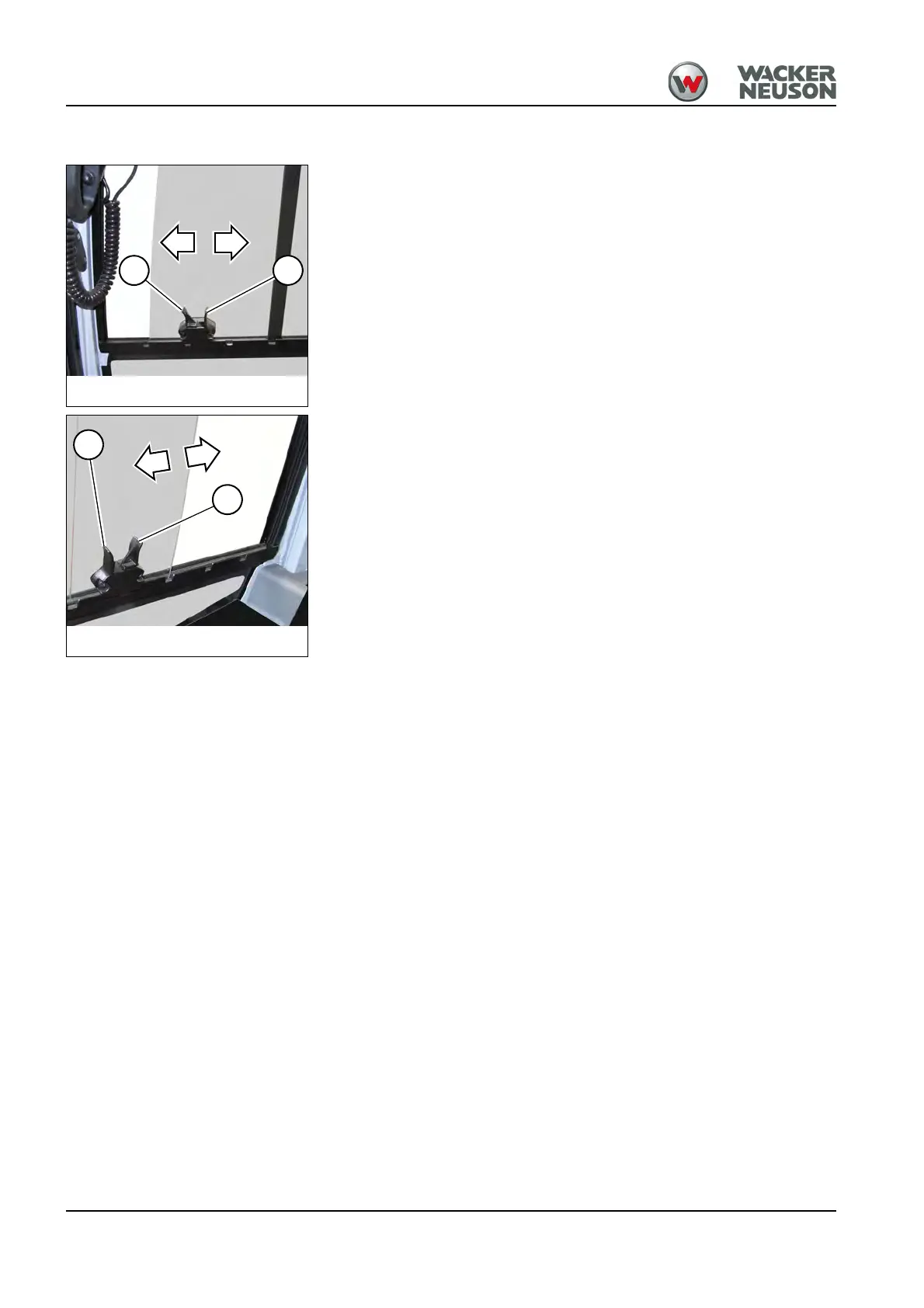

Fig. 75:
Front side window
E
D
Fig. 76:
Rear side wi
ndow
D
E
59
61
