4. Remove the rear roof lights (option).
5. Install shackle A and tighten the screw to 45 Nm (33.2 ft.lbs).
6. Install the lifting gear at the points on the cab provided for lifting the
machine. The required length L1 is 1000 mm (39.4 in).
7. Apply tension to the cab with the lifting gear.
8. Canopy: Remove the electric connector B. The connector is located at
the left behind the seat.
Install the protective cap to protect the connector.
9. Cab (option): Fold cover C forward. Remove the electric connector B.
The connector is located at the left behind the seat.
Install the protective cap to protect the connector.

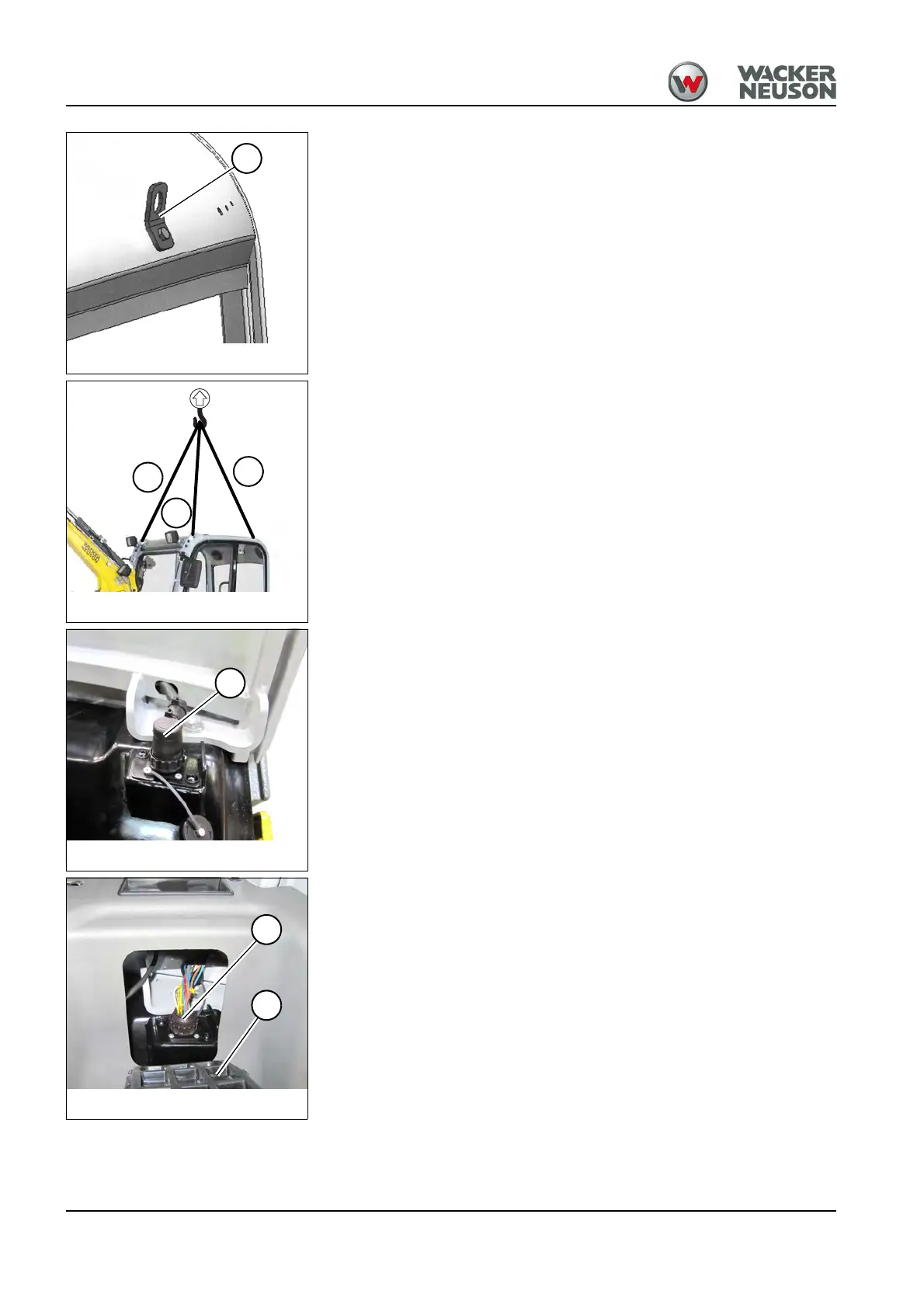

Fig. 234: Installing lifting gear
L1
L1
L1
Fig. 235: Removing the connector (canopy)
B
Fig. 236: Removing the connector (cab)
B
C
