7-8
OM ET18/20/24 us
1.3 * et18_20_24
w700.fm
7
Maintenance label
Some maintena
nce on or with the machin
e may only be perform
ed by a
Wacker Neuson service center (see ma
intenance plan).

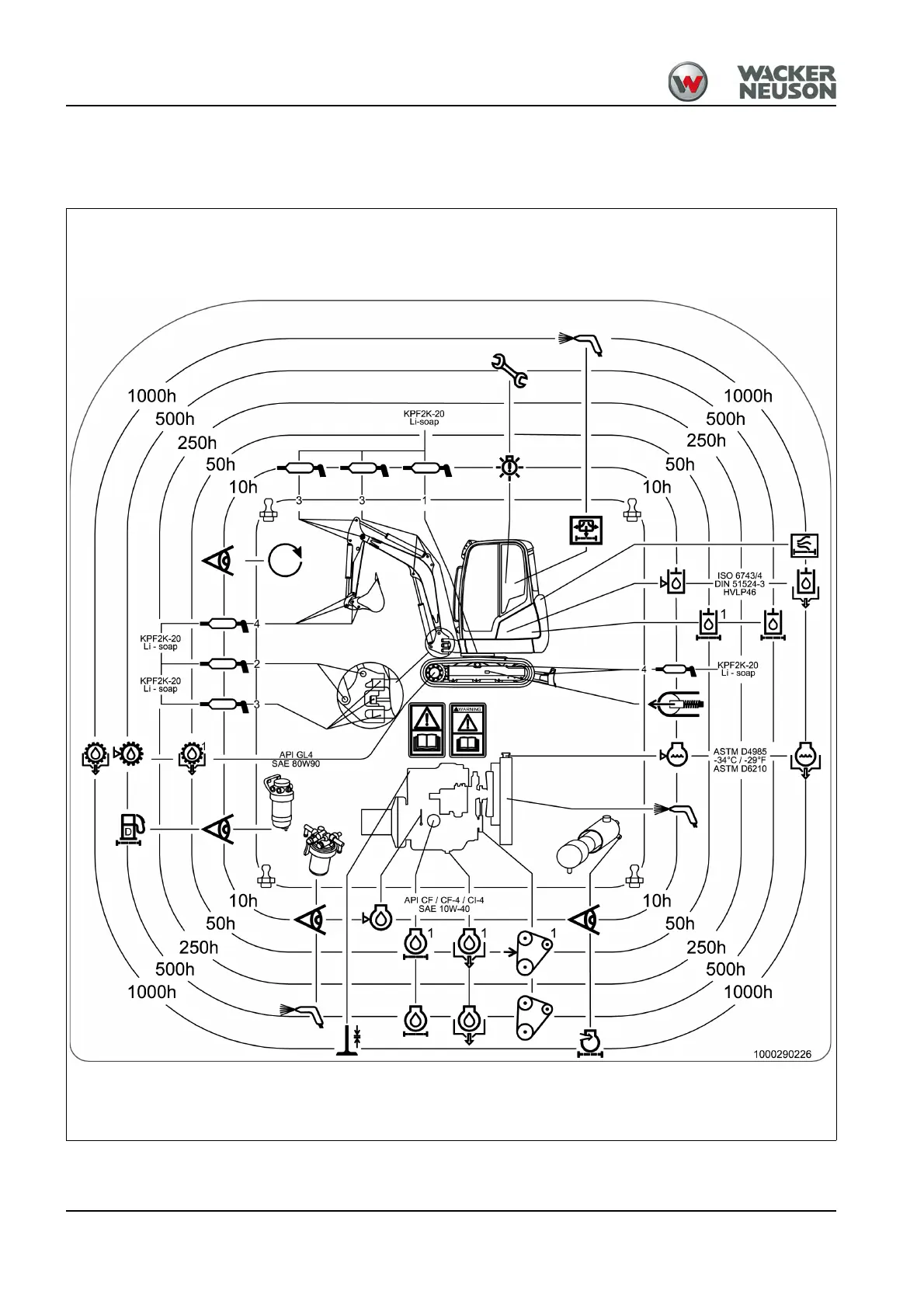

Fig. 222:
Maintenance label overview
*Engine oil replacement inter
val Yanmar 3TNV80F-SSNS1:
*
169
171
