Left-hand cover
Opening:
1. Stop and park the machine. Stop the engine. See “Preparing
lubrication”.
2. Open the engine cover.
3. Pull out lock A.
➥ The side cover is folded sideways.
4. To unlock bow clip B, press and hold it downward.
5. Push side cover C forward.
6. Remove side cover C.
Closing:
1. Hitch side cover C into both shackles D.

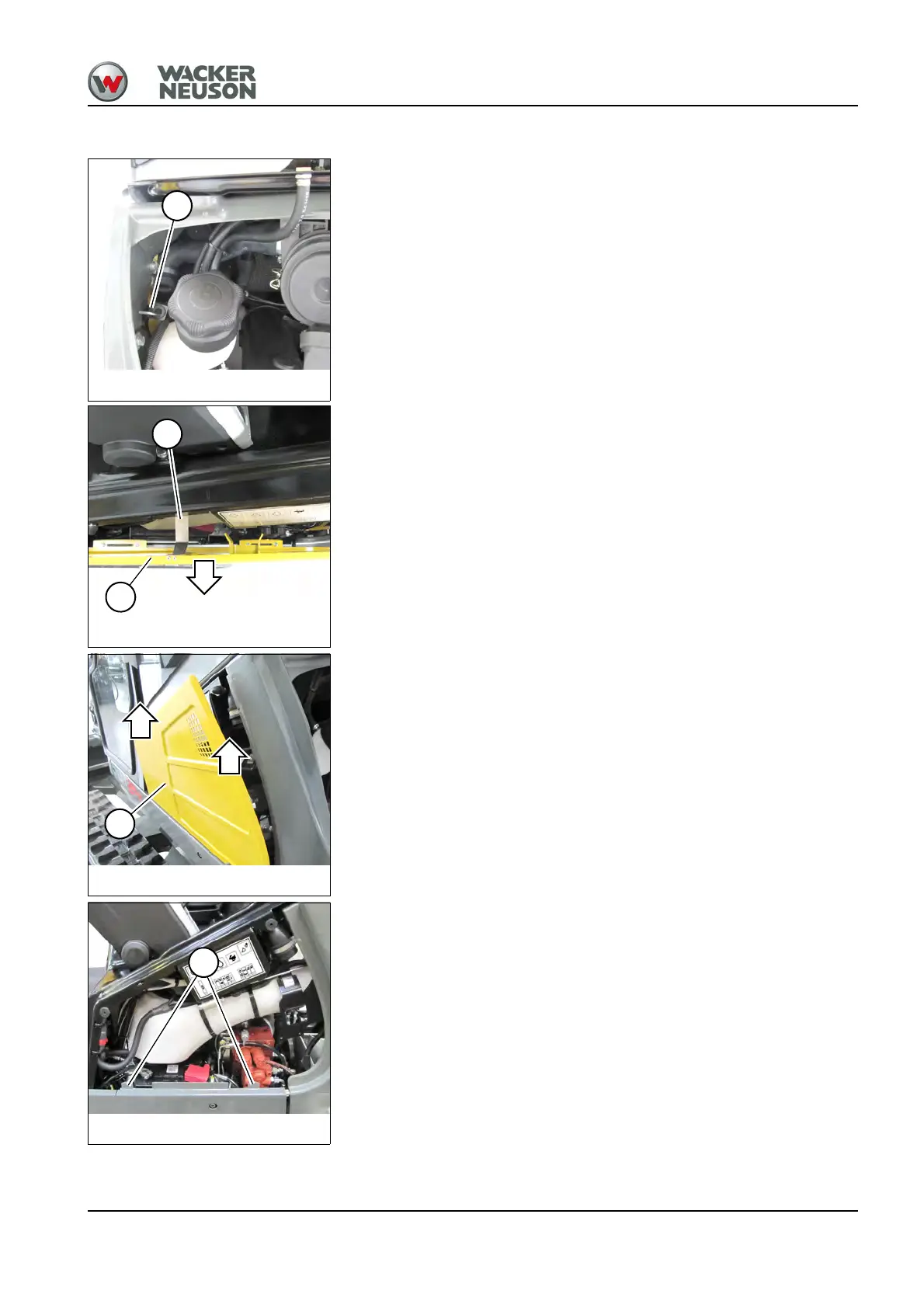

Fig. 224: Opening the lock
A
Fig. 225: Unlocking the bow clip
B
C

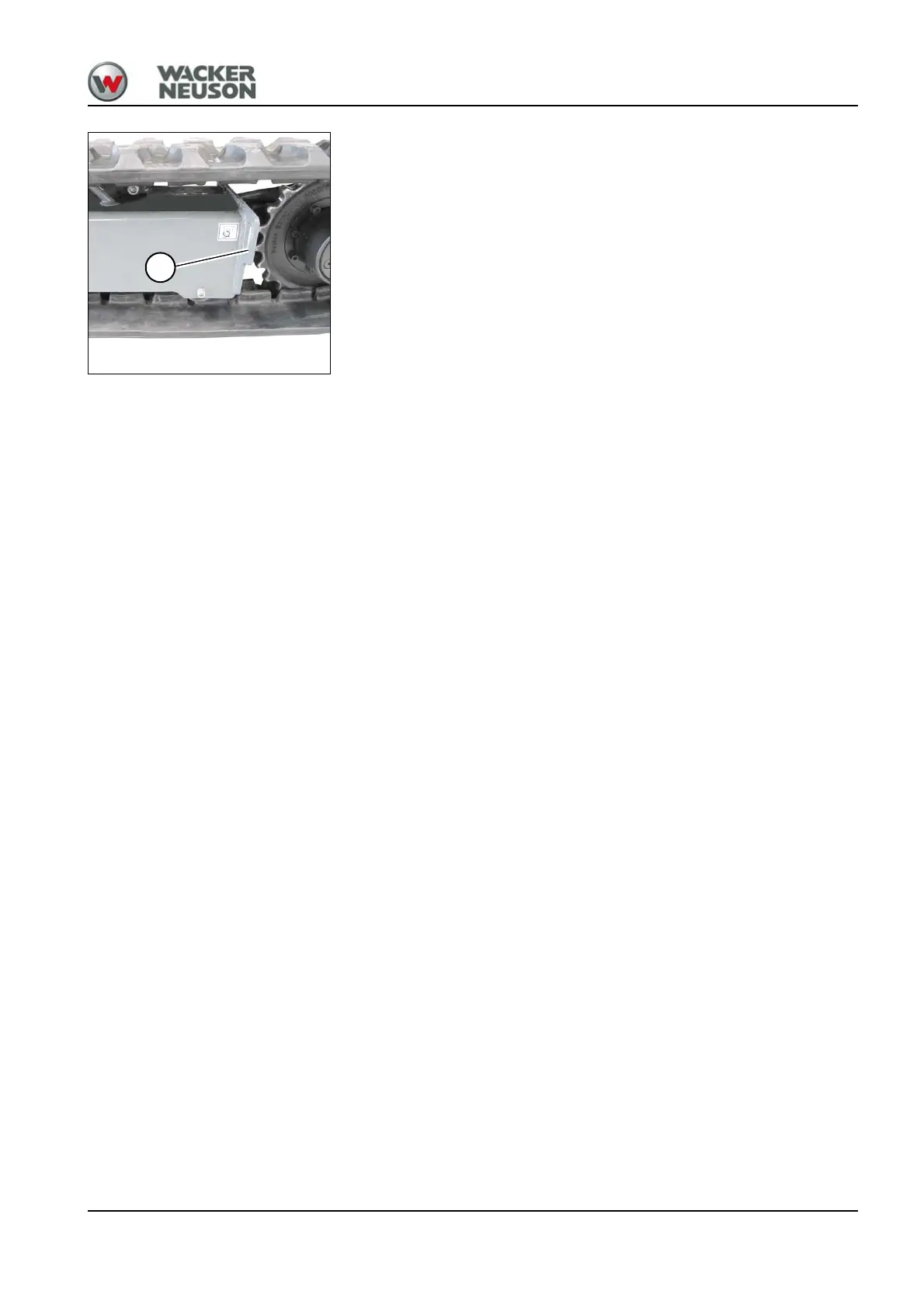

Fig. 226: Removing the side cover
C
Fig. 227: Hitching the side cover
D
