Wacker Neuson ET24 User Manual

5-32 OM ET18/20/24 us 1.3 * et18_20_24b510.fm
5
Additional control circuits
3rd control circuit – AUX II (option)
Turn the rotary switch on the left-hand control lever base to the required
position.
Operating the additional control circuit
Oil flow to left-hand line:
Push slide switch 23 on the left-hand control lever to the left.
Oil flow to right-hand line:
Push slide switch 23 on the left-hand control lever to the right.

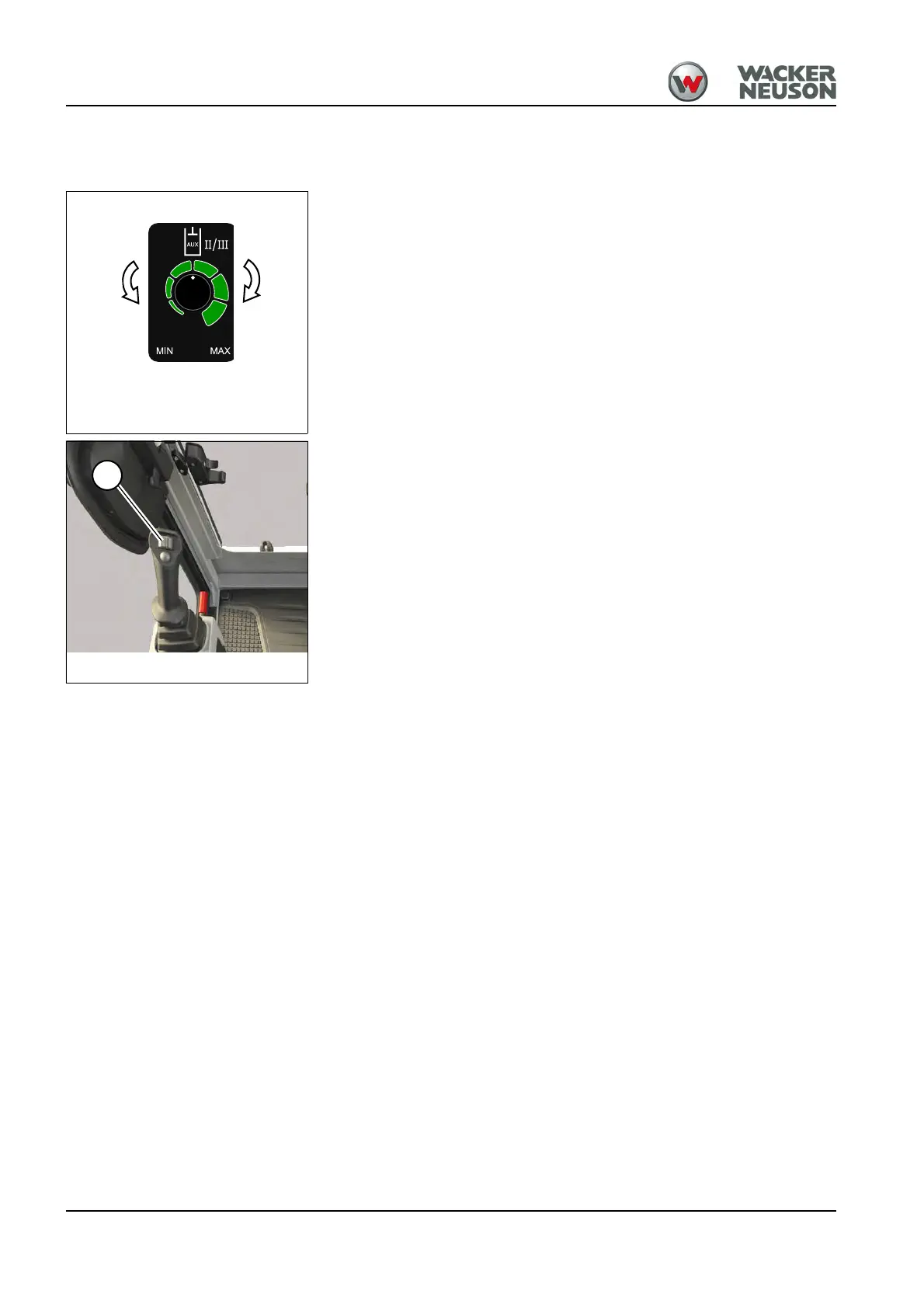

Fig. 169: Setting the oil flow
Fig. 170: Operating the additional control circuit
23
