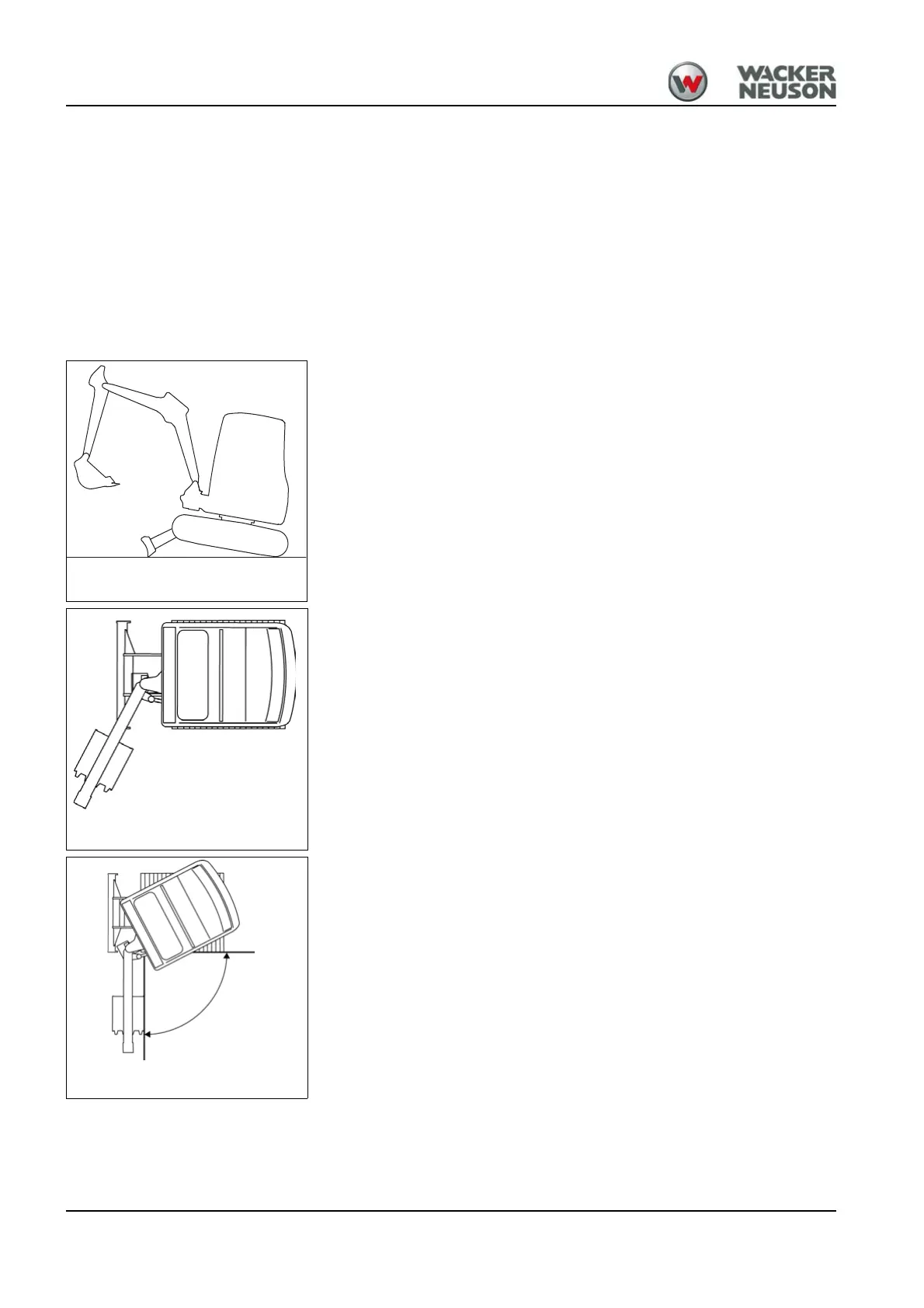

Proportionally controlled additional control circuit – AUX I (option)
1. Changeover to the dual-circuit function. The ball-type cock is located
on the right in traveling direction on the upper carriage.
2. Turn the rotary switch on the left-hand control lever base to the
required position.
Operating the additional control circuit
Oil flow to left-hand line:
Push slide switch 24 on the left-hand control lever to the left.
Oil flow to right-hand line:
Push slide switch 24 on the left-hand control lever to the right.

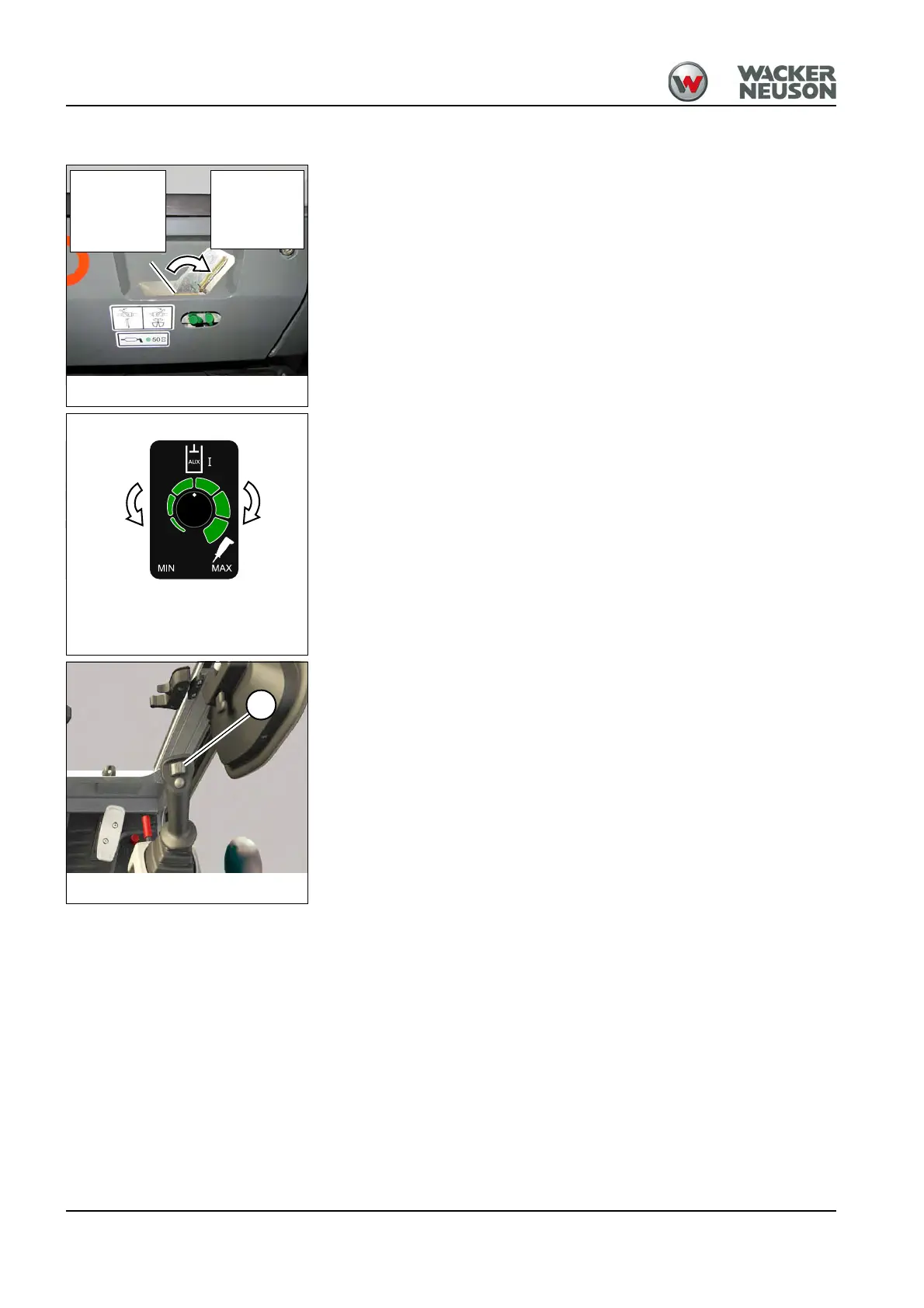

Fig. 161: Ball-type cock
Hammer
operation (sin-
gle-circuit
function)
Grab opera-
tion (dual-cir-
cuit function)
Fig. 162: Setting the oil flow
Fig. 163: Operating the additional control circuit
