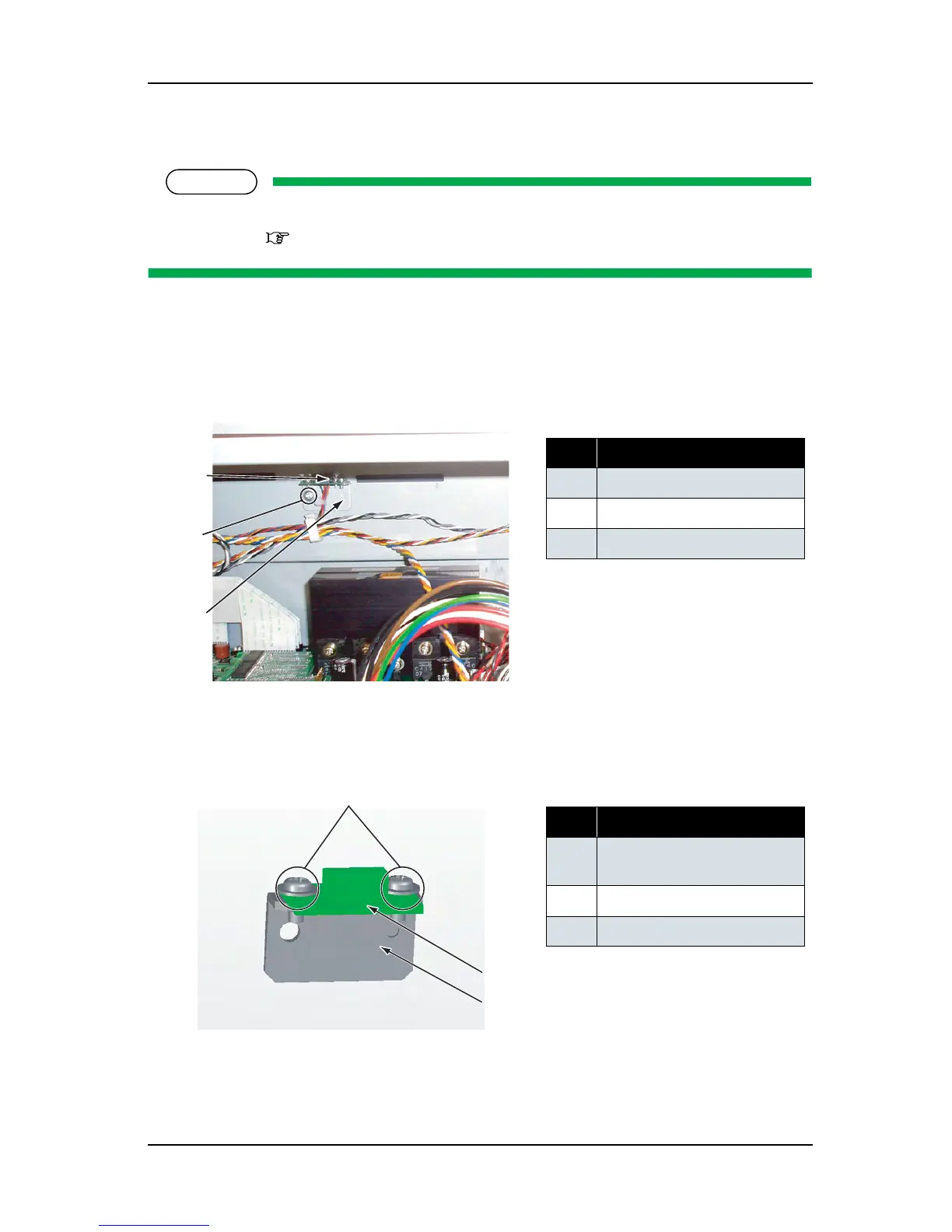

4.9.2 Replacing P_REAR Sensor Assembly
NOTE
Before replacing parts in the P_REAR sensor assembly, remove the following covers.
• Rear cover: "4.2.7 Removing Media Guide R2" p.4-14
1. Remove the PF_REAR sensor assembly connector from the main board assembly.
2. Take the P_REAR sensor assembly cable off the clamp.
3. Remove the screw retaining the PE sensor plate to the frame (tapping screw M3
× 6, S tight cup: 1pce).
4. Remove the screw retaining the P_REAR sensor assembly to the PE sensor plate (cup screw M2
× 6:
2pce).
5. Replace the P_REAR sensor assembly.
No. Part name
1 P_REAR sensor assembly
2
PE sensor plate screw
3 PE sensor plate
No. Part name
1 P_REAR sensor assembly
screw
2
P_REAR sensor assembly
3 PE sensor plate
1
2
3
1
2
3
