4 Parts Replacement RJ-901C/RJ-900C　 Maintenance Manual
4-26
4. To reassemble the unit, reverse the removal procedure.
TIP
• Installation direction of the inlet assembly is specified.Install it with the sealing surface facing up.
• When installing the inlet assembly, match the corresponding color connectors.
4.4 Replacement of PF Driving Section Components
4.4.1 Replacing PF Motor Assembly
NOTE
Before replacing parts in the PF motor assembly, remove the following covers.
•L side cover: "4.2.3 Removing L Side Cover" p.4-9
• Media guide R2: "4.2.7 Removing Media Guide R2" p.4-14

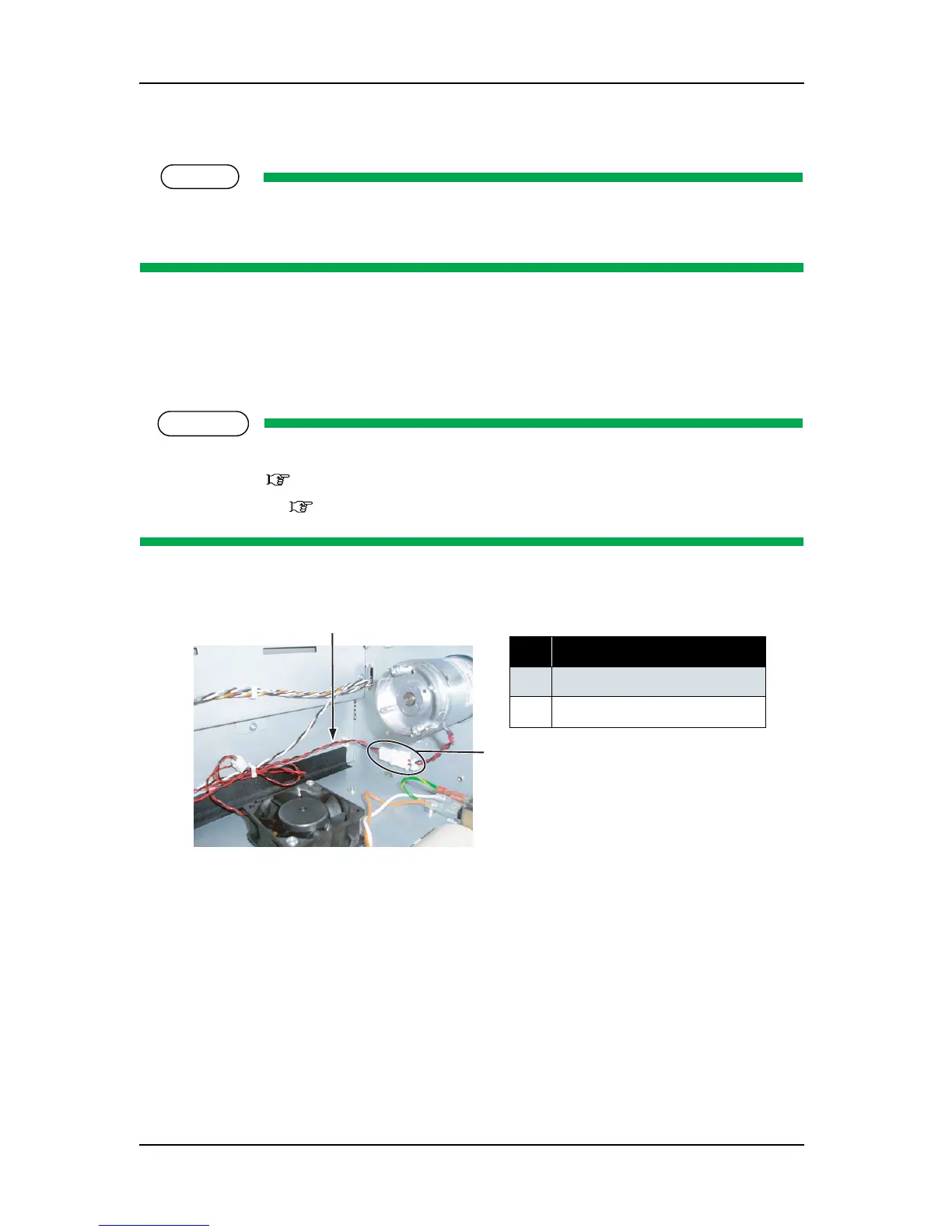

1. Remove the PF motor assembly connectors out through the PF motor cable assembly.
No. Part name
1 PF motor cable
2
PF motor assembly connector
2
1
To Next Page
