RJ-900C, RJ-901C Maintenance Manual Supplement Exploded View
6
2006.04.19 Rev.A

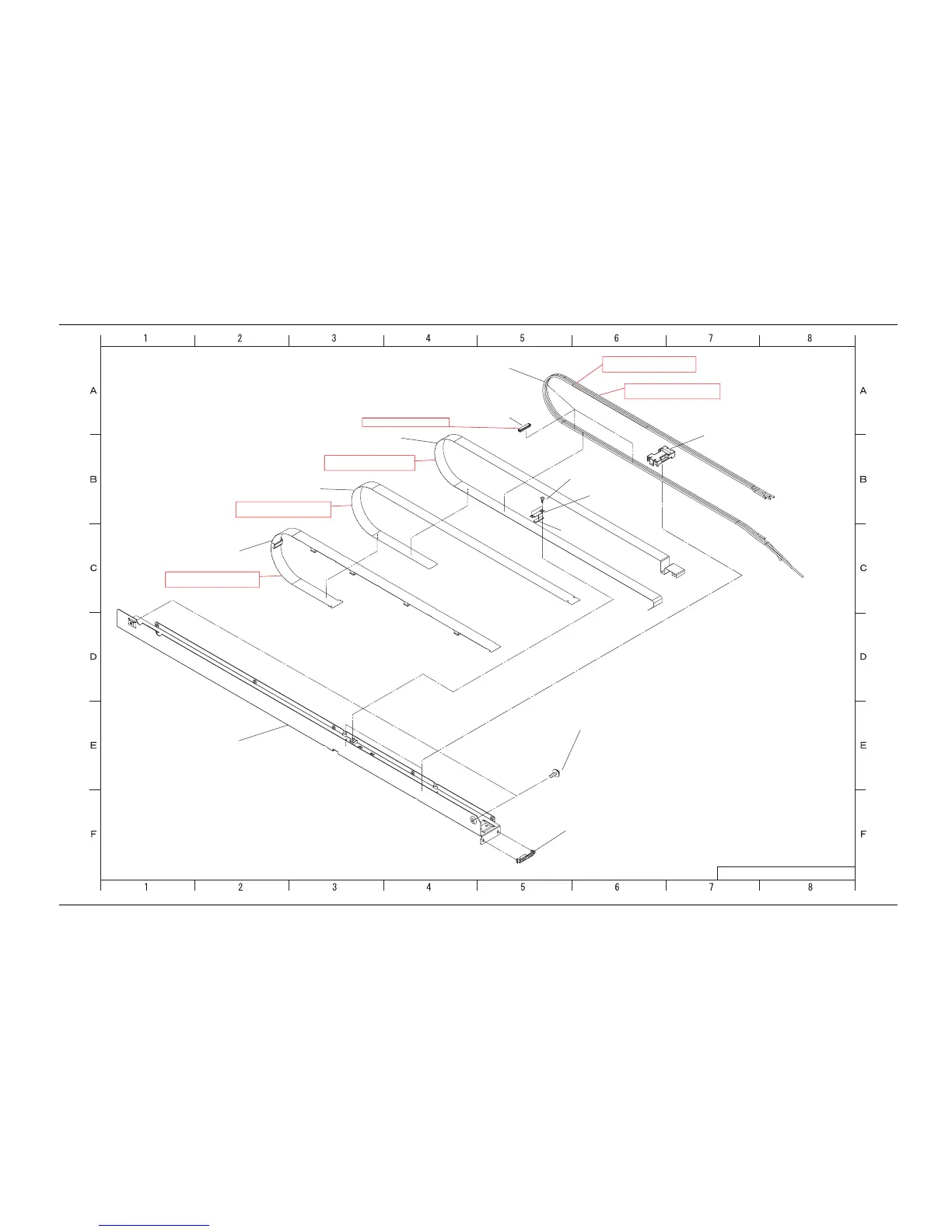

X Rail Assy 2
Model Name : RJ-900C, RJ-901C
Exploded View
Bearer cushion
DF-49530
Tapping screw M3 x 6 S tight cup
MS-5203006A
Flat clamp FCR35
E-FCR-35-V0
Tube holder
DE-36539
Cable guide
DE-22145 (A1)
DE-12559 (A0)
Tube guide film
DE-22167 (A1)
DE-22168 (A0)
Steel bearer
DE-36590 (A1)
DE-36585 (A0)
CR tape wire
DF-48617 (A1)
DF-48618 (A0)
Ink tube
DF-48678 (A1-1)
DF-48679 (A1-2)
DF-48680 (A0-1)
DF-48681 (A0-2)
Bearer holder
DF-48696
Pan-head screw
with spring washer
and flat washer M3 x 6
MS-0503006A
Tube clamp
DE-36584
Ink tube 1_A1_assembly DF-49032
Ink tube 1_A0_assembly DF-49034
Ink tube 2_A1_assemblyޓDF-49033
Ink tube 2_A0_assemblyޓDF-49035
Steel bearer A1_assembly DF-49042
Steel bearer A0_assembly DF-49043
CR cable A1_assembly DF-49015
CR cable A0_assembly DF-49016
Tube guide A1_assembly DF-49039
Tube guide A0_assembly DF-49040
Tube clamp assembly DF-49041
