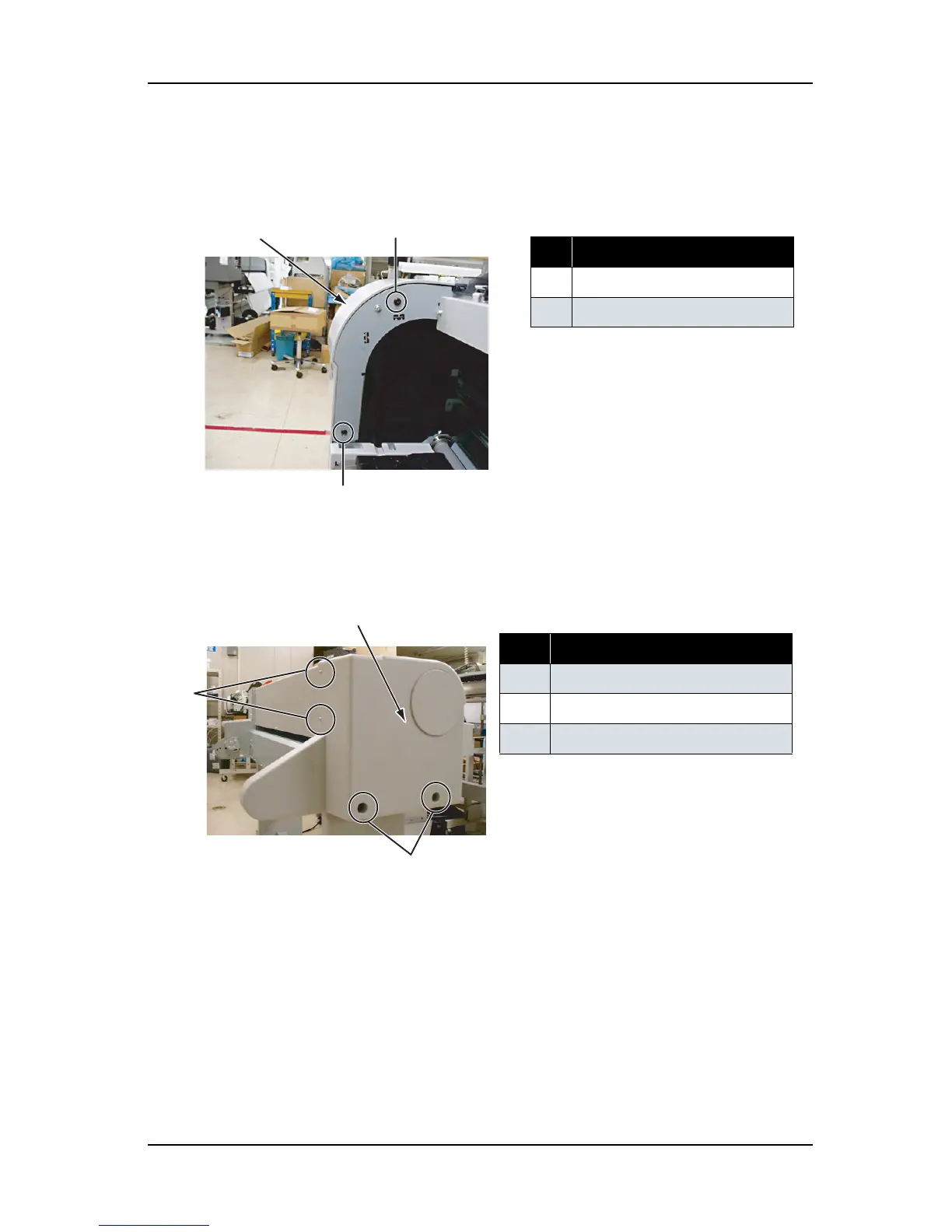

4.2.3 Removing L Side Cover
1. Remove the L side cover front screw (tapping screw M4 × 12, P tight binding black: 2pcs).
2. Remove the L side cover rear screw (tapping screw M4
× 8, S tight cup: 2pcs).
3. Remove the L side cover right screw (tapping screw M4
× 8, S tight cup: 2pcs).
No. Part name
1L side cover
2 L side cover inner screw
No. Part name
1 L side cover
2 L side cover rear screw
3 L side cover right screw
1
2
2
2
3
1
