RJ-901C/RJ-900C 　 Maintenance Manual 4 Parts Replacement
4-5
4.2 Removal of Covers
Before replacing any service parts in the machine, some external covers must be removed.
This section describes the procedure to remove covers.

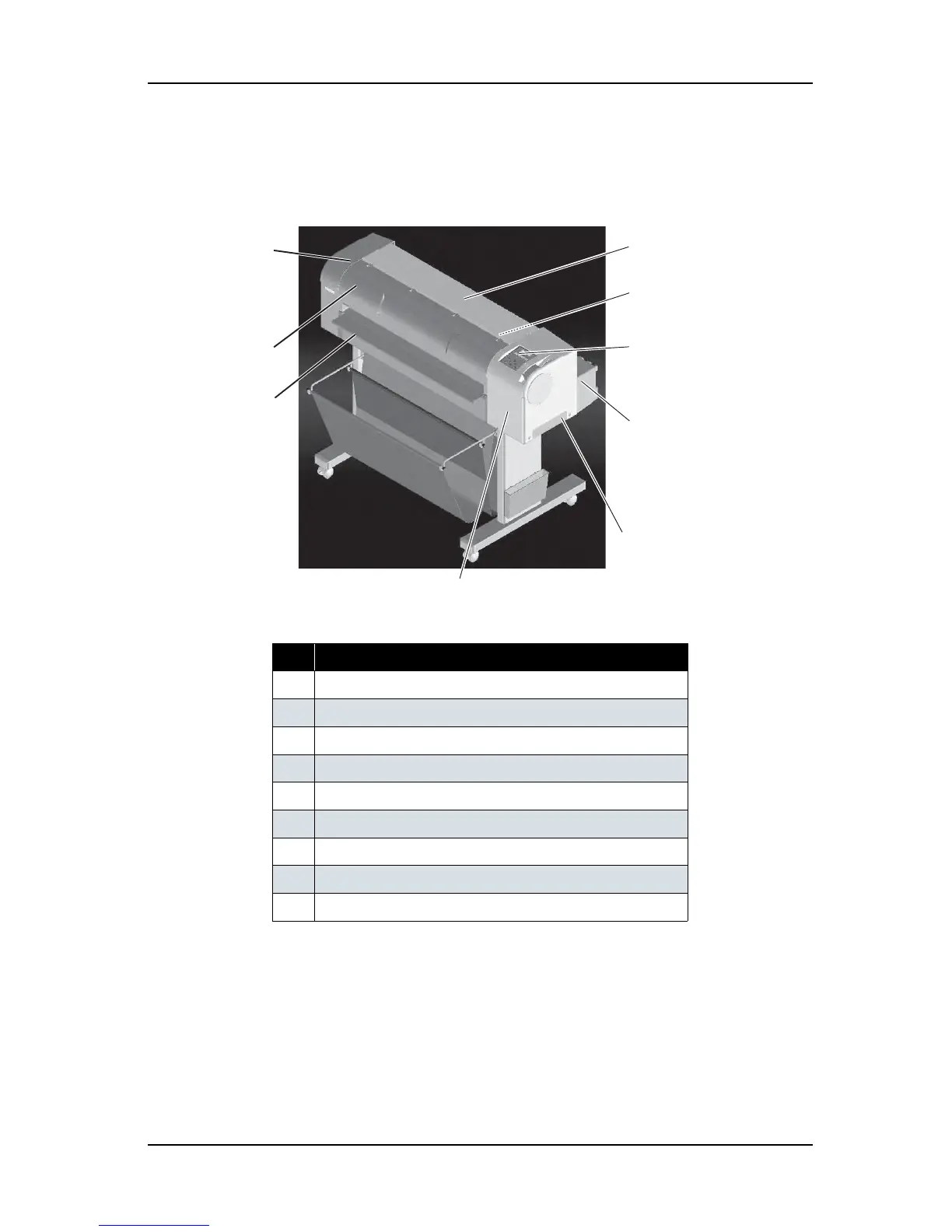

Table 4-1 Cover Component List
No. Part name
1
L side cover
2
Front cover
3
Media guide F
4
R side cover
5
Waste fluid cassette
6
Ink Holder(I/H) cover
7
Operation panel unit assembly
8
Media guide R2 (rear side)
9
Top cover
1
3
2
4
5
6
7
9
8
rear side㧕
