Xerox 7142 Service Manual

RJ-900C, RJ-901C Maintenance Manual Supplement Exploded View
2
2006.04.19 Rev.A
Model Name : RJ-900C, RJ-901C
Frame Assy

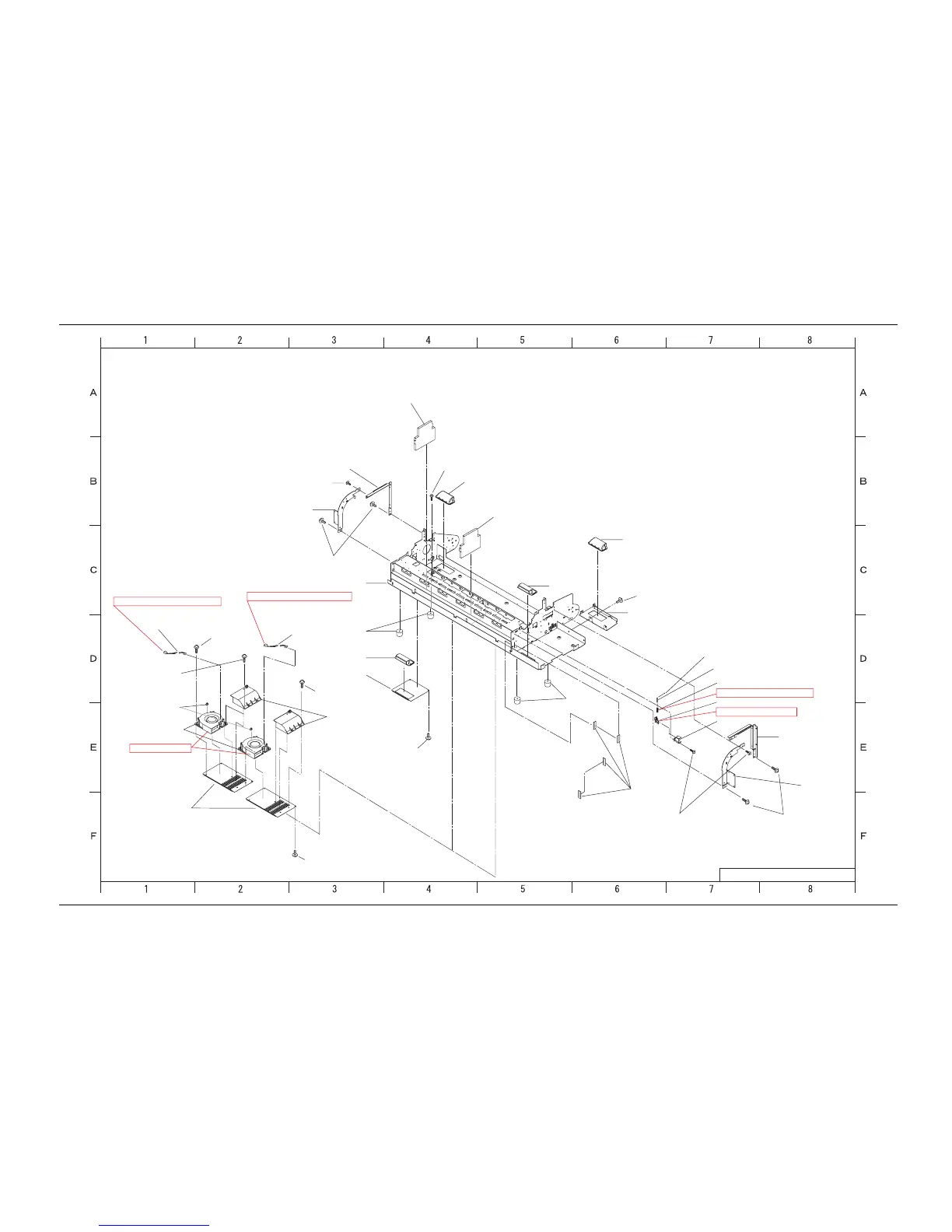

Exploded View
F Frame L
DE-22151
T Frame L
DE-22153
Frame seal
DF-48698
Frame seal
DF-48698
Frame
DE-12582 (A1)
DE-12583 (A0)
Handle t0.8
DF-48566
Base cover
DE-36510
Mini-clamp (MN-2)
DE-36571
Fan duct
DE-12536
Fan plate
DE-36509
Fan duct
DE-35167
Rubber leg
DF-48567
Rubber leg
DF-48567
Handle t1.6
DF-48565
Handle t1.6
DF-48565
Handle t1.6
DF-48565
FFC seal
DF-48722
R Frame B
DE-22155
F Frame R
DE-22152
T Frame L
DE-22154
Lock arm 2 DE-36654
EE type fixing ring E-2 MS-8002000A
Shaft DF-49133
Lock arm spring DF-48563
Lock bracket DF-49134
Lock arm assembly DF-49059
Suction fan cable 1
assembly
DF-48625
Suction fan cable 2
assembly
DF-48625
Pan-head machine screw
M4x5, Ni-3
MS-01040051
Pan-head machine
screw M4x8
MS-0104008A
Pan-head screw
with spring washer
and flat washer (polished)
M4x40ޓ
MS-0504040A
Pan-head screw with flat washer (polished) M4x20
MS-0504040A
Tapping screw M4x6, S tight cup
MS-5204006A
Tapping screw M4x6, S tight cup
MS-5204006㧭
Tapping screw M3x6, S tight cup
MS-5203006A
Tapping screw M3x6, S tight cup
MS-5203006A
Tapping screw M4x6, S tight cup
MS-5204006A
Suction fan DF-46328
Lock arm spring assembly DF-49060
Suction fan relay 1_assembly DF-48994
Suction fan relay 2_assemblyޓDF-48995
6CRRKPIUETGY/Z5VKIJVEWR
/5#
Tapping screw M3x6, S tight cup
MS-5203006A
/#+0,߳
/#+0,߳
