RJ-901C/RJ-900C Maintenance Manual 7 Adjustment
7-29
3. Loosen the vertical-slant adjusting tab screw and move the tab left and right to adjust the head vertical
angle.
7.9 Cutter Holder Height Adjustment
This section describes the procedure to adjust the cutter holder height.
7.9.1 Jigs and Tools
The following jigs and tools are required for cutter holder height adjustment.
• Cutter holder height adjusting jig adjust to .5mm rear of slot
7.9.2 Adjustment Procedure
To make adjustment, follow the steps below.
NOTE
Before starting adjustment, remove the following parts.
• CR cover: Step 2 to 4 in "4.6.1 Replacing Print Head" p.4-37
• Cutter blade: Operation manual

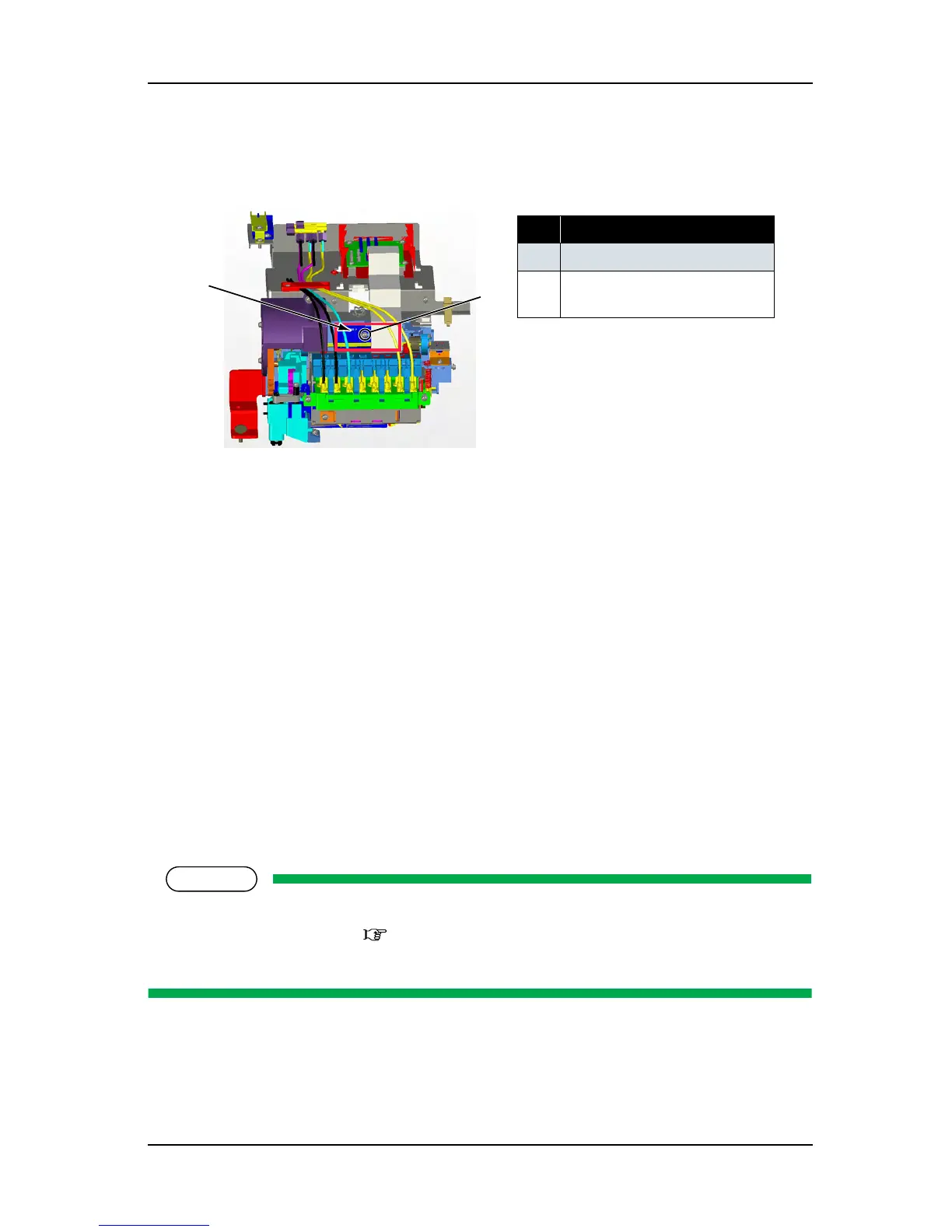

No. Part name
1
Vertical-slant adjusting tab
2
Vertical-slant adjusting tab
screw


