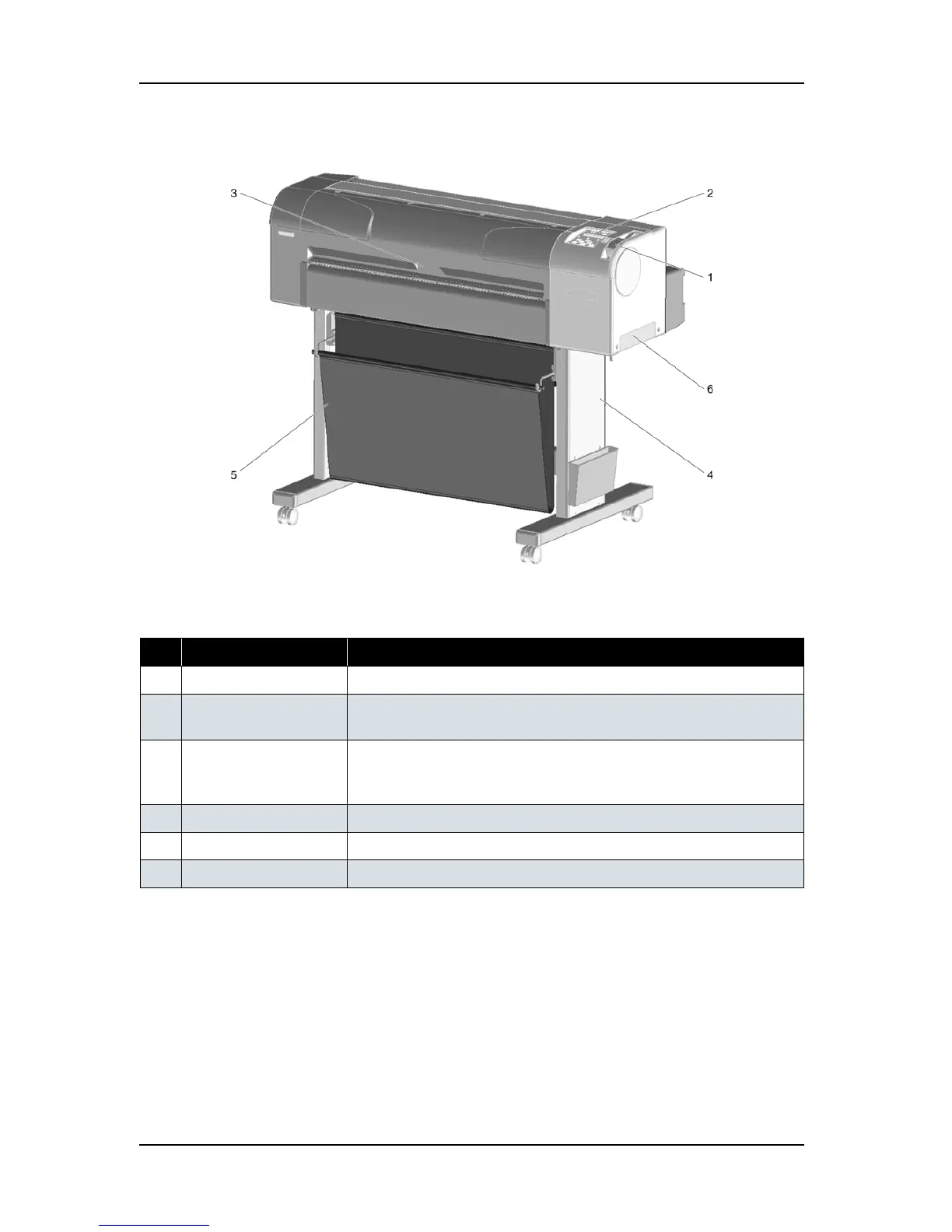

2.3.1 Front Section
Table 2-1 Part Names and Functions of Front Section
No. Name Function
1 Media set lever This lever is used to fix or release the media.
2 Operation panel This panel is used to set operational conditions, the status of the plotter,
and other functions.
3 Front cover This cover keeps the operator safe from the drive parts of the plotter while
it is operating.This is opened/closed when replacing the cutter or paper is
jammed.This should be closed during normal use.
4 Stand (optional) This stand is used to install the plotter on a flat floor surface.
5 Output tray This is a part of the stand. This tray holds the ejected media.
6 Waste fluid tray This tray is used to store waste ink discharged from print head.
