4 Parts Replacement RJ-901C/RJ-900C　 Maintenance Manual
4-60
4.8.3 Replacing Cover Sensor Assembly
NOTE
Before replacing the cover sensor assembly, remove the parts as follows.
"4.2.1 Removing R Side Cover" p.4-6
"4.2.3 Removing L Side Cover" p.4-9

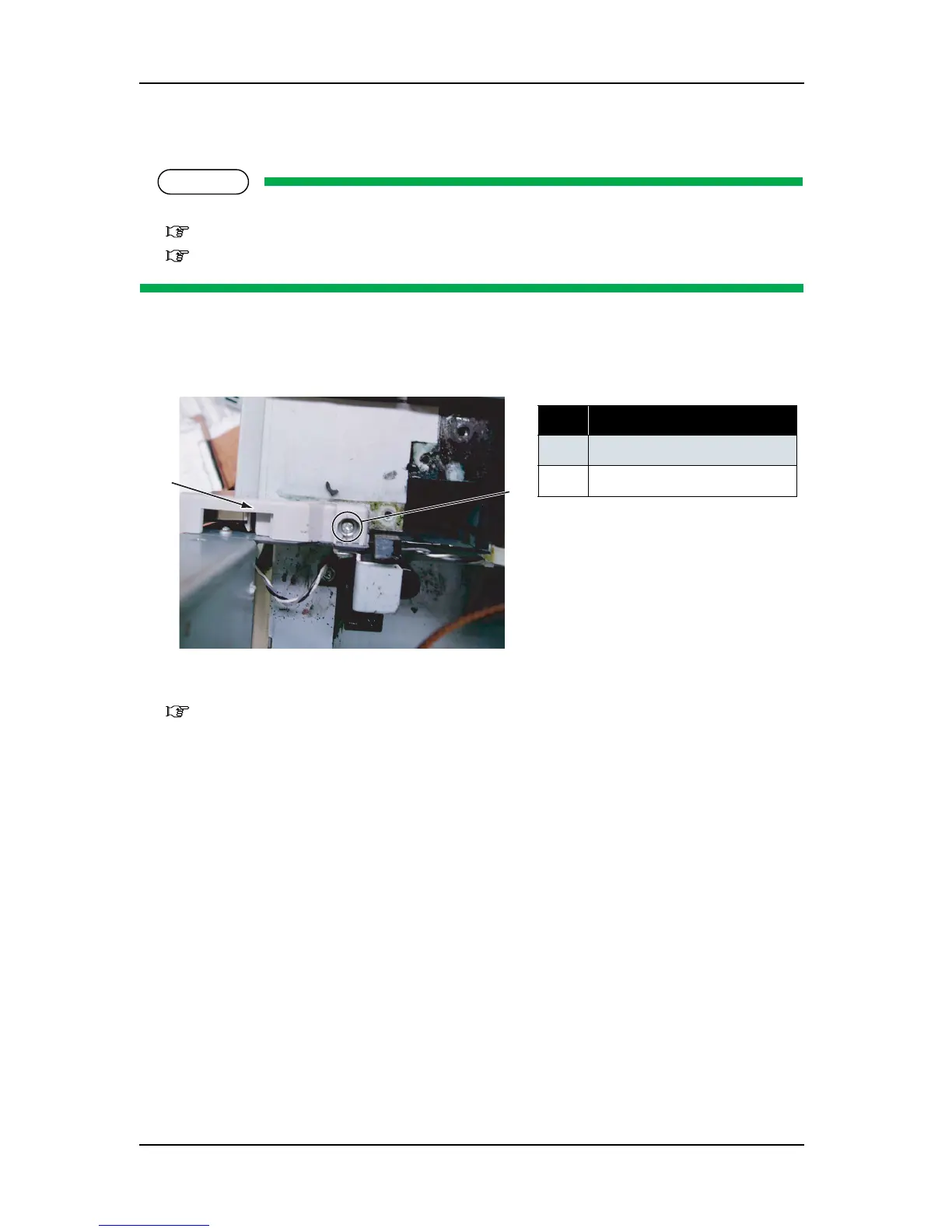

1. Remove the screw retaining the sensor cover (L/R) to the frame (tapping screw M3 × 6, S tight cup: 1pce
per cover). (The diagram below shows the sensor cover R).
2. Remove the cover sensor connector from the main board.
"4.3.2 Removing Board Bracket" p.4-18
No. Part name
1 Sensor cover R
2
Sensor cover R screw
1
2
To Next Page
