Tray 6
ColorQube 9301/9302/9303 Multifunction Printer
User Guide
177
Tray 6
Tray 6, or Inserter, is an optional paper tray for use with the HVF and is used for inserting post-process
sheets in the set. This tray provides a convenient and efficient way of adding pre-printed covers or
inserts to a job. The following media can be loaded in Tray 6:
• Up to 250 sheets of 75 g/m² or 20 lb paper
•Weights from 60 g/m² to 216 g/m² (16–56 lb)
• Media sizes:
• A4 or 8.5 x 11 in. SEF or LEF
•8.5 x 13 in. SEF
•8.5 x 14 in. SEF
• A3 or 11 x 17 in. SEF
•Media types:
• Bond, standard, or recycled paper
•Card
•Pre-printed media
• Hole-punched paper
• Clear transparencies
Tray 6 must not be used to feed labels, envelopes, t
abs, or carbonless paper. Tray 4 can be used for
these media types.
Loading Tray 6
A4 or 8.5 x 11 in. media may be loaded either in the LEF or SEF orientation. Media sizes larger than ï€
A4 or 8.5 x 11 in. must be loaded in the SEF orientation.
1. Place the media in the correct orientation for the job.

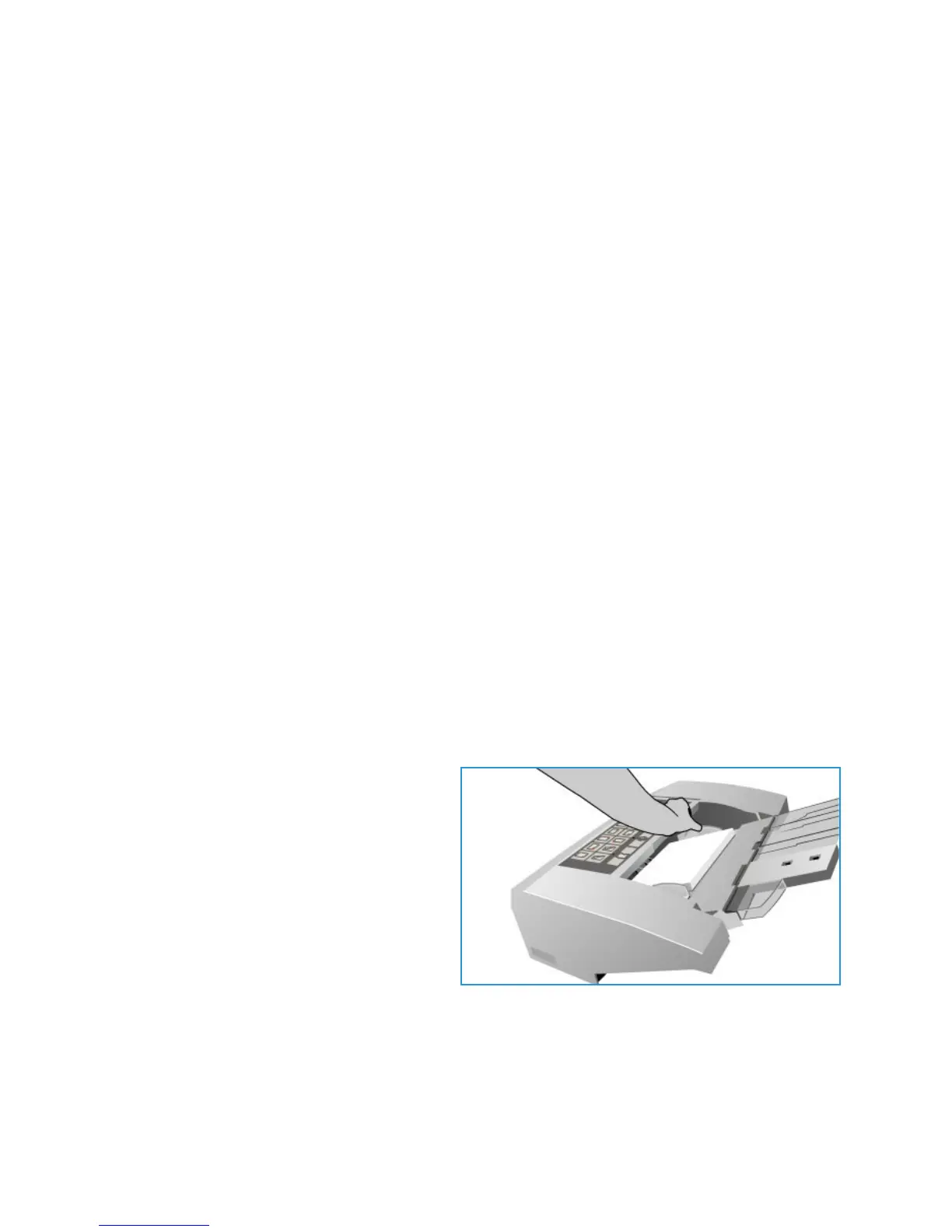

The labels on the top of Tray 6 provide
instructions f
or the input and output
orientations. Refer to Orientation of Pre-
printed Media on page 178.
2. The paper is registered centrally, to the left
edge of the tray.
Paper must not be loaded above the
maximum fill
line.
3. Make sure that the guides just touch the
paper.
