Product overview
WorkCentre 5019/5021
User Guide
3-3
Right side, rear
11 Bypass tray Load paper here. The tray can be extended.
12 Left cover A Open this cover to remove any jammed paper.
When the machine works properly, this cover is locked. To open this
cover, make sure to exit Sleep mode and turn the machine's power off.

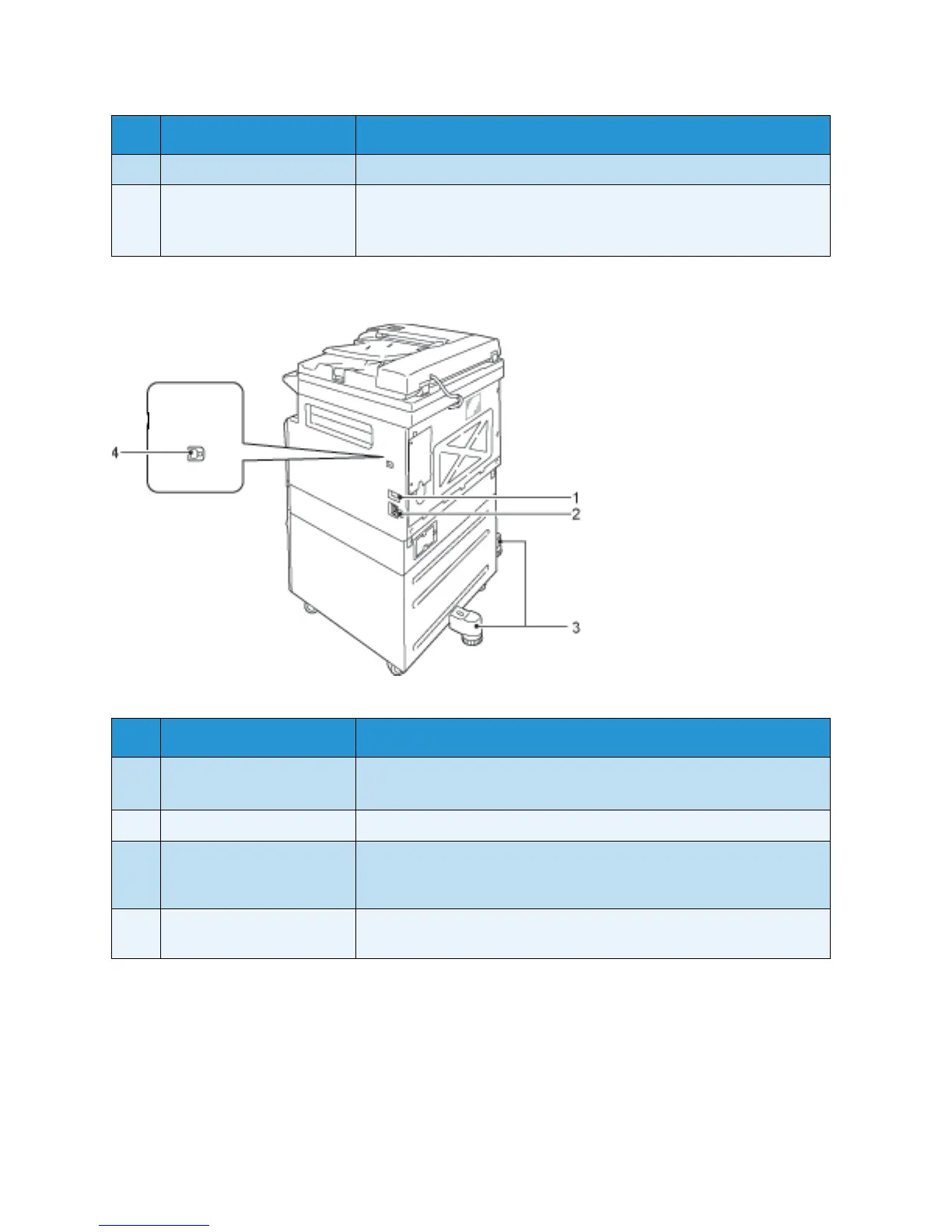

No. Component Description
1 Power switch Switches the power of the machine on and off.
For more information, refer to Power source on page 3-6.
2 Power cord connector Connects the power cord.
3 Adjusting foot Prevents the machine from toppling over. Move the machine to its
installation site and then rotate this adjuster in clockwise direction
until it touches a floor.
4 USB 1.1/2.0 interface
connector (Type B)
Connect a USB 1.1/2.0 cable.
