Product overview
WorkCentre 5019/5021
User Guide
3-13
Machine status

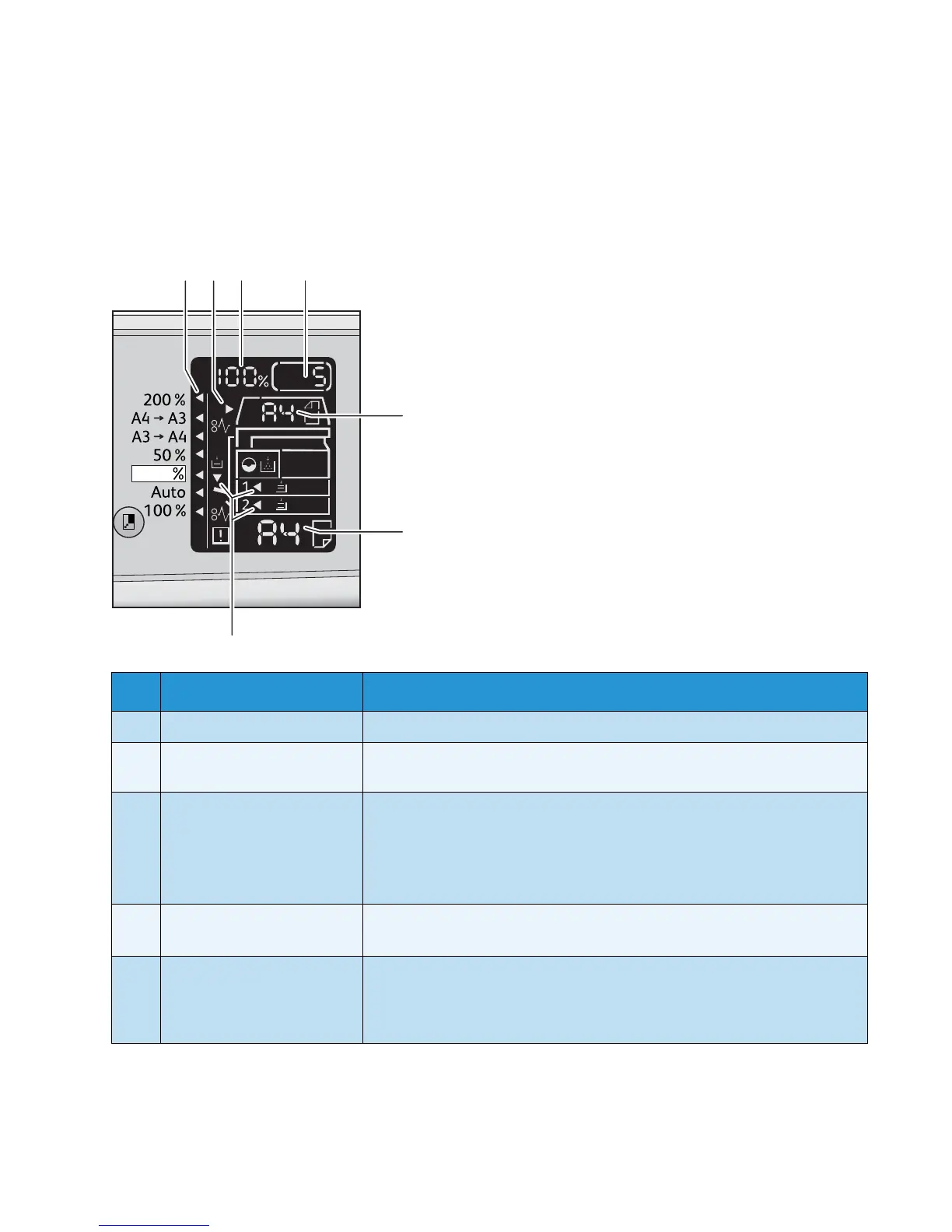

The Status Machine Diagram (mimic) consists of the following contents to display the machine status.
This section provides detailed description of each indicator on the machine status diagram (mimic).
No. Component Description
1 Reduce/Enlarge indicator Indicates the selected zoom ratio.
2 Document indicator This indicator is lit when a document is placed in the document feeder or a
document jam occurs.
3 Reduce/Enlarge display area Displays the specified zoom ratio within a range of 25 to 400%.
When automatic detection is selected, “Aut” is displayed.
Also displays the total number of copied pages, User ID/System
Administrator ID, program number, and job type (Prt for Print, Scn for Scan,
and Err for Error).
4 Tota l Cop y d is p la y a re a Displays the total number of copies.
Also displays a program number or an error code.
5 Original Size display area Displays the scanning size and orientation that are specified with the
Original Size button when the document glass is used. When the document
is placed in the document feeder, automatic detection is automatically set
and “Aut” is displayed.
