Xinje DS2 series User Manual

75

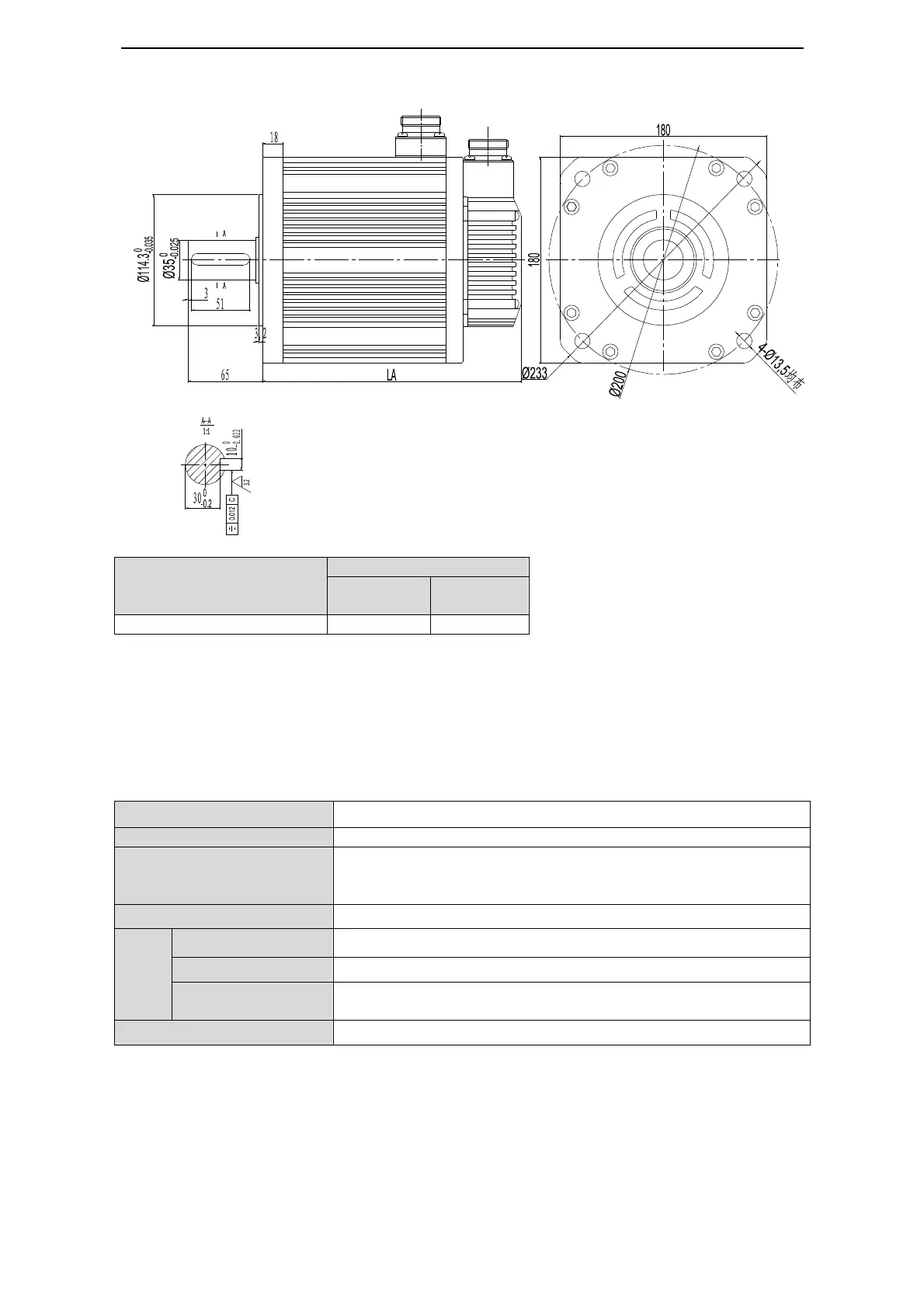

 Dimensions of 180 series servo motors (unit: mm)
Type
LA
Normal
Ba
nd
-
type
brake
MS
-
180ST
-
M19015□□
-
23P0
232
289
7-2．Servo drivers
This section introduces the specification and dimension of servo drive.
7-2-1．General specification
Servo unit DS2 series 220V servo drive
Encoder
Incremental encoder (2500 ppr)
Input power
DS2
-
2□P□: single phase AC200~240V, 50/60Hz
DS2-2□P□-A: 3-phase AC200~240V, 50/60Hz
DS2-2□P□-B: 3-phase AC200~240V, 50/60Hz
Control mode 3-phase full-wave rectifier control IPM PWM sine-wave current dirve
Using
Temperature
0 ~ +50 ℃/-20 ~ +85 ℃
Humidity Below 90% RH (no condensation)
Vibration /impact
resistance
4.9m/s
2
/ 19.6m/s
2
Structure Base installation
