Yamaha WaveRunner FX SHO Service Manual

4-8
E
FUEL
1
2
3
4
5
6
7
8
9

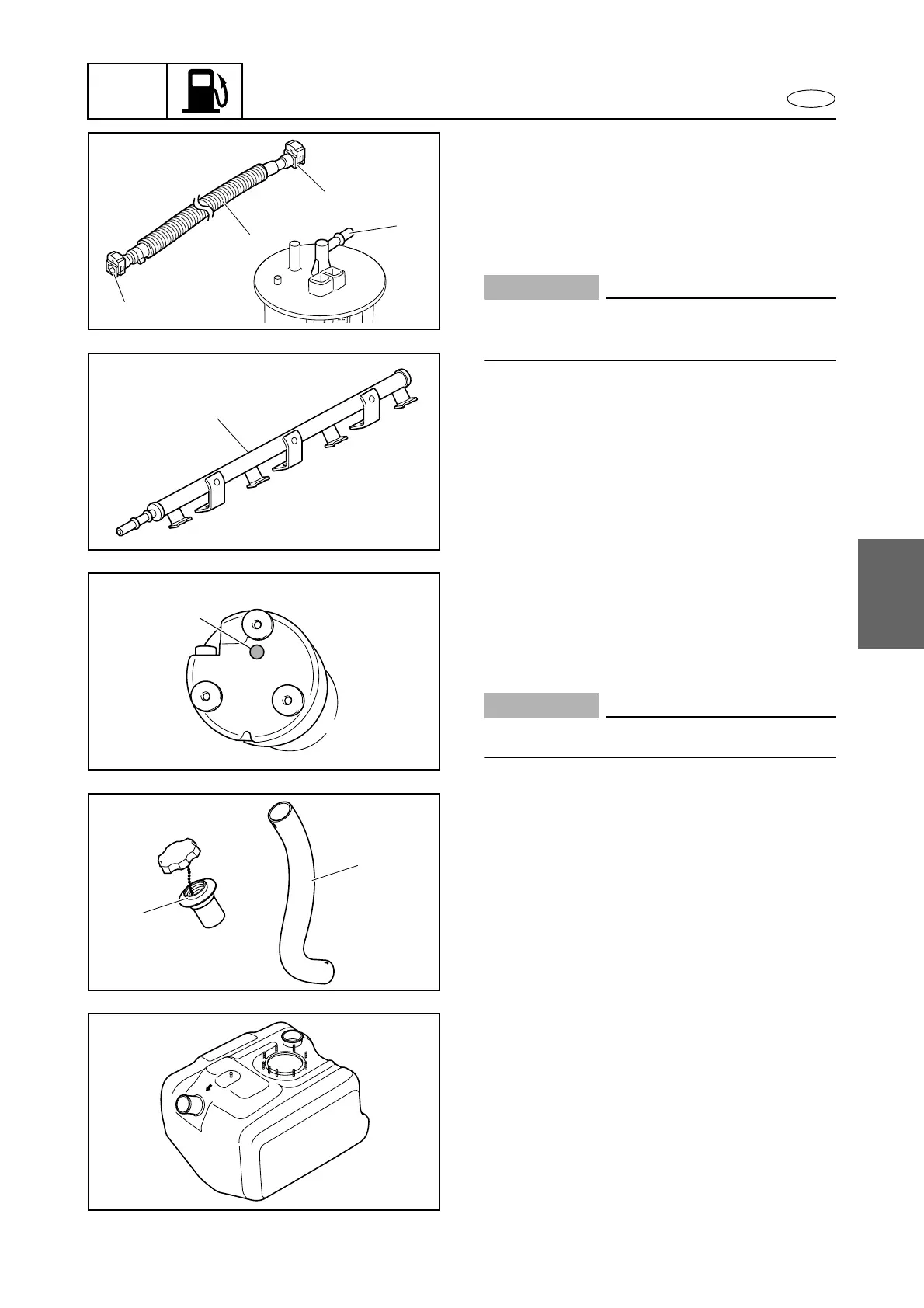

Fuel line check
1. Check:
• Fuel hose 1
• Quick connectors 2
Cracks/damage → Replace the fuel
hose assembly.
CAUTION:
Do not remove the quick connectors from
the fuel hose assembly.
• Fuel pipe 3 (fuel pump module end)
Cracks/damage → Replace the fuel
pump module assembly.
• Fuel rail 4
Cracks/damage → Replace the fuel rail.
2
3
1
2
4
Fuel pump module check
1. Check:
• Fuel pump filter 1
Clog/contaminants → Clean the fuel
pump filter with kerosene or gasoline.
CAUTION:
Do not disassemble the fuel pump module.
1
Fuel filler neck and hose check
1. Check:
• Fuel filler neck 1
Cracks/damage → Replace the fuel filler
neck.
• Fuel filler hose 2
Cracks/damage → Replace the fuel filler
hose.
2
1
Fuel tank check
1. Check:
• Fuel tank
Cracks/damage → Replace the fuel
tank.
Fuel tank, fuel pump module, and fuel hose

Yamaha WaveRunner FX SHO Specifications

General

Manufacturer	Yamaha
Model	WaveRunner FX SHO
Category	Personal Watercraft
Engine Type	4-cylinder, 4-stroke, Supercharged
Displacement	1812cc
Bore x Stroke	86mm x 78mm
Fuel Delivery	Electronic Fuel Injection
Horsepower	210 HP
Starter System	Electric
Lubrication System	Wet sump
Length	132.7 in (3.37 m)
Fuel Capacity	18.5 gal (70 L)
Oil Capacity	5.3 qt (5.0 L)
Rider Capacity	3 persons
Cooling System	Water-cooled
Width	1.23 m
Dry Weight	377 kg
