Yamaha WaveRunner FX SHO Service Manual

3-4
E
CHK
ADJ
1
2
3
4
5
6
7
8
9

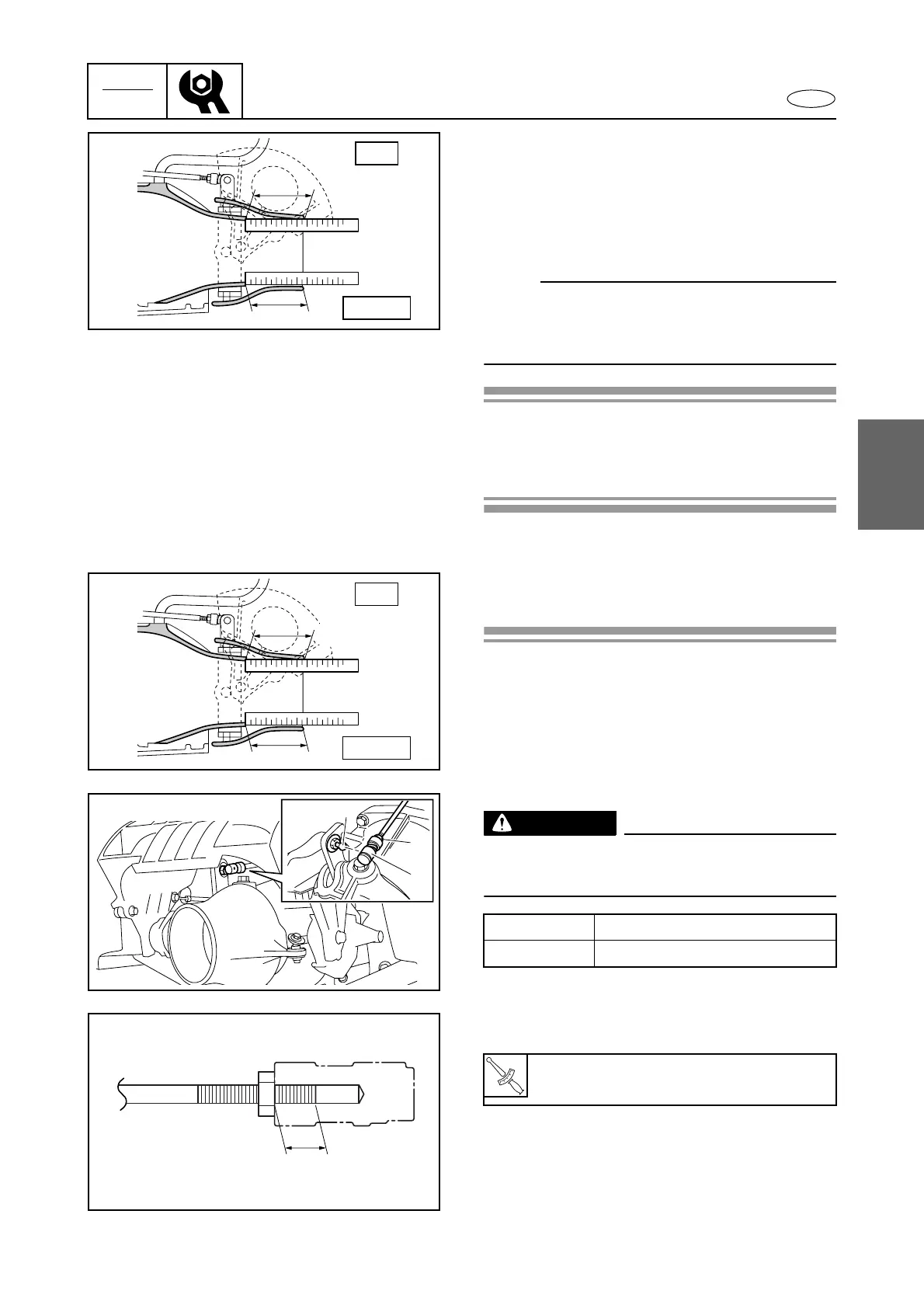

Jet thrust nozzle QSTS angle check and
adjustment
1. Check:
• Jet thrust nozzle angle set distances a
and b
Difference → Adjust the QSTS rod joint.
NOTE:
Before measuring the jet thrust nozzle QSTS
angle make sure that the steering position of
the jet thrust nozzle is centered.
Checking steps:
1. Set the QSTS grip to the neutral position.
2. Measure the jet thrust nozzle angle set
distances a and b.
a
b
DOWN
UP
2. Adjust:
• QSTS rod joint
Adjustment steps:
1. Set the QSTS grip to the neutral position.
2. Loosen the locknut 1.
3. Disconnect the QSTS rod joint 2.
4. Adjust the QSTS rod joint 2 until the
upper and lower set distances a and b
for the jet thrust nozzle are equal.
WARNING
The QSTS rod joint must be screwed in
more than 8 mm (0.31 in) c.
5. Connect the QSTS rod joint 2 to the ball
joint 3, and then tighten the locknut 1 to
the specified torque.
Turn out Distance a is increased.
Turn in Distance b is increased.
T
R
.
.
Locknut:
4 N·m (0.4 kgf·m, 3.0 ft·lb)
a
b
DOWN
UP
3
1
2
c
Control system

Yamaha WaveRunner FX SHO Specifications

General

Manufacturer	Yamaha
Model	WaveRunner FX SHO
Category	Personal Watercraft
Engine Type	4-cylinder, 4-stroke, Supercharged
Displacement	1812cc
Bore x Stroke	86mm x 78mm
Fuel Delivery	Electronic Fuel Injection
Horsepower	210 HP
Starter System	Electric
Lubrication System	Wet sump
Length	132.7 in (3.37 m)
Fuel Capacity	18.5 gal (70 L)
Oil Capacity	5.3 qt (5.0 L)
Rider Capacity	3 persons
Cooling System	Water-cooled
Width	1.23 m
Dry Weight	377 kg
