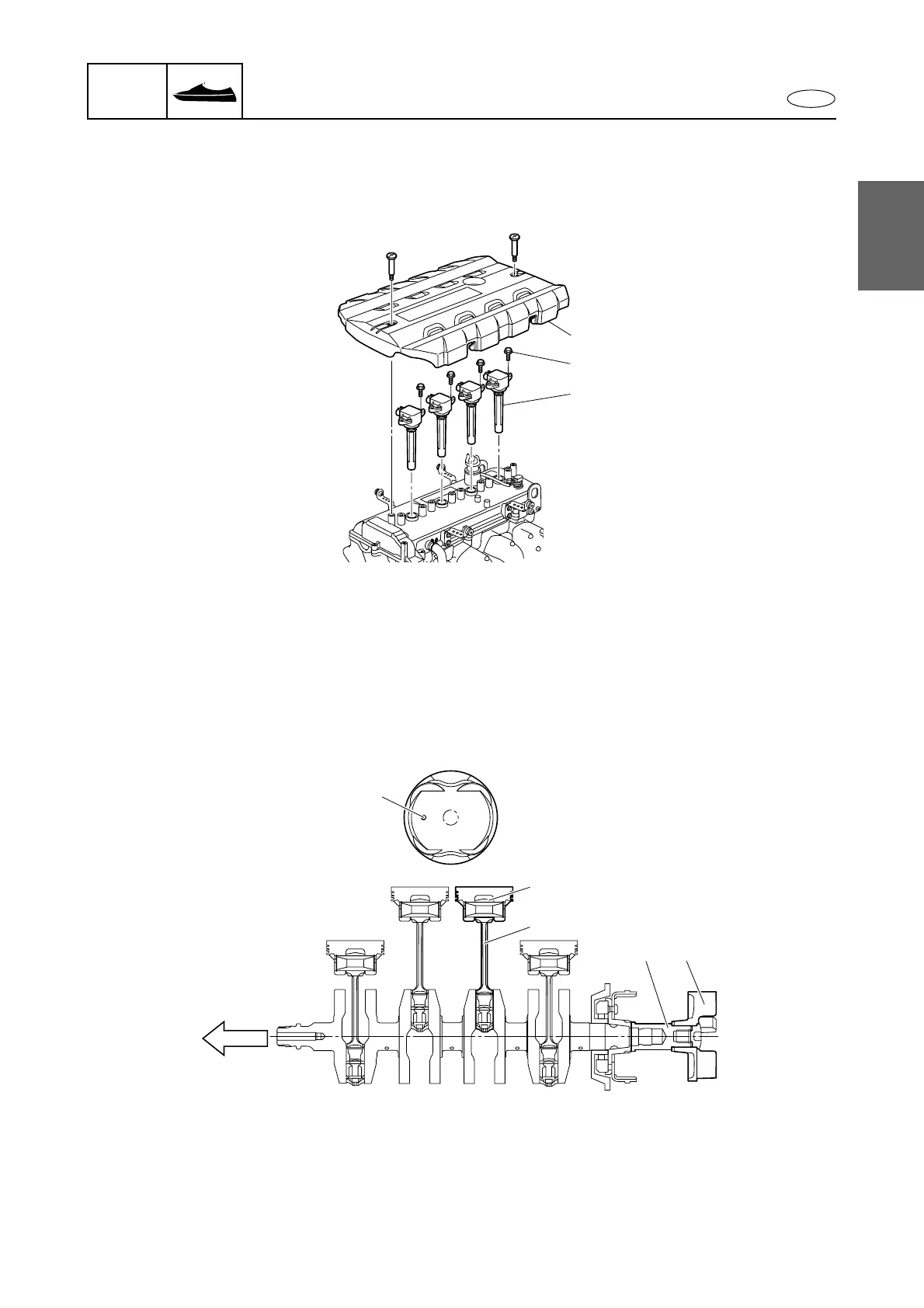

Ignition coil
The ignition coils are a direct-ignition type with a coil installed to each cylinder. The coils are
installed to the cylinder head cover using 2 bolts each, which ensures a secure installation and
waterproofing of the spark plug holes.
1 Engine cover
2 Bolt
3 Ignition coil
Piston and connecting rod
The pistons and connecting rods have been newly designed. The shape of the piston crown has
been designed to achieve the optimum compression ratio and the shape of the connecting rod has
been designed to handle the high output. Furthermore, a mark to indicate the installation direction
has been placed on the piston crown.
1 Piston
2 Drive coupling
3 Transfer shaft
4 Connecting rod
a Piston installation direction mark
1
3
2
BOW
a
1
4
23
Feature and benefit

Yamaha WaveRunner FX SHO Specifications

General

Manufacturer	Yamaha
Model	WaveRunner FX SHO
Category	Personal Watercraft
Engine Type	4-cylinder, 4-stroke, Supercharged
Displacement	1812cc
Bore x Stroke	86mm x 78mm
Fuel Delivery	Electronic Fuel Injection
Horsepower	210 HP
Starter System	Electric
Lubrication System	Wet sump
Length	132.7 in (3.37 m)
Fuel Capacity	18.5 gal (70 L)
Oil Capacity	5.3 qt (5.0 L)
Rider Capacity	3 persons
Cooling System	Water-cooled
Width	1.23 m
Dry Weight	377 kg
