E
ELEC
– +
7-47

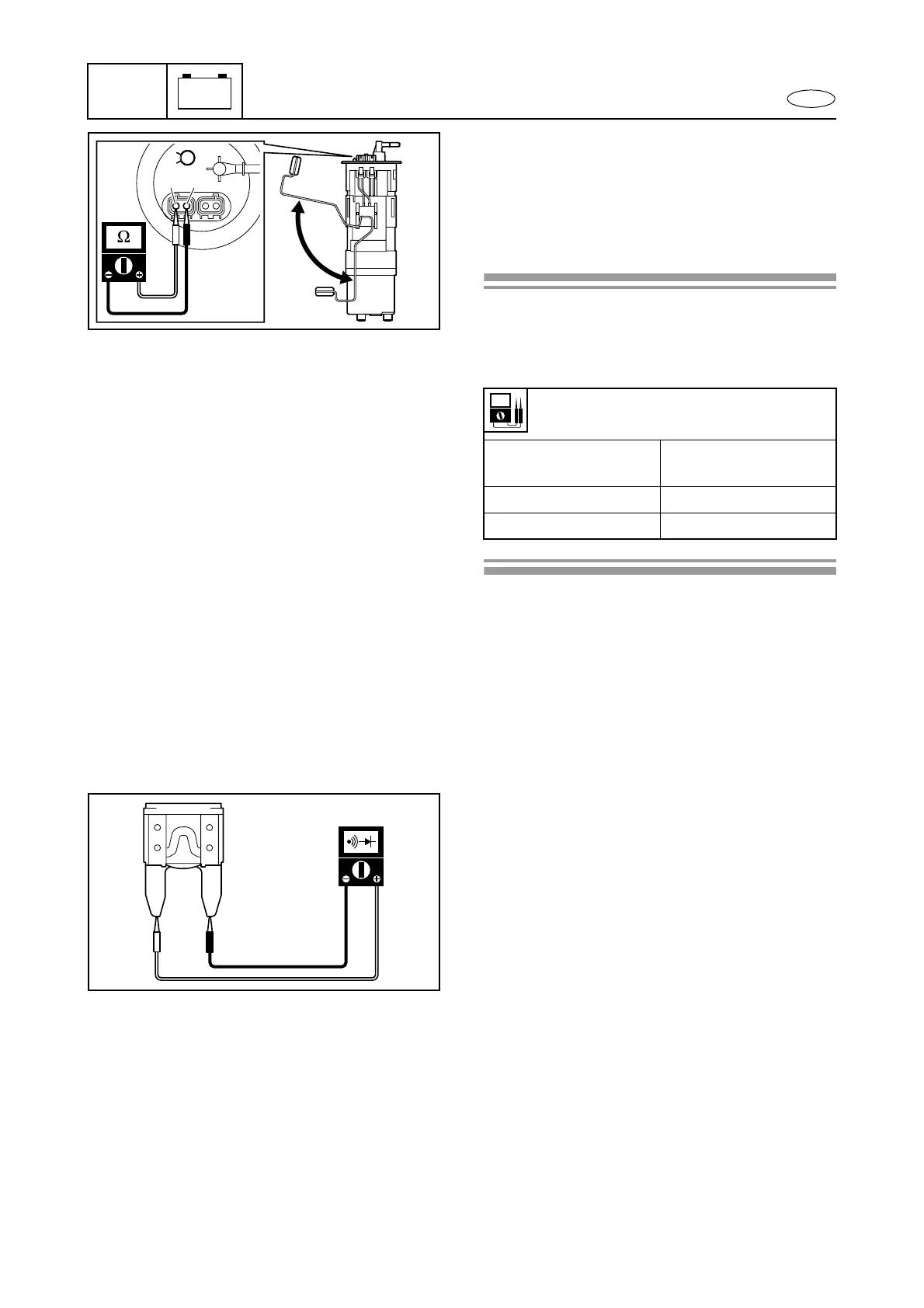

3. Measure:
• Fuel sender resistance
Out of specification → Replace the fuel
sender.
Refer to “Fuel sender removal” in Chap-
ter 4.
Measurement steps:
1. Remove the fuel pump module.
Refer to “Fuel tank removal” in Chapter 4.
2. Measure the fuel sender resistance.
Fuel sender resistance at 20 °C
(68 °F) (reference data):
Float position
Yellow (Y) –
Black (B)
Lower position È 133.5–136.5 Ω
Upper position É 5.0–7.0 Ω
Y
B
È
É
Starting system
Fuse
1. Check:
• Fuse continuity
No continuity → Replace the fuse.
Fuel system / Starting system
