Yamaha WaveRunner FX SHO Service Manual

5-87
E
POWR

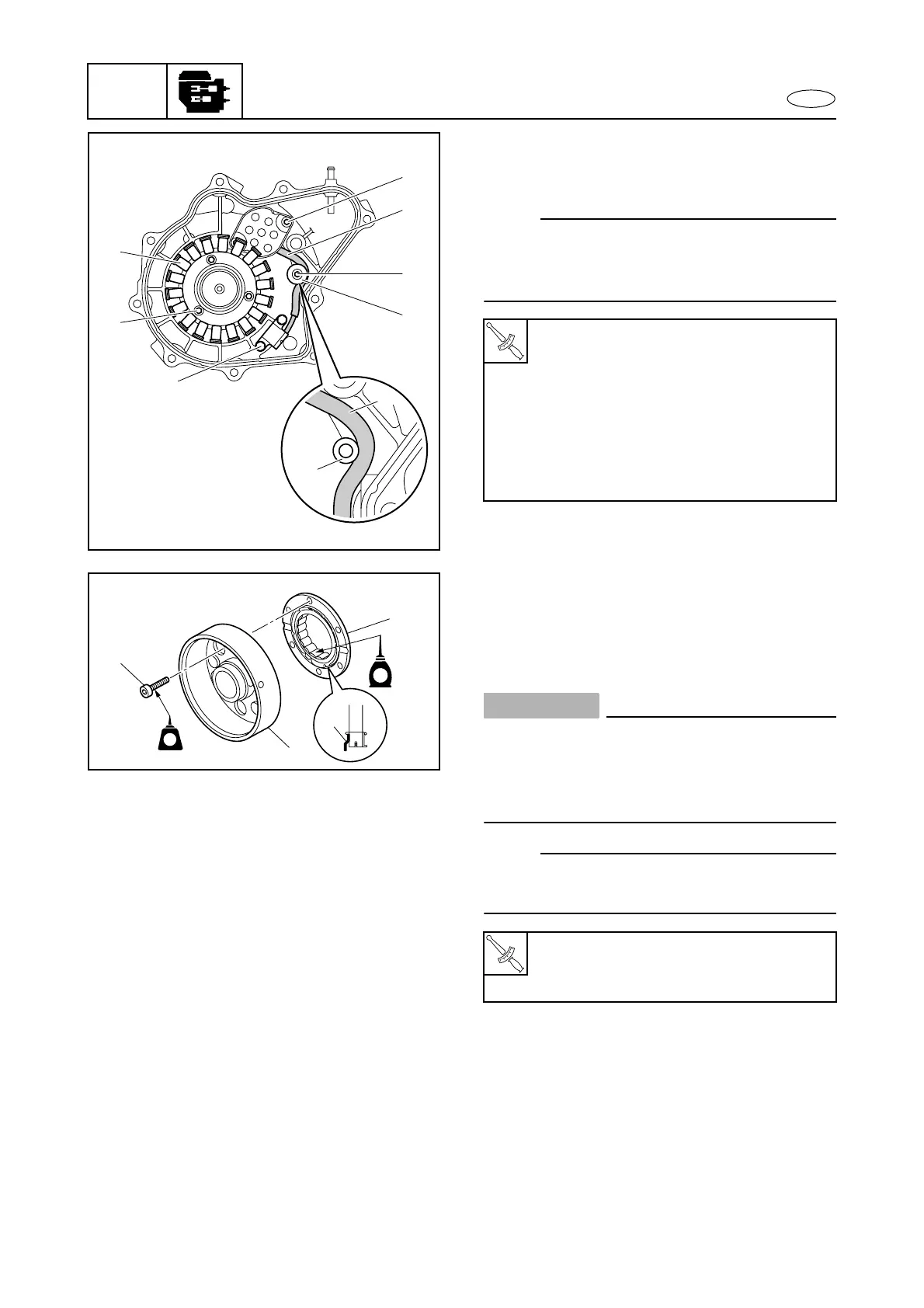

Generator cover assembly
1. Install:
• Stator coil assembly 1
NOTE:
Pass the pickup coil lead 2 between the cover
and the bolt hole a, and then hold the washer
3.
T
R
.
.
Clamp bolt 4:
15 N·m (1.5 kgf·m, 11.1 ft·lb)
Stator coil bolt 5:
15 N·m (1.5 kgf·m, 11.1 ft·lb)
Washer bolt 6:
5 N·m (0.5 kgf·m, 3.7 ft·lb)
Pickup coil bolt 7:
5 N·m (0.5 kgf·m, 3.7 ft·lb)
LOCTITE 242
7
a
1
5
4
2
2
3
6
Flywheel magneto installation
1. Install:
• Starter clutch assembly 1
• Flywheel magneto 2
• Bolts 3
CAUTION:
Make sure that the starter clutch is in-
stalled into the outer flange so that the side
a is facing toward the flywheel magneto as
shown.
NOTE:
Apply engine oil to the starter clutch rollers
before installation.
T
R
.
.
Flywheel magneto bolt:
24 N·m (2.4 kgf·m, 17.7 ft·lb)
LOCTITE 242
1
2
3
a
E
LT
242
Generator cover and flywheel magneto

Yamaha WaveRunner FX SHO Specifications

General

Manufacturer	Yamaha
Model	WaveRunner FX SHO
Category	Personal Watercraft
Engine Type	4-cylinder, 4-stroke, Supercharged
Displacement	1812cc
Bore x Stroke	86mm x 78mm
Fuel Delivery	Electronic Fuel Injection
Horsepower	210 HP
Starter System	Electric
Lubrication System	Wet sump
Length	132.7 in (3.37 m)
Fuel Capacity	18.5 gal (70 L)
Oil Capacity	5.3 qt (5.0 L)
Rider Capacity	3 persons
Cooling System	Water-cooled
Width	1.23 m
Dry Weight	377 kg
