Yamaha WaveRunner FX SHO Service Manual

6-26
E
JET
PUMP
1
2
3
4
5
6
7
8
9

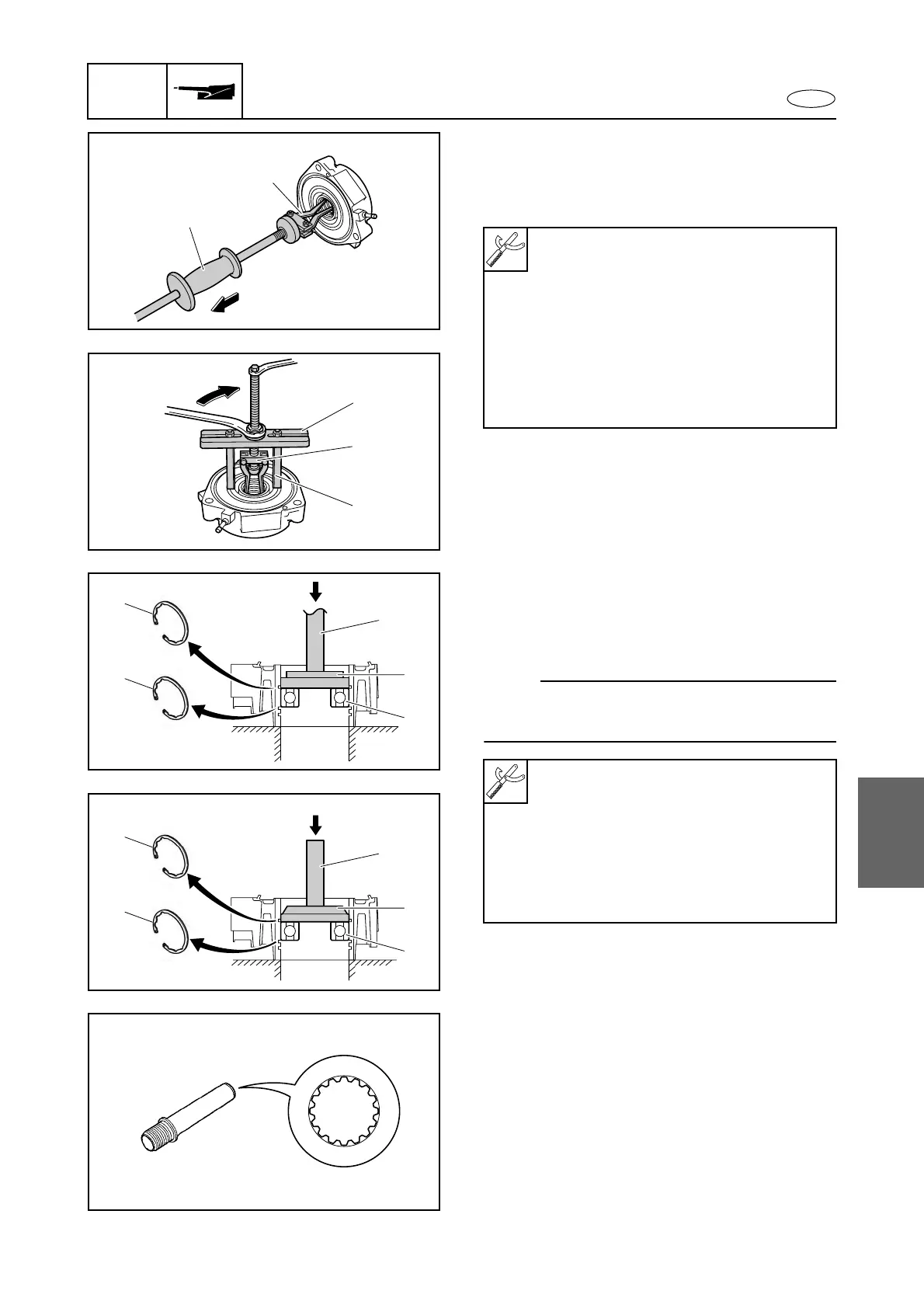

Oil seal removal
1. Remove:
• Oil seal (front)
• Oil seals (rear)
È For USA and Canada
É For worldwide
Slide hammer and adapters 1:
YB-06096
Bearing puller legs 2:
YB-06523
Stopper guide plate 3:
90890-06501
Bearing puller assembly 4:
90890-06535
Stopper guide stand 5:
90890-06538
1
2
È
3
4
5
É
Bearing removal
1. Remove:
• Circlips 1
• Bearing 2
NOTE:
Remove the circlips 1 before removing the
bearing 2.
È For USA and Canada
É For worldwide
Driver handle (large) 3:
YB-06071
Needle bearing installer 4:
YB-06434
Driver rod LS 5:
90890-06606
Bearing outer race attachment 6:
90890-06623
1
1
4
2
3
È
1
1
6
2
5
É
Intermediate drive shaft and grease
hose check
1. Check:
• Intermediate drive shaft spline
• Grease hose
Cracks/damage → Replace.
Intermediate housing
