Yamaha WaveRunner FX SHO Service Manual

2-6
E
SPEC
1
2
3
4
5
6
7
8
9
Fuel system
Connecting rod
Bearing color code 1. Brown 2. Black 3. Blue 4. Green
Small end inside diameter mm (in) 22.015–22.028 (0.8667–0.8672)

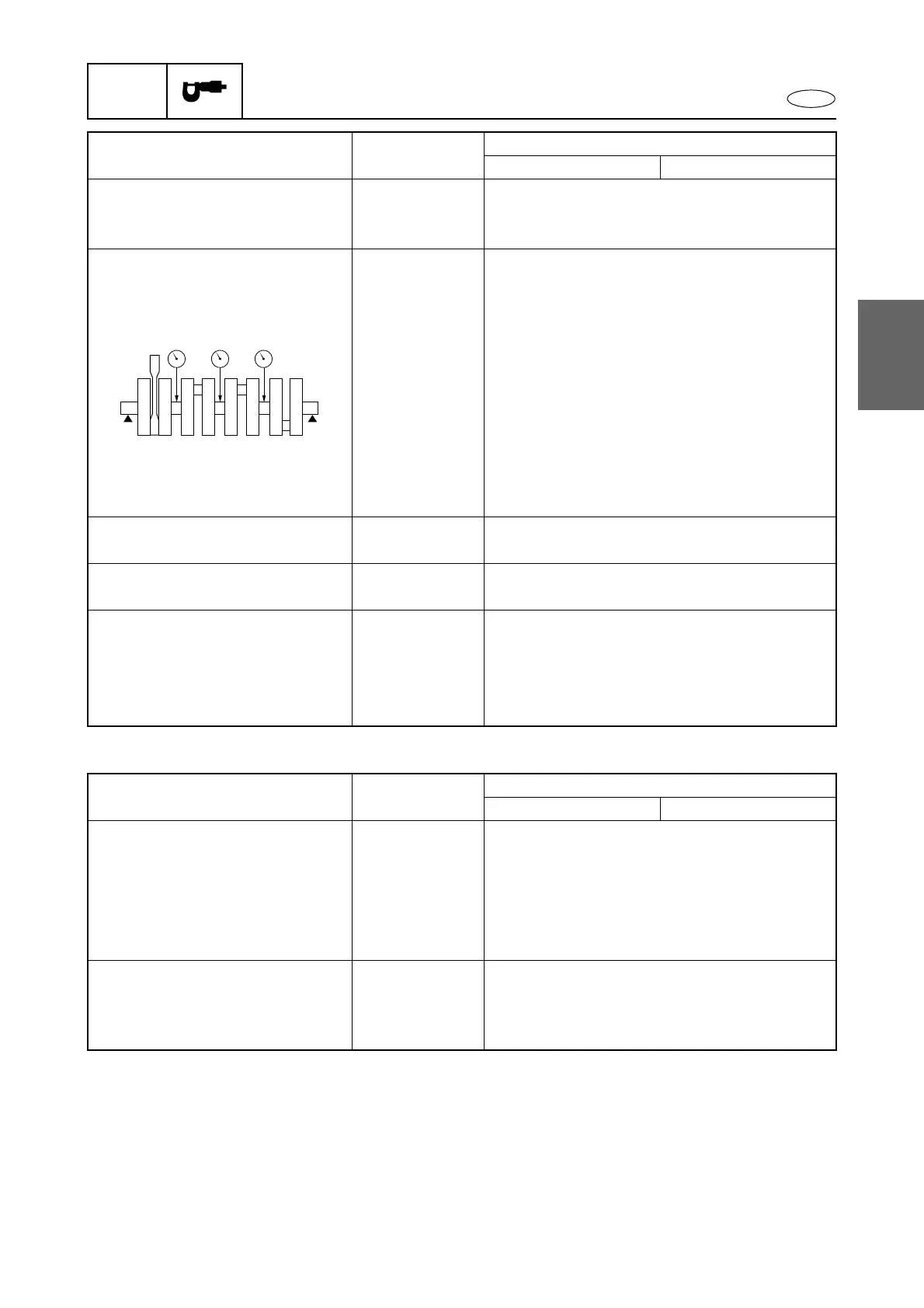

Crankshaft
Crankshaft journal diameter mm (in) 39.976–40.000 (1.5739–1.5748)
Crankshaft pin diameter mm (in) 41.976–42.000 (1.6526–1.6535)
Crankshaft runout limit mm (in) 0.03 (0.0012)
Crankshaft pin oil clearance mm (in) 0.020–0.056 (0.0008–0.0022)
Crankshaft journal oil clearance mm (in) 0.024–0.053 (0.0009–0.0021)
Bearing color code 1. Brown 2. Black 3. Blue 4. Green 5. Yellow
Oil filter
Oil filter type Cartridge type
Oil pump
Oil pump type Trochoid
Thermostat
Opening temperature
@ 0.05 mm (0.002 in) °C (°F) 48–52 (118–126)
Fully open temperature °C (°F) 60 (140)
Valve open lower limit mm (in) More than 4.3 (0.17)
Item Unit
Model
FX SHO
FX Cruiser SHO
Throttle body
Type/quantity IM54-3D04/1
Manufacturer Mikuni
ID mark 6S5 00
Trolling speed r/min 1,150–1,350
Throttle cable installation length mm (in) 18.4 ± 1.0 (0.72 ± 0.04)
Fuel pump
Pump type Electrical
Fuel pressure kPa
(kgf/cm
2
, psi)
345–370 (3.45–3.70, 49.1–52.6)
Item Unit
Model
FX SHO
FX Cruiser SHO
Maintenance specifications

Yamaha WaveRunner FX SHO Specifications

General

Manufacturer	Yamaha
Model	WaveRunner FX SHO
Category	Personal Watercraft
Engine Type	4-cylinder, 4-stroke, Supercharged
Displacement	1812cc
Bore x Stroke	86mm x 78mm
Fuel Delivery	Electronic Fuel Injection
Horsepower	210 HP
Starter System	Electric
Lubrication System	Wet sump
Length	132.7 in (3.37 m)
Fuel Capacity	18.5 gal (70 L)
Oil Capacity	5.3 qt (5.0 L)
Rider Capacity	3 persons
Cooling System	Water-cooled
Width	1.23 m
Dry Weight	377 kg
