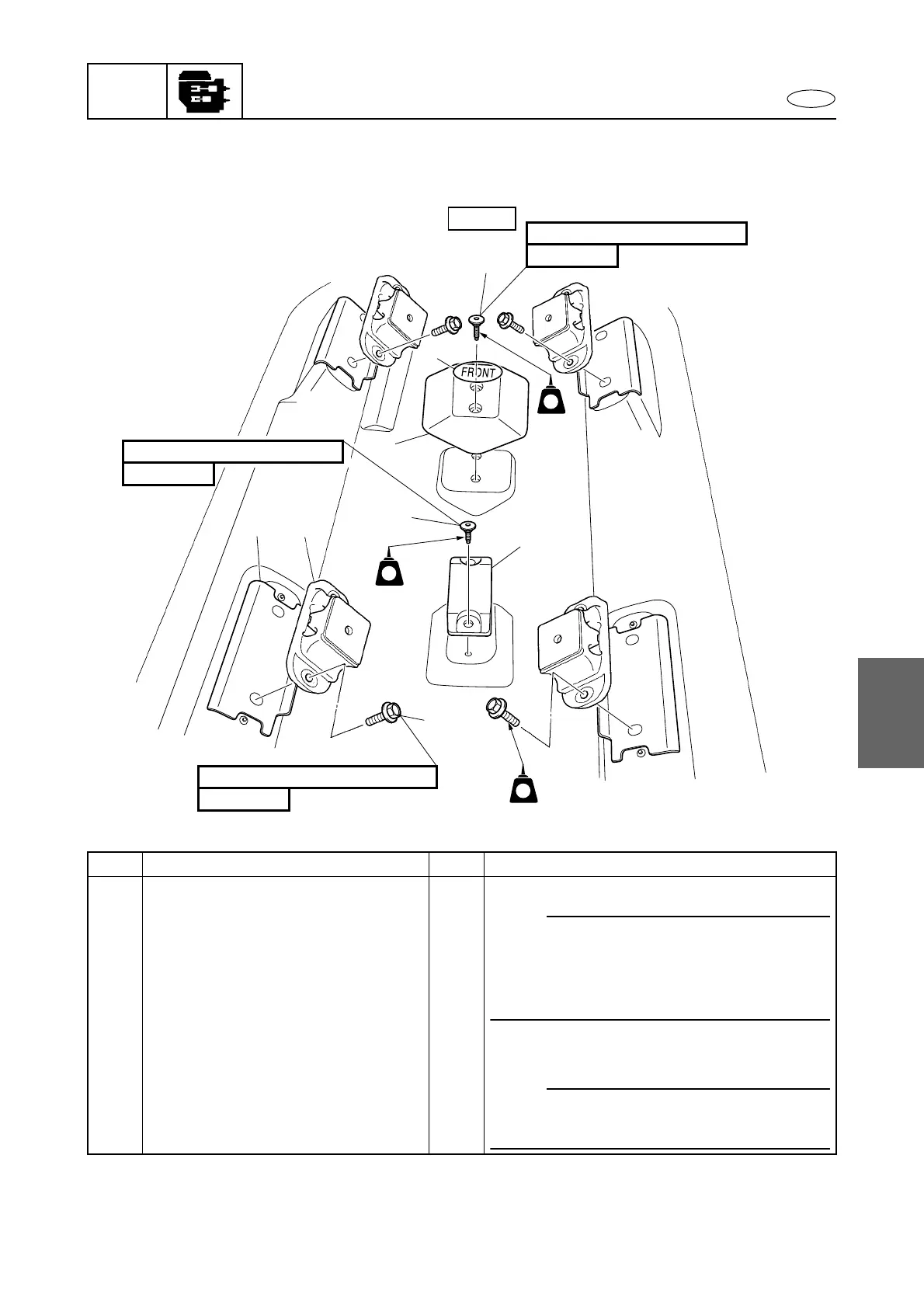

Engine mount removal
Step
Procedure/Part name
Q’ty Service points
1Bolt 8
2 Engine mount 4
NOTE:
• Make a note of the position of each engine
mount so that it can be installed in its origi-
nal place.
• Be sure to adjust the coupling clearance.
3 Liner 4
4Bolt 2
5 Damper 1 1
NOTE:
Install the damper 1 with the mark a toward
the bow.
4
6
1
5
7
3
2
a
LT
572
LT
572
LT
572
6 × 20 mm
6 N
·
m (0.6 kgf
·
m, 4.4 ft
·
Ib)
6 × 12 mm
6 N
·
m (0.6 kgf
·
m, 4.4 ft
·
Ib)
8 × 35 mm
17 N
·
m (1.7 kgf
·
m, 12.5 ft
·
Ib)
BOW
Engine unit

Yamaha WaveRunner FX SHO Specifications

General

Manufacturer	Yamaha
Model	WaveRunner FX SHO
Category	Personal Watercraft
Engine Type	4-cylinder, 4-stroke, Supercharged
Displacement	1812cc
Bore x Stroke	86mm x 78mm
Fuel Delivery	Electronic Fuel Injection
Horsepower	210 HP
Starter System	Electric
Lubrication System	Wet sump
Length	132.7 in (3.37 m)
Fuel Capacity	18.5 gal (70 L)
Oil Capacity	5.3 qt (5.0 L)
Rider Capacity	3 persons
Cooling System	Water-cooled
Width	1.23 m
Dry Weight	377 kg
