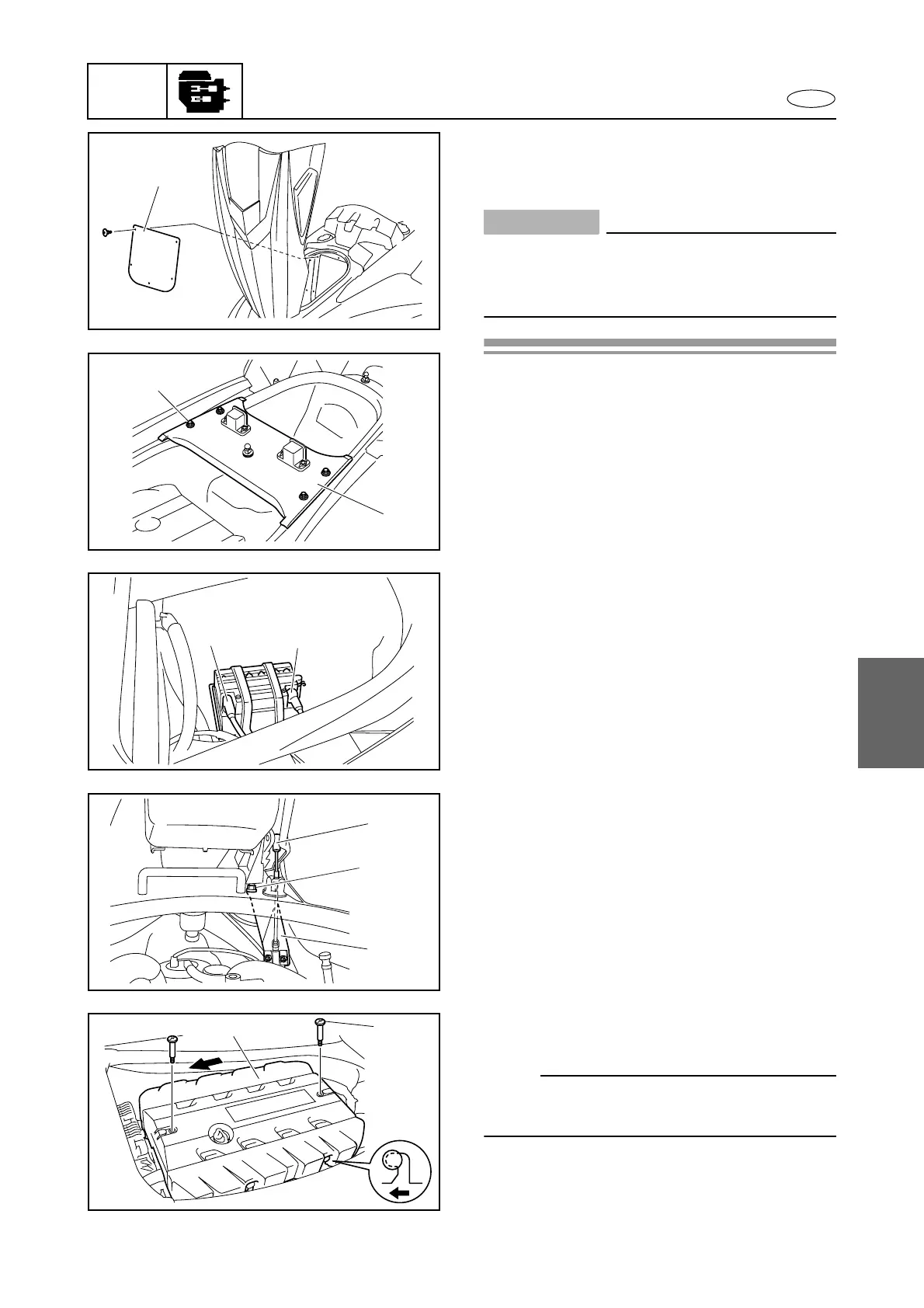

Engine unit removal
1. Remove:
• Engine unit
CAUTION:
Before removing the engine, be sure to
take adequate measures to protect the
deck opening from damage.
Removal steps:
1. Extract the engine oil.
Refer to “Engine oil change” in Chapter 3.
2. Remove the service lid 1.
3. Remove the deck beam bolts 2 and nuts,
and then remove the deck beam 3.
1
3
2
4. Disconnect the negative battery cable 4
and positive battery cable 5 from the bat-
tery.
5
4
5. Disconnect the shift cable joint 6, and
then remove the shift cable bracket nuts
7.
6. Remove the shift cable bracket 8.
6
8
7
7. Remove the engine cover bolts 9, and
then remove the engine cover 0.
NOTE:
Slide the engine cover rearward, and then lift
the cover to remove it.
0
9
Engine unit
