Yamaha WaveRunner FX SHO Service Manual

5-29
E
POWR
Step
Procedure/Part name
Q’ty Service points
11 Plastic tie 1
12 Throttle body assembly coupler 1
CAUTION:
Do not disconnect the throttle body as-
sembly coupler a.
13 Intake air pressure sensor coupler 1
14 Clamp 3
15 Earth plate coupler 1 1
16 Earth plate coupler 2 1
17 Oil pressure switch coupler 1
18 Nut/washer 1/1
19 Starter motor cable 1
SG
SG
19
18
20
21
23
24
27
28
25
26
22
11
10
2
16
13
15
17
8
12
6
9
7
4
5
1
3
14
26
12
24 2825
A
A
B
B
a
AA
18 N
·
m (1.8
m
·
kg, 13.3 ft
·
Ib)
5 N
·
m (0.5 kgf
·
m, 3.7 ft
·
Ib)
8 × 30 mm

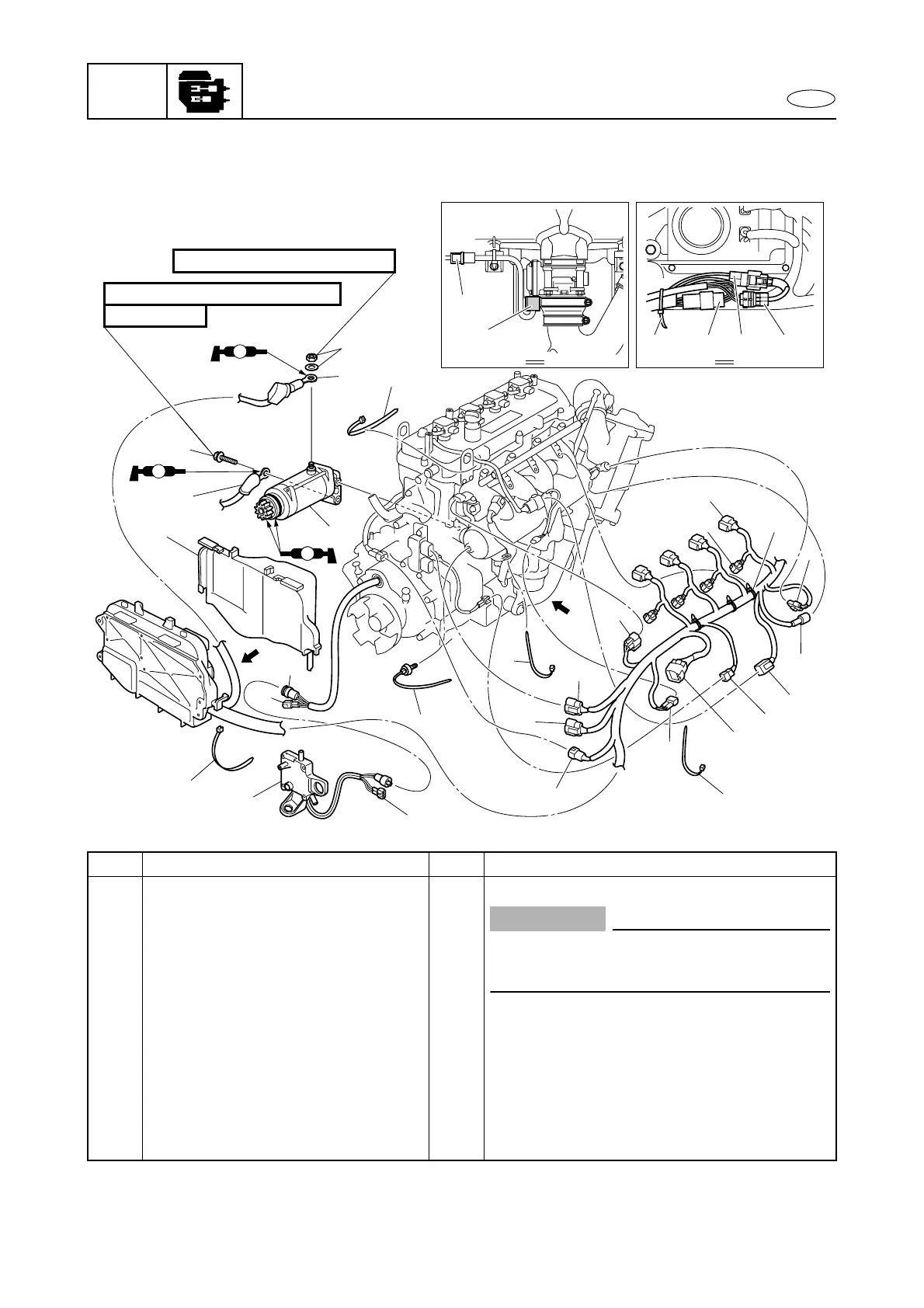

Electrical box and starter motor

Yamaha WaveRunner FX SHO Specifications

General

Manufacturer	Yamaha
Model	WaveRunner FX SHO
Category	Personal Watercraft
Engine Type	4-cylinder, 4-stroke, Supercharged
Displacement	1812cc
Bore x Stroke	86mm x 78mm
Fuel Delivery	Electronic Fuel Injection
Horsepower	210 HP
Starter System	Electric
Lubrication System	Wet sump
Length	132.7 in (3.37 m)
Fuel Capacity	18.5 gal (70 L)
Oil Capacity	5.3 qt (5.0 L)
Rider Capacity	3 persons
Cooling System	Water-cooled
Width	1.23 m
Dry Weight	377 kg
