Yamaha WaveRunner FX SHO Service Manual

5-33
E
POWR
Step
Procedure/Part name
Q’ty Service points
20 Bolt/washer 2/2
21 Bolt 3
22 Bolt 1
23 Supercharger assembly 1
24 O-ring 1
Not reusable
25 Dowel pin 2
Reverse the removal steps for installation.
20
3
2
7
1
4
1
6
5
1
8
14
12
9
19
18
17
11
9
15
10
13
16
25
20
21
22
23
24
20 N
·
m (2.0 kgf
·
m, 14.8 ft
·
Ib)
8 × 35 mm
20 N
·
m (2.0 kgf
·
m, 14.8 ft
·
Ib)
8 × 65 mm
4 N
·
m (0.4 kgf
·
m, 3.0 ft
·
Ib)
2nd 42 N
·
m (4.2 kgf
·
m, 31.0 ft
·
Ib)
1st 23 N
·
m (2.3 kgf
·
m, 17.0 ft
·
Ib)
LT
242
LT
242
LT
242
LT
242
42 N
·
m (4.2 kgf
·
m, 31.0 ft
·
Ib)
10 × 80 mm
42 N
·
m (4.2 kgf
·
m, 31.0 ft
·
Ib)
10 × 50 mm
3 N
·
m (0.3 kgf
·
m, 2.2 ft
·
Ib)
10 N
·
m (1.0 kgf
·
m, 7.4 ft
·
Ib)
6 × 65 mm
LT
242
2nd 20 N
·
m (2.0 kgf
·
m, 14.8 ft
·
Ib)
1st 10 N
·
m (1.0 kgf
·
m, 7.4 ft
·
Ib)
2nd 42 N
·
m (4.2 kgf
·
m, 31.0 ft
·
Ib)
1st 23 N
·
m (2.3 kgf
·
m, 17.0 ft
·
Ib)
10 × 45 mm

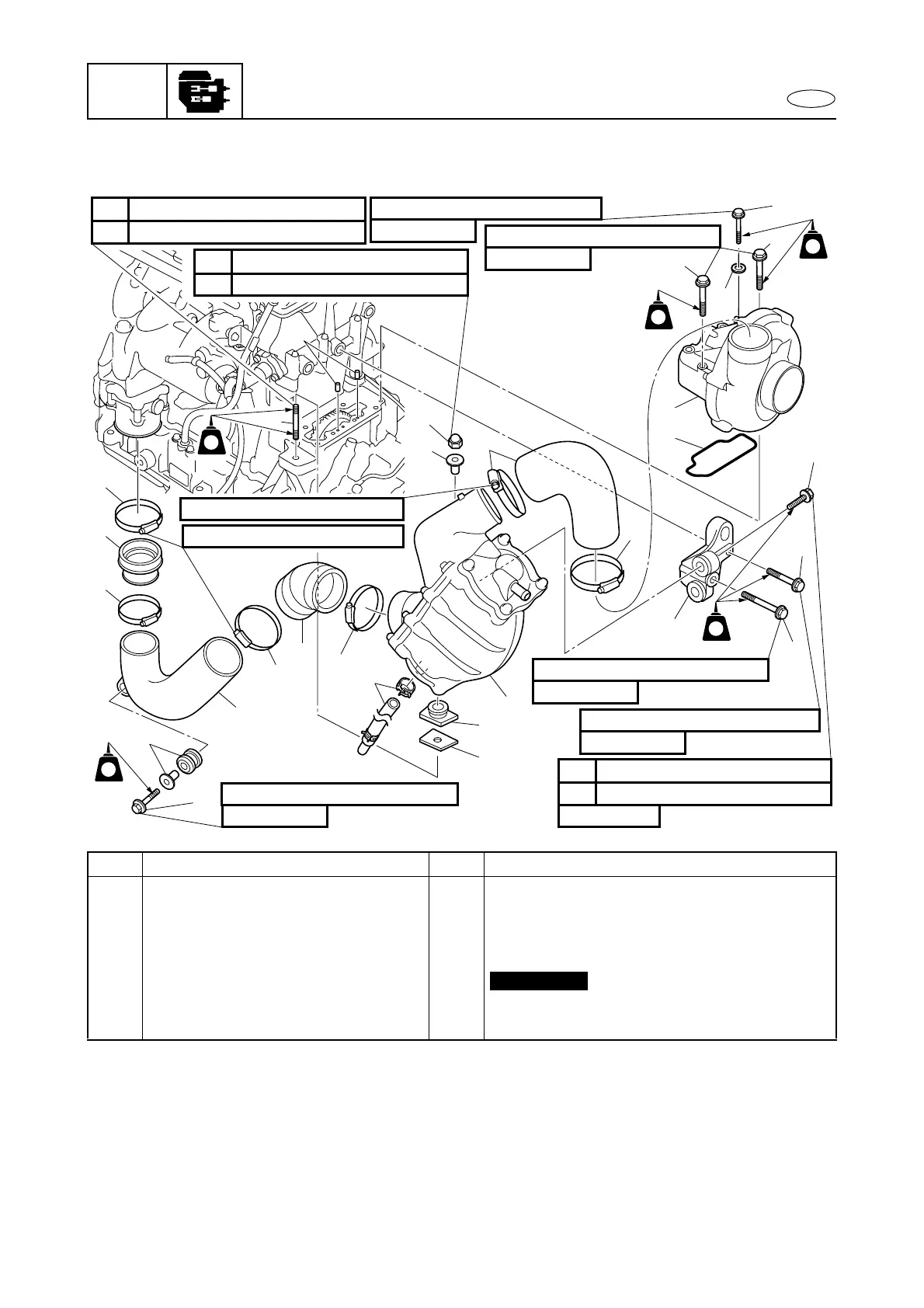

Air cooler, supercharger, and throttle body assembly

Yamaha WaveRunner FX SHO Specifications

General

Manufacturer	Yamaha
Model	WaveRunner FX SHO
Category	Personal Watercraft
Engine Type	4-cylinder, 4-stroke, Supercharged
Displacement	1812cc
Bore x Stroke	86mm x 78mm
Fuel Delivery	Electronic Fuel Injection
Horsepower	210 HP
Starter System	Electric
Lubrication System	Wet sump
Length	132.7 in (3.37 m)
Fuel Capacity	18.5 gal (70 L)
Oil Capacity	5.3 qt (5.0 L)
Rider Capacity	3 persons
Cooling System	Water-cooled
Width	1.23 m
Dry Weight	377 kg
