5-62
E
POWR
1
2
3
4
5
6
7
8
9

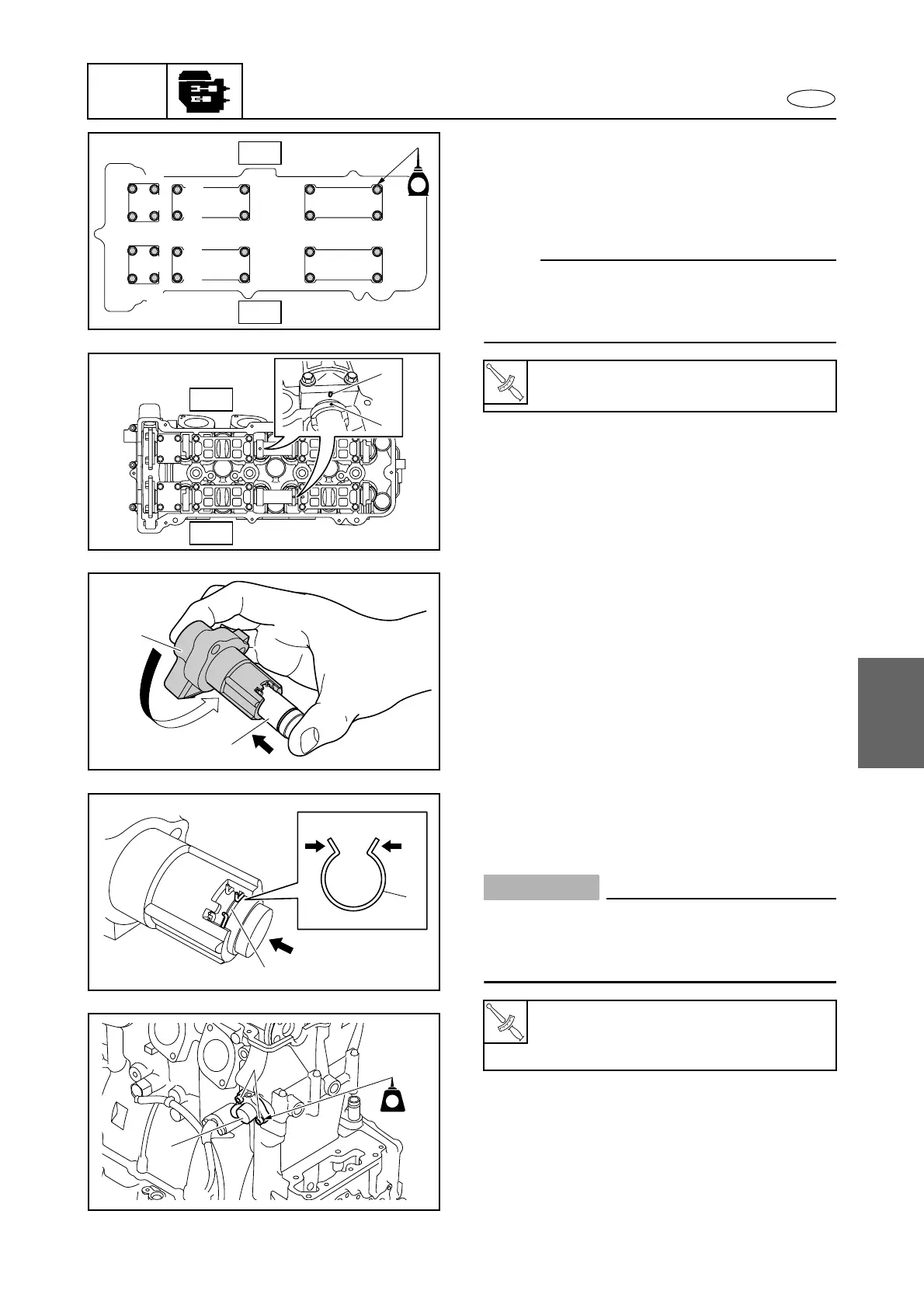

4. Install the exhaust camshaft caps, intake
camshaft caps, and bolts.
5. Gradually tighten the camshaft cap bolts to
the specified torque in the sequence
shown.
NOTE:
• Apply engine oil to the threads of the cam-
shaft cap bolts.
• Make sure to keep the camshafts level.
6. Install the timing chain guide (exhaust
side).
7. Remove the wire from the timing chain.
8. Check that the punch marks c on the
camshafts are aligned with the alignment
marks e on the camshaft caps.
9. While pushing the timing chain tensioner
rod 5, turn the timing chain tensioner
housing 6 in direction È until the groove
f in the tensioner rod is aligned with the
snap ring.
10. While squeezing the end of the snap ring
7 so that it fits into the groove f in the
timing chain tensioner rod 5, slowly
release the tensioner rod until it is locked
in place.
11. Install a new gasket and the timing chain
tensioner 8 onto the cylinder block, and
then tighten the timing chain tensioner
bolts 9 to the specified torque.
CAUTION:
Do not reuse the gasket, always replace it
with a new one.
• Tighten the bolts 9 evenly.
T
R
.
.
Camshaft cap bolt:
16 N·m (1.6 kgf·m, 11.8 ft·lb)
T
R
.
.
Timing chain tensioner bolt:
10 N·m (1.0 kgf·m, 7.4 ft·lb)
LOCTITE 572
E
7
6
4
4
9
9
5
5
8
7
3
36
0
0
8
B
B
A
A
1
1
2
2
IN
EX
e
c
EX
IN
È
6
5
7
f
9
8
LT
572
LT
Camshaft
