Yamaha WaveRunner FX SHO Service Manual

5-110
E
POWR
1
2
3
4
5
6
7
8
9

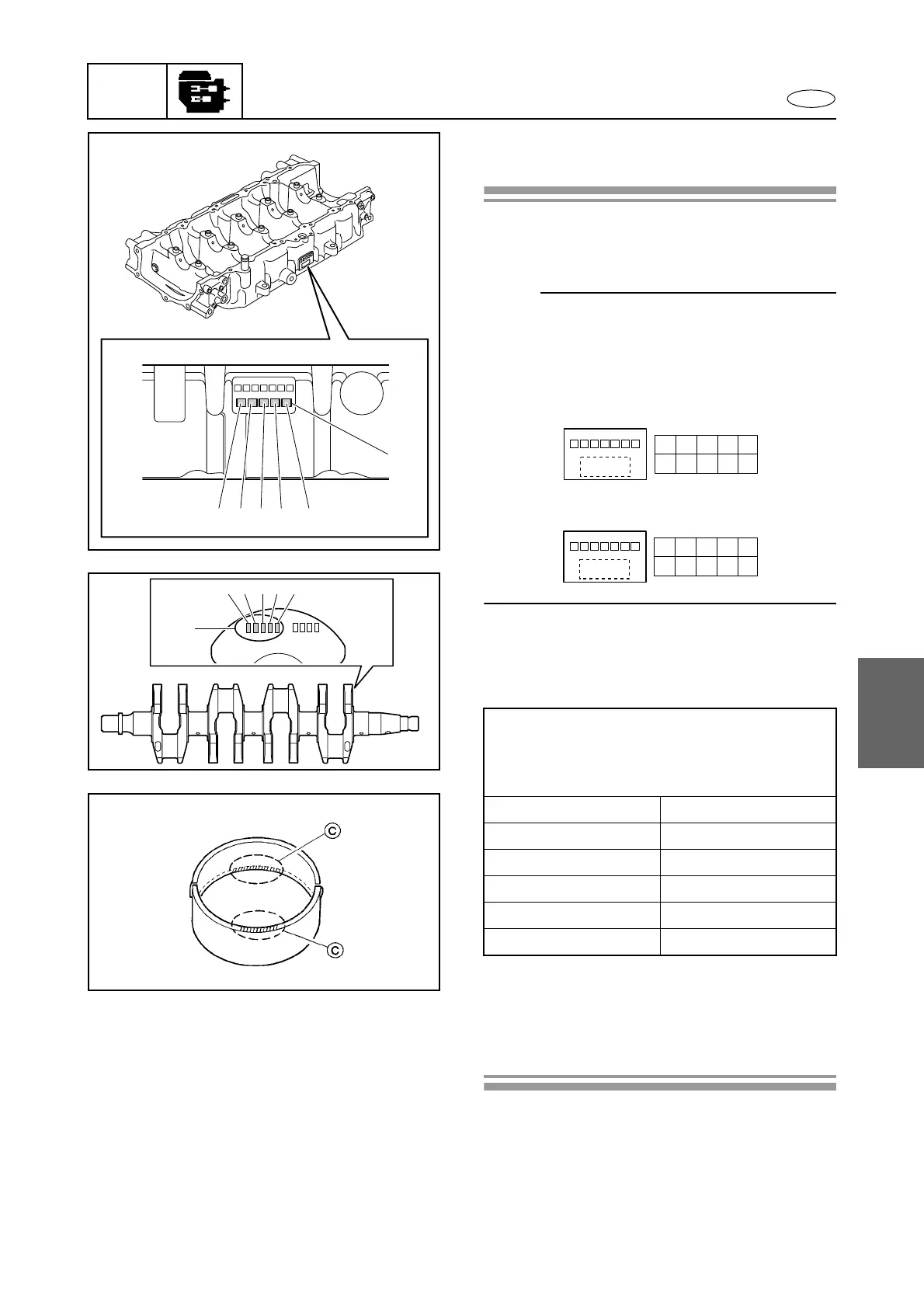

2. Select:
• Crankshaft main journal bearing
Selecting steps:
1. Check the crankcase journal size number
a on the crankcase.
NOTE:
If the crankcase journal sizes are the same at
all positions, the size number a is stamped
only at the “J1” position.
Example:
If “J1”–“J5” are different:
If “J1”–“J5” are the same:
2. Check the crankshaft journal size number
b on crankshaft web.
3. Select the suitable color c for main bear-
ing.
Example:
“J1” crankcase journal size number “5”
“J1” crankshaft journal size number “2”
5 – 2 = 3
Select the size “3”, “blue” main bearing.
Calculation formula:
Main bearing size number =
crankcase journal size number a –
crankshaft journal size number b
Bearing size number Bearing color c
1Brown
2Black
3Blue
4Green
5Yellow
J1 J2 J3 J4 J5
a
J1
5
J2
5
J3
5
J4
4
J5
5
55545
J1
5
J2
5
J3
5
J4
5
J5
5
5
P
b
J4 J5J3J2J1
J
J3
J4
J5
J2
J1
Crankcase, connecting rod, and piston

Yamaha WaveRunner FX SHO Specifications

General

Manufacturer	Yamaha
Model	WaveRunner FX SHO
Category	Personal Watercraft
Engine Type	4-cylinder, 4-stroke, Supercharged
Displacement	1812cc
Bore x Stroke	86mm x 78mm
Fuel Delivery	Electronic Fuel Injection
Horsepower	210 HP
Starter System	Electric
Lubrication System	Wet sump
Length	132.7 in (3.37 m)
Fuel Capacity	18.5 gal (70 L)
Oil Capacity	5.3 qt (5.0 L)
Rider Capacity	3 persons
Cooling System	Water-cooled
Width	1.23 m
Dry Weight	377 kg
