Yamaha WaveRunner FX SHO Service Manual

5-112
E
POWR
1
2
3
4
5
6
7
8
9

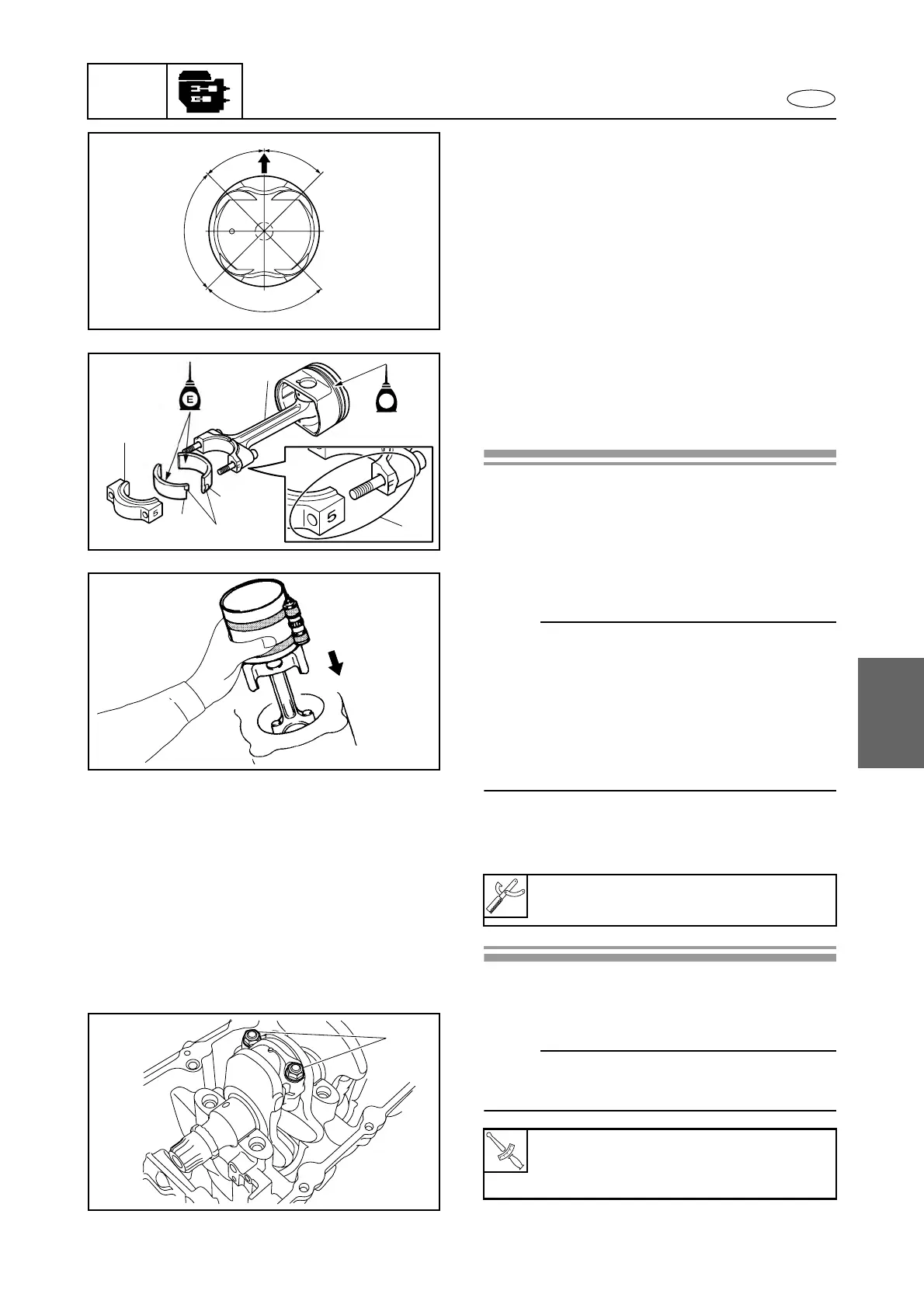

3. Offset:
• Piston ring end gap
a Top ring, oil ring expander spacer
b 2nd ring
c Upper oil ring rail
d Lower oil ring rail
È Intake side
b
d
c
a
È
90˚
45˚
45˚
90˚
4. Install:
• Connecting rod bearings 1
• Connecting rod cap 2
• Connecting rod assembly 3
Installation steps:
1. Clean the bearings and connecting rod big
end.
2. Install the upper bearing into the connect-
ing rod assembly 3 and lower bearing into
the connecting rod cap 2.
NOTE:
• Install the connecting rod bearings in their
original positions.
• Insert the projections a of the bearings into
the slots in the connecting rod cap and con-
necting rod.
• Align the characters b on the connecting rod
cap and connecting rod.
3. While compressing the piston rings with
the special service tool, install the con-
necting rod assembly into the cylinder.
5. Tighten:
• Connecting rod nuts 1
NOTE:
Use a commercially available angle gauge to
tighten the nuts to the specified angle.
Piston ring compressor:
YM-08037/90890-05158
T
R
.
.
Connecting rod nut:
1st: 51 N·m (5.1 kgf·m, 37.6 ft·lb)
2nd: 90°
E
3
2
a
b
1
1
1
Crankcase, connecting rod, and piston

Yamaha WaveRunner FX SHO Specifications

General

Manufacturer	Yamaha
Model	WaveRunner FX SHO
Category	Personal Watercraft
Engine Type	4-cylinder, 4-stroke, Supercharged
Displacement	1812cc
Bore x Stroke	86mm x 78mm
Fuel Delivery	Electronic Fuel Injection
Horsepower	210 HP
Starter System	Electric
Lubrication System	Wet sump
Length	132.7 in (3.37 m)
Fuel Capacity	18.5 gal (70 L)
Oil Capacity	5.3 qt (5.0 L)
Rider Capacity	3 persons
Cooling System	Water-cooled
Width	1.23 m
Dry Weight	377 kg
