Yamaha WaveRunner FX SHO Service Manual

E
ELEC
– +
1
2
3
4
5
6
7
8
9

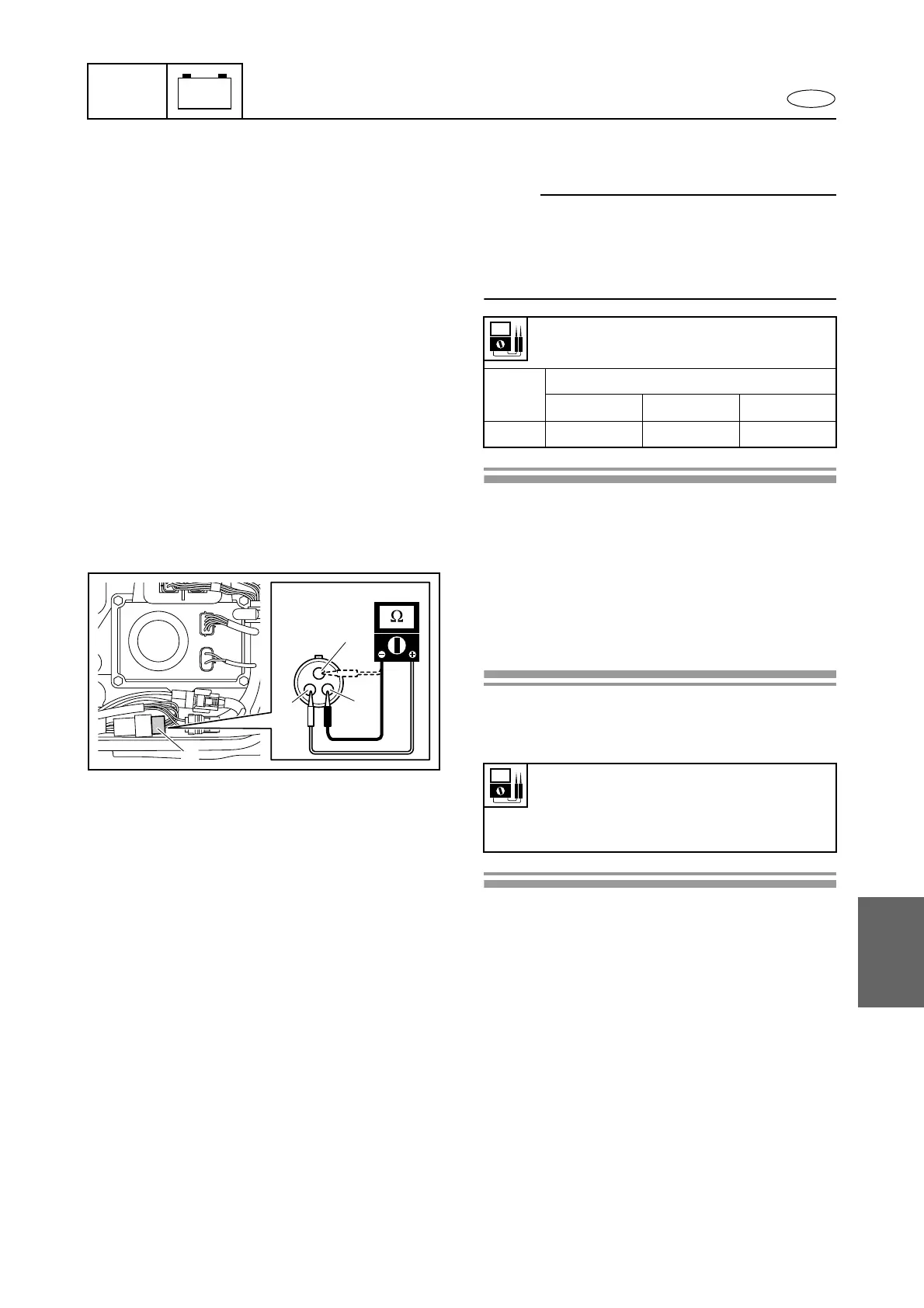

7-16
3. Measure the stator coil output peak volt-
age.
NOTE:
To crank the engine, connect the engine shut-
off cord (lanyard) to the engine shut-off switch,
and then push the engine start switch and
engine stop switch simultaneously.
Stator coil output peak voltage:
Green (G) – Green (G)
r/min
Unloaded
Cranking 2,000 3,500
V 8.4 42.7 74.0
2. Measure:
• Stator coil resistance
Out of specification → Replace the sta-
tor coil assembly.
Measurement steps:
1. Disconnect the stator coil coupler 1.
2. Measure the stator coil resistance.
Stator coil resistance at 20 °C (68 °F)
(reference data):
Green (G) – Green (G)
0.31–0.38 Ω
G
GG
1
Charging system

Yamaha WaveRunner FX SHO Specifications

General

Manufacturer	Yamaha
Model	WaveRunner FX SHO
Category	Personal Watercraft
Engine Type	4-cylinder, 4-stroke, Supercharged
Displacement	1812cc
Bore x Stroke	86mm x 78mm
Fuel Delivery	Electronic Fuel Injection
Horsepower	210 HP
Starter System	Electric
Lubrication System	Wet sump
Length	132.7 in (3.37 m)
Fuel Capacity	18.5 gal (70 L)
Oil Capacity	5.3 qt (5.0 L)
Rider Capacity	3 persons
Cooling System	Water-cooled
Width	1.23 m
Dry Weight	377 kg
