Yamaha WaveRunner FX SHO Service Manual

E
ELEC
– +
7-21
2. Check:
• Thermoswitch continuity
(at the specified temperatures)
Out of specification → Replace the ther-
moswitch.

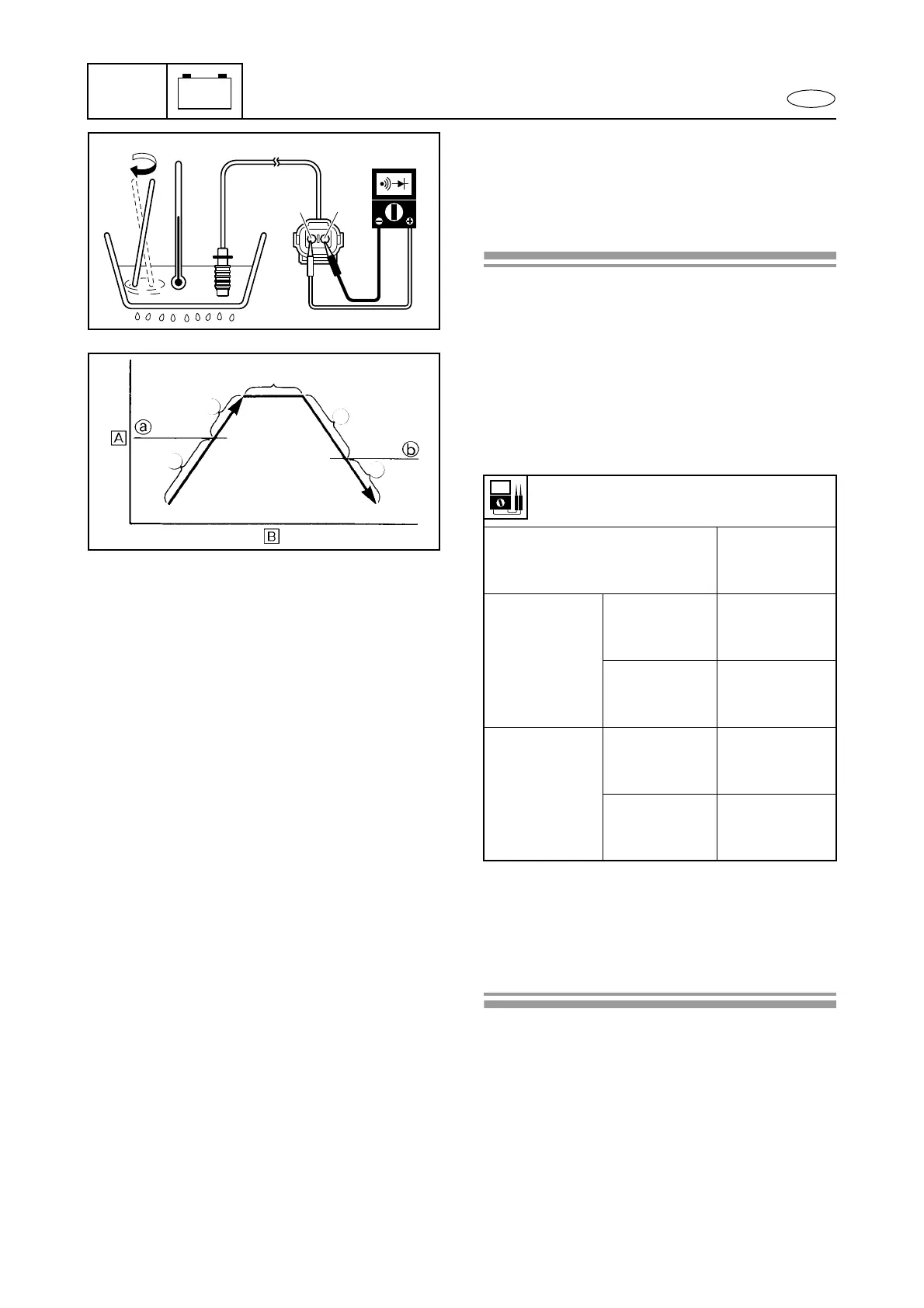

Checking steps:
1. Remove the thermoswitch.
Refer to “Oil separator tank and oil pan
removal” in Chapter 5.
2. Suspend the thermoswitch in a container
filled with water.
3. Slowly heat the water.
4. Check the continuity when the specified
temperatures are reached.
a 94–100 °C (201–212 °F)
b 80–94 °C (176–201 °F)
c No continuity
d Continuity
È Temperature
É Time
Thermoswitch continuity:
Pink (P) – Black/orange (B/O)
Temperature
(reference data)
Pink (P) –
Black/orange
(B/O)
Increasing
Below
94–100 °C
(201–212 °F)
No continuity
Above
94–100 °C
(201–212 °F)
Continuity
Decreasing
Above
80–94 °C
(176–201 °F)
Continuity
Below
80–94 °C
(176–201 °F)
No continuity
P
B
c
c
d
d
d
Control system

Yamaha WaveRunner FX SHO Specifications

General

Manufacturer	Yamaha
Model	WaveRunner FX SHO
Category	Personal Watercraft
Engine Type	4-cylinder, 4-stroke, Supercharged
Displacement	1812cc
Bore x Stroke	86mm x 78mm
Fuel Delivery	Electronic Fuel Injection
Horsepower	210 HP
Starter System	Electric
Lubrication System	Wet sump
Length	132.7 in (3.37 m)
Fuel Capacity	18.5 gal (70 L)
Oil Capacity	5.3 qt (5.0 L)
Rider Capacity	3 persons
Cooling System	Water-cooled
Width	1.23 m
Dry Weight	377 kg
