Yamaha WaveRunner FX SHO Service Manual

9-16
E
TRBL
ANLS
1
2
3
4
5
6
7
8
9
POWER UNIT
Water passage 2
Compression pressure 3
Engine oil 3
Oil filter 3
Air filter 3
Air cooler 5
Supercharger 5
Oil cooler 5
Oil pump 5
Valves and valve seats 5
Valve pads 5
Camshafts 5
Timing chain 5
Drive coupling 5
Cylinder head gasket 5
Cylinder block 5
Crankcase 5
Crankshaft 5
Piston rings 5
Pistons 5
Bearings 5
Thermostat 5
Pilot water hose 5
Water hose 5
Trouble mode Check items
ENGINE WILL NOT START HARD STARTING ROUGH IDLING HIGH IDLING ENGINE STALLS POOR ACCELERATION ENGINE WILL NOT STOP POOR PERFORMANCE LIMITED ENGINE SPEED OVERHEATING LOW OIL PRESSURE LOOSE STEERING BILGE INCREASE IRREGULAR WARNING INDICATION
Relative item
Reference
chapter

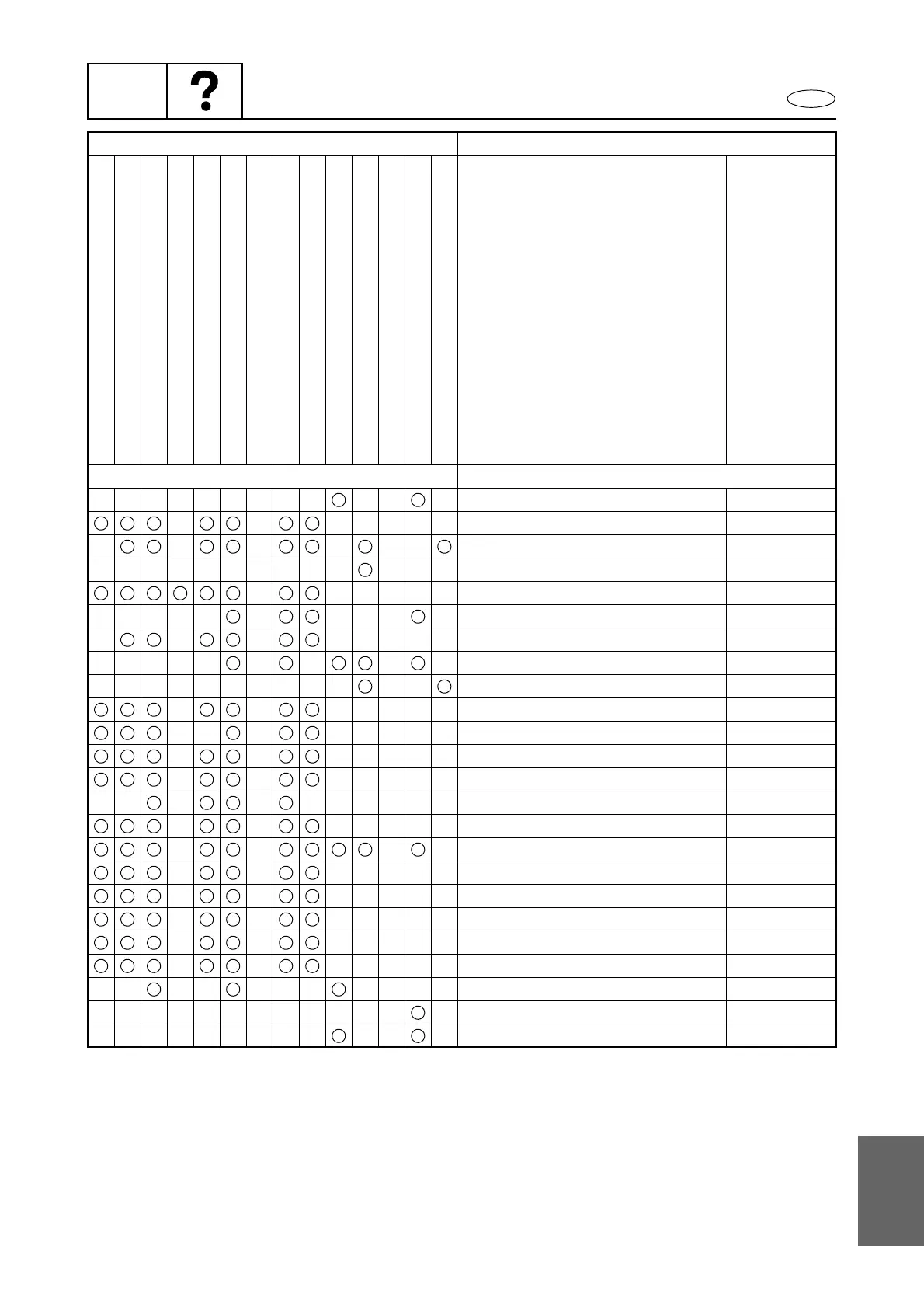

Engine unit trouble analysis

Yamaha WaveRunner FX SHO Specifications

General

Manufacturer	Yamaha
Model	WaveRunner FX SHO
Category	Personal Watercraft
Engine Type	4-cylinder, 4-stroke, Supercharged
Displacement	1812cc
Bore x Stroke	86mm x 78mm
Fuel Delivery	Electronic Fuel Injection
Horsepower	210 HP
Starter System	Electric
Lubrication System	Wet sump
Length	132.7 in (3.37 m)
Fuel Capacity	18.5 gal (70 L)
Oil Capacity	5.3 qt (5.0 L)
Rider Capacity	3 persons
Cooling System	Water-cooled
Width	1.23 m
Dry Weight	377 kg
