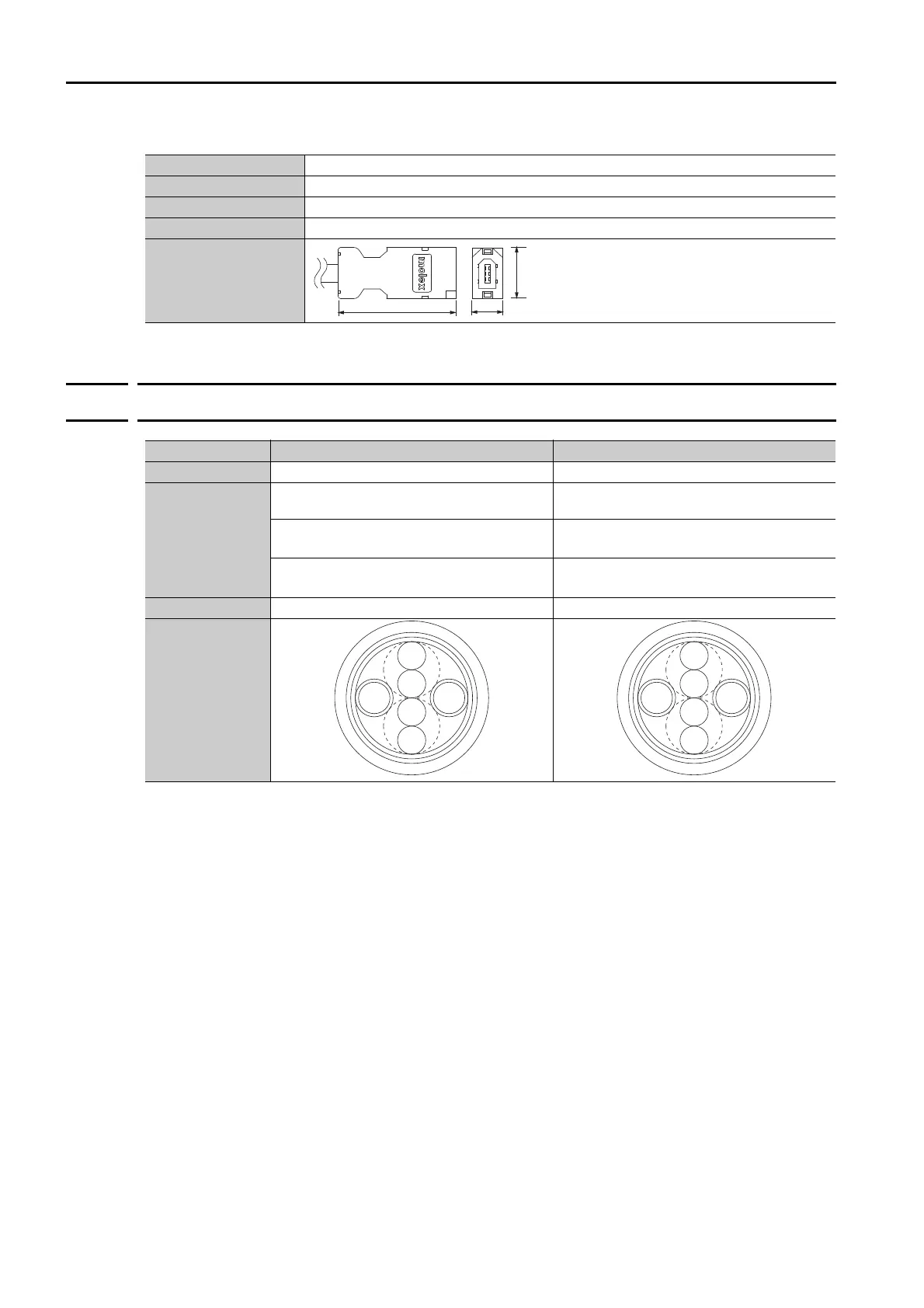

YASKAWA E-V Series Selection Manual

5.6 User-Assembled Wiring Materials for Encoder Cables
5.6.3 Cables without Connectors
5-16
 Cable Relay Connector
Note: Cables are not included. Purchase them separately.
5.6.3 Cables without Connectors
* Replace the boxes () in the order number with the cable length (05, 10, 15, or 20).
Order Number JZSP-CMP9-2-E
Manufacturer Molex Incorporated
Components 54280-0609 (soldered)
Product Specifications PS-54280
External Dimensions
[mm]
1
2
3
4
5
6
(19)
(12)
(44)
Item Standard Cable (20 m max.) Flexible Cable (20 m max.)
Order Number* JZSP-CMP09--E JZSP-CSP39--E
Specifications
UL20276 (rated temperature: 80°C)
AWG22 × 2C + AWG24 × 2P
UL20276 (rated temperature: 80°C)
AWG22 × 2C + AWG24 × 2P
AWG22 (0.33 mm
2
)
Outer diameter of insulating sheath: 1.15 mm
AWG22 (0.33 mm
2
)
Outer diameter of insulating sheath: 1.35 mm
AWG24 (0.20 mm
2
)
Outer diameter of insulating sheath: 1.09 mm
AWG24 (0.20 mm
2
)
Outer diameter of insulating sheath: 1.21 mm
Finished Diameter 6.5 mm 6.8 mm
Internal Structure
and Lead Colors
Light blue
/white
Orange
Orange
/white
Light
blue
Red
Black
Black
/light blue
Red
/light blue
Black
/pink
Red
/pink
Orange
Light
green
