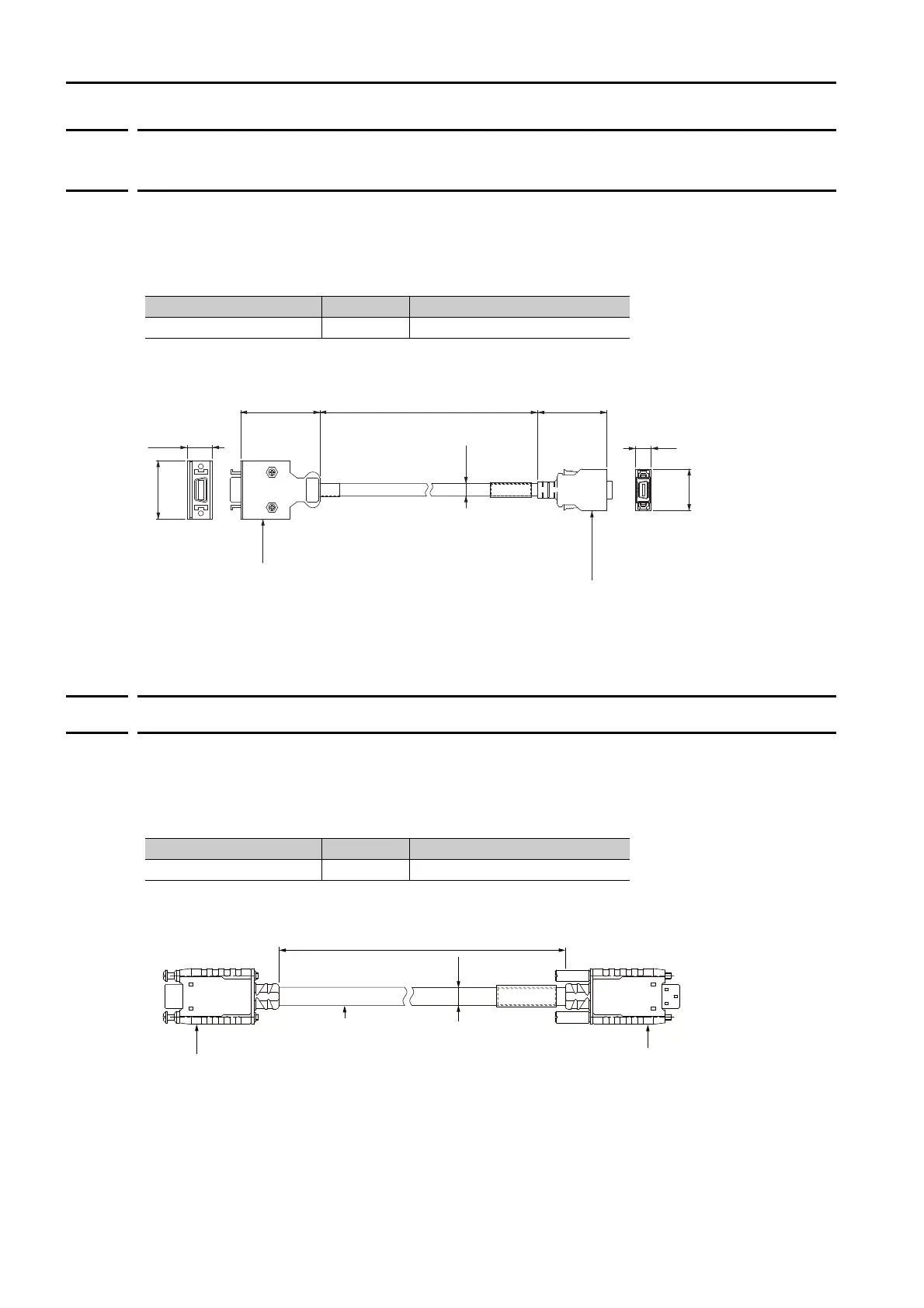

YASKAWA E-V Series Selection Manual

10.3 Digital Operator
10.3.2 Digital Operator Conversion Cable (for Σ-III-Series Digital Operators)
10-12
10.3.2 Digital Operator Conversion Cable
(for Σ-III-Series Digital Operators)
This Converter Cable is required to use the Σ-III-series Digital Operator (JUSP-OP05A) for Σ-7-
series SERVOPACKs.
Selection Table
Dimensional Drawing
10.3.3 Digital Operator Conversion Cable with Lock Screws
This Converter Cable is required to prevent the cable from disconnecting from the Digital Oper-
ator.
Selection Table
Dimensional Drawing
Order Number Length (L) Inquires
JZSP-CVS05-A3-E 0.3 m Yaskawa Controls Co., Ltd.
Unit: mm
Cover: HDR-E14LPA5 (Honda Tsushin Kogyo Co., Ltd.)
Connector (14 poles): HDR-E14MAG1+ (Honda Tsushin Kogyo Co., Ltd.)
Cover: Custom-made part
Connector (14 poles): 10214-6202PL (3M Japan Limited)
(8)
300
+30
-0
(35)(39)
(21)
(12.7)
(29.5)
3M
10314
(4.8 dia.)
Order Number Length (L) Inquires
JZSP-CVS07-A3-E 0.3 m Yaskawa Controls Co., Ltd.
(4.8 dia.)
300
Unit: mm
Cover: HDR-E14LPH (Honda Tsushin Kogyo Co., Ltd.)
Connector: HDR-E14MAG1+ (Honda Tsushin Kogyo Co., Ltd.)
Cover: HDR-E14LPHD+ (Honda Tsushin Kogyo Co., Ltd.)
Connector: HDR-E14FAG1+ (Honda Tsushin Kogyo Co., Ltd.)
UL20276 (Sanyo Co. Ltd.)
Cable: 30AWG×7P-SB-U,
