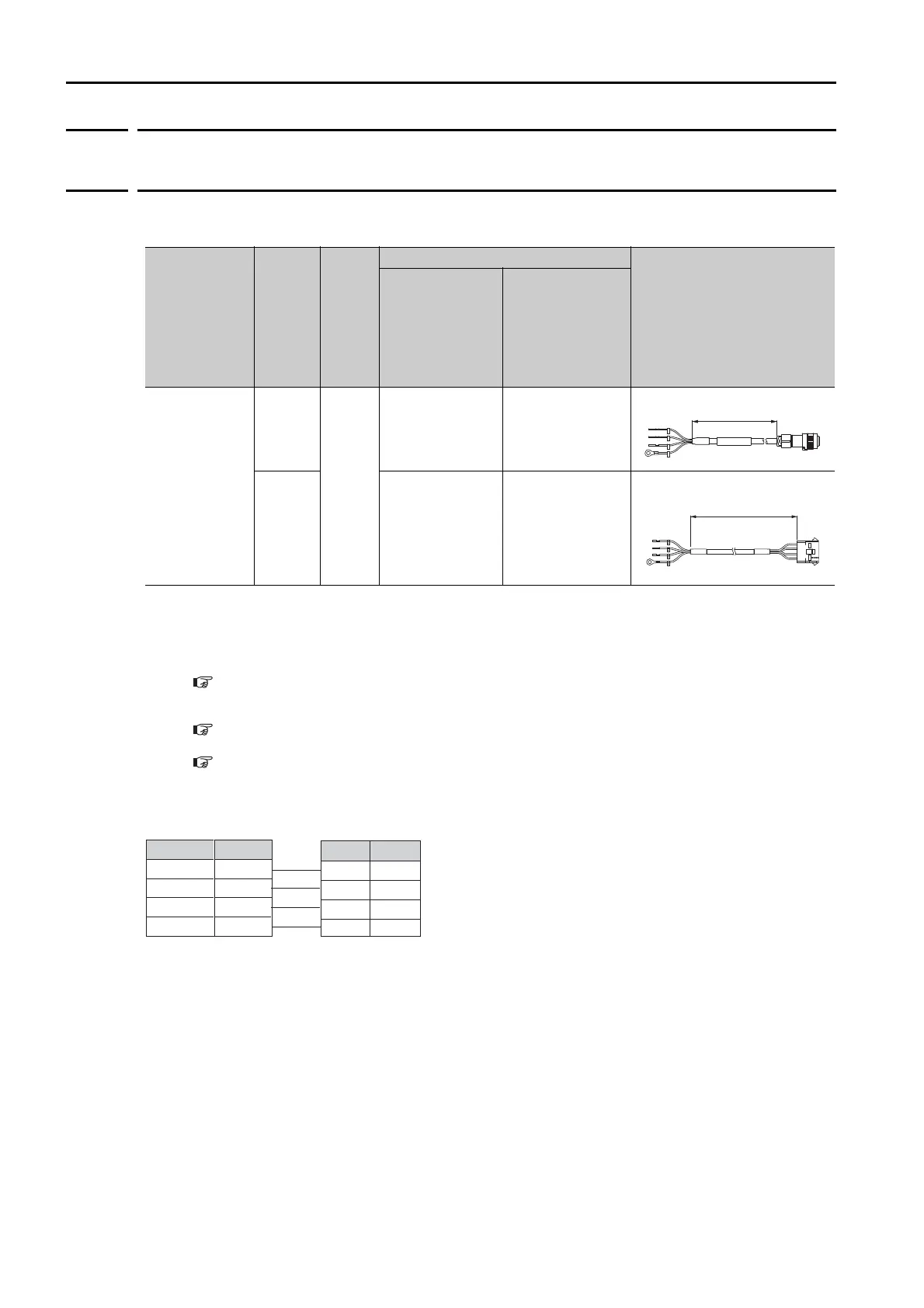

8.2 Servomotor Main Circuit Cables
8.2.2 Main Circuit Cables for SGM7E and SGM7F-A to -D Motors
8-8
8.2.2
Main Circuit Cables for SGM7E and SGM7F-A to -
D Motors
Selection Table
*1. Replace the boxes () in the order number with the cable length (03, 05, 10, 15, or 20).
*2. Use Flexible Cables for moving parts of machines, such as robots.
*3. The recommended bending radius (R) is 90 mm or larger.
Note: 1. Refer to the following section for information on connector specifications, manufacturers, and order num-
bers.
SGM7E Servomotors, SGM7F-
A to -
D Servomotors, SGMCV Servomotors, and SGMCS Small-
Capacity, Coreless Servomotor on page 8-13
2. Refer to the following section for information on wiring material specifications and order numbers.
Main Circuit Cables for SGM7E Servomotors and SGMCS Small-Capacity, Coreless Servomotors on page
8-17
Main Circuit Cables for SGM7F-
A to -
D Servomotors and SGMCV Servomotors on page 8-17
Wiring Specifications
Servomotor
Model
Flange
Specifi-
cation
Code
(6th
Digit in
Model
Number)
Length
(L)
Order Number
*1
Appearance
Standard Cable Flexible Cable
*2, *3
SGM7E-
SGM7F-A
to -D
1
Non-
load side
installa-
tion
3 m,
5 m,
10 m,
15 m,
and
20 m
JZSP-CMM60-
-E
JZSP-C7MDN23-
-E
4
Non-
load side
installa-
tion (with
cable on
side)
JZSP-CMM00-
-E
JZSP-C7MDS23-
-E
Pin
Signal
Signal
Wire Color
1
2
3
4
Motor end
FG
Phase W
Phase V
Phase U
FG
Phase W
Phase V
Phase U
Green/(yellow)
Blue
White
Red
SERVOPACK end
To Next Page
