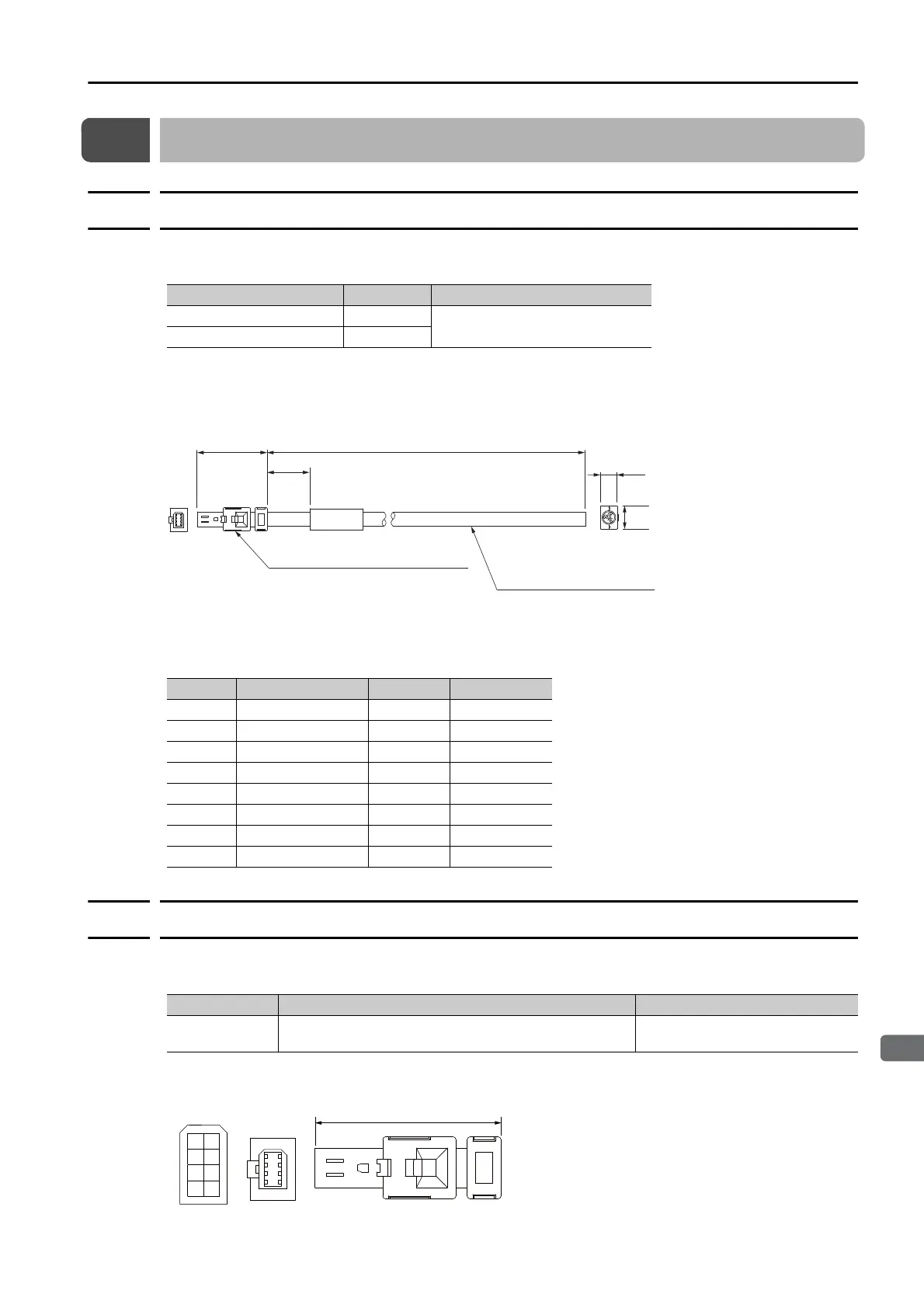

YASKAWA E-V Series Selection Manual

10.6 Safety Function Device Cable
10.6.1 Cables with Connectors
10-29
10
Cables and User-Assembled Wiring Materials for SERVOPACKs
10.6 Safety Function Device Cable
10.6.1 Cables with Connectors
Selection Table
Note: When using safety functions, connect this Cable to the safety function devices.
When not using safety functions, connect the enclosed Safety Jumper Connector to the SERVOPACK.
Dimensional Drawing
Wiring Specifications
10.6.2 Connector Kits
Selection Table
Dimensional Drawing
Order Number Length (L) Inquires
JZSP-CVH03-01-E 1 m
Yaskawa Controls Co., Ltd.
JZSP-CVH03-03-E 3 m
Pin Signal Lead Color Markings
1 Not connected – –
2 Not connected – –
3 /HWBB1- White Black
4 /HWBB1+ White Red
5 /HWBB2- Light gray Black
6 /HWBB2+ Light gray Red
7 EDM1- Orange Black
8 EDM1+ Orange Red
Connector Kit: 2013595-1
Tyco Electronics Japan G.K.
L
(8)
(11)
(20)
(33)
CM/2464-1061/IIA-SB LF
26AWG×3P
Taiyo Cabletec Corporation
Unit: mm
Order Number Product Name Inquires
2013595-1
INDUSTRIAL MINI I/O D-SHAPE TYPE1 PLUG
CONNECTOR KIT
Tyco Electronics Japan G.K.
87
65
43
21
(33)
Pin Layout
Unit: mm
