YASKAWA E-V Series Selection Manual

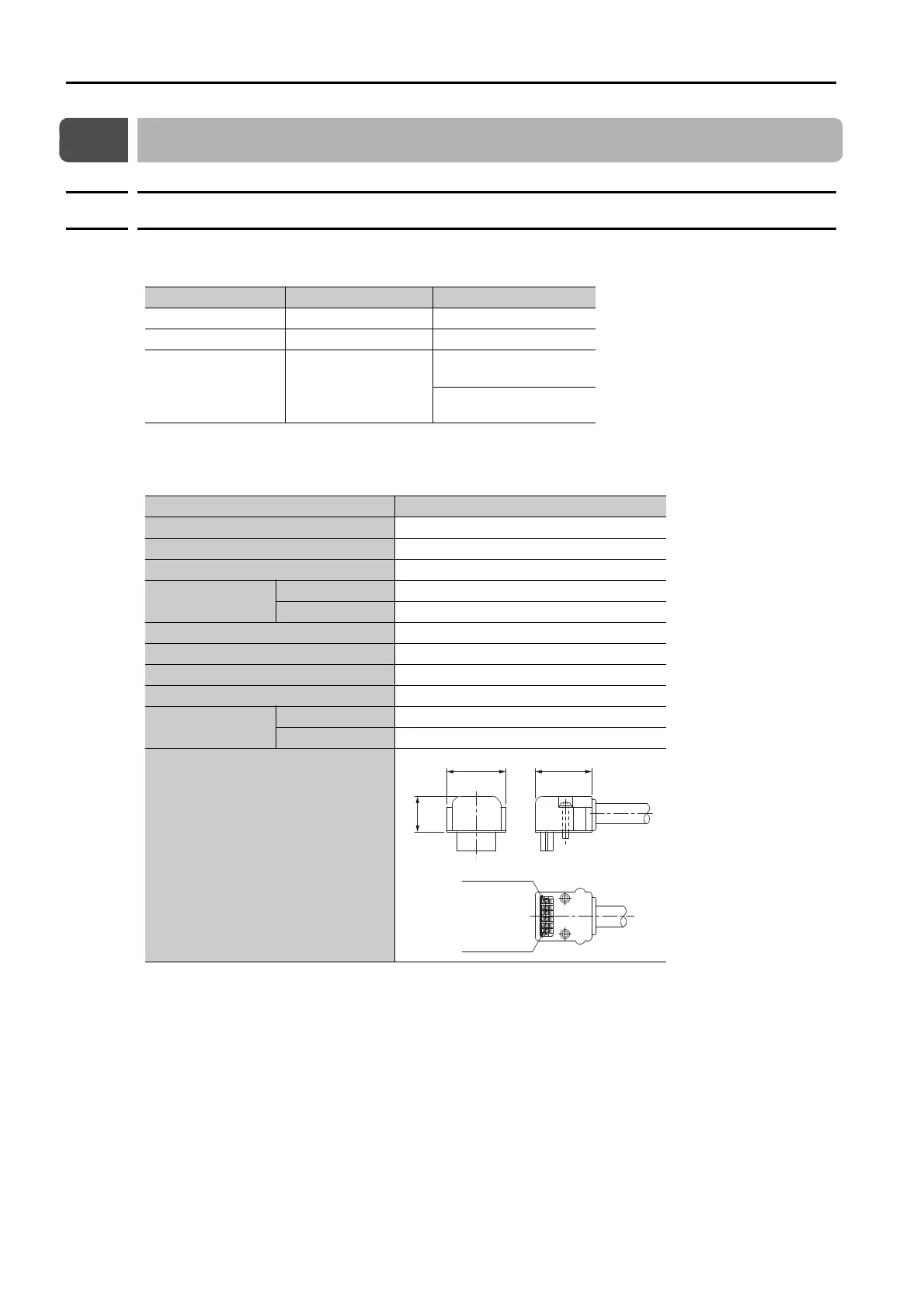

5.3 User-Assembled Wiring Materials for Servomotor Main Circuit Cables
5.3.1 Servomotor Connector Kits
5-6
5.3 User-Assembled Wiring Materials for Servomotor Main Circuit Cables
5.3.1 Servomotor Connector Kits
Selection Table
* Cables are not included. Purchase them separately.
 SGM7P-01 (100 W)
* A Crimping Tool is required. Contact the connector manufacturer for details.
Note: Cables are not included. Purchase them separately.
Servomotor Model Servomotor Capacity Order Number*
SGM7P-01 100 W JZSP-CSM9-1-E
SGM7P-02 or -04 200 W or 400 W JZSP-CSM9-2-E
SGM7P-08 or -15 750 W or 1.5 kW
Without Holding Brake:
JZSP-CMM9-3-E
With Holding Brake:
JZSP-CSM9-5-E
Item Description
Order Number JZSP-CSM9-1-E
Manufacturer J.S.T. Mfg. Co., Ltd.
User Instructions JFA Connector J-1700
Components
Receptacle J17-06FMH-7KL-1M-CF
Contacts SJ1F-01GF-P0.8
Applicable Wire Sizes AWG20 to AWG24
Applicable Cable Diameter 7 mm ±0.3 mm
Outer Diameter of Insulating Sheath 1.11 mm to 1.53 mm
Mounting Screws M2 pan-head screws
Crimping Tool*
Hand Tool YRS-8841
Applicator APLMK SJ1F/MO1-08
External Dimensions [mm]
Pin 6
Pin 1
19
12
20
654 321
