10.1 System Configuration Diagrams and Selection Tables
10.1.1 Cable Configurations
10-3
10
Cables and User-Assembled Wiring Materials for SERVOPACKs
10.1 System Configuration Diagrams and Selection Tables
10.1.1 Cable Configurations

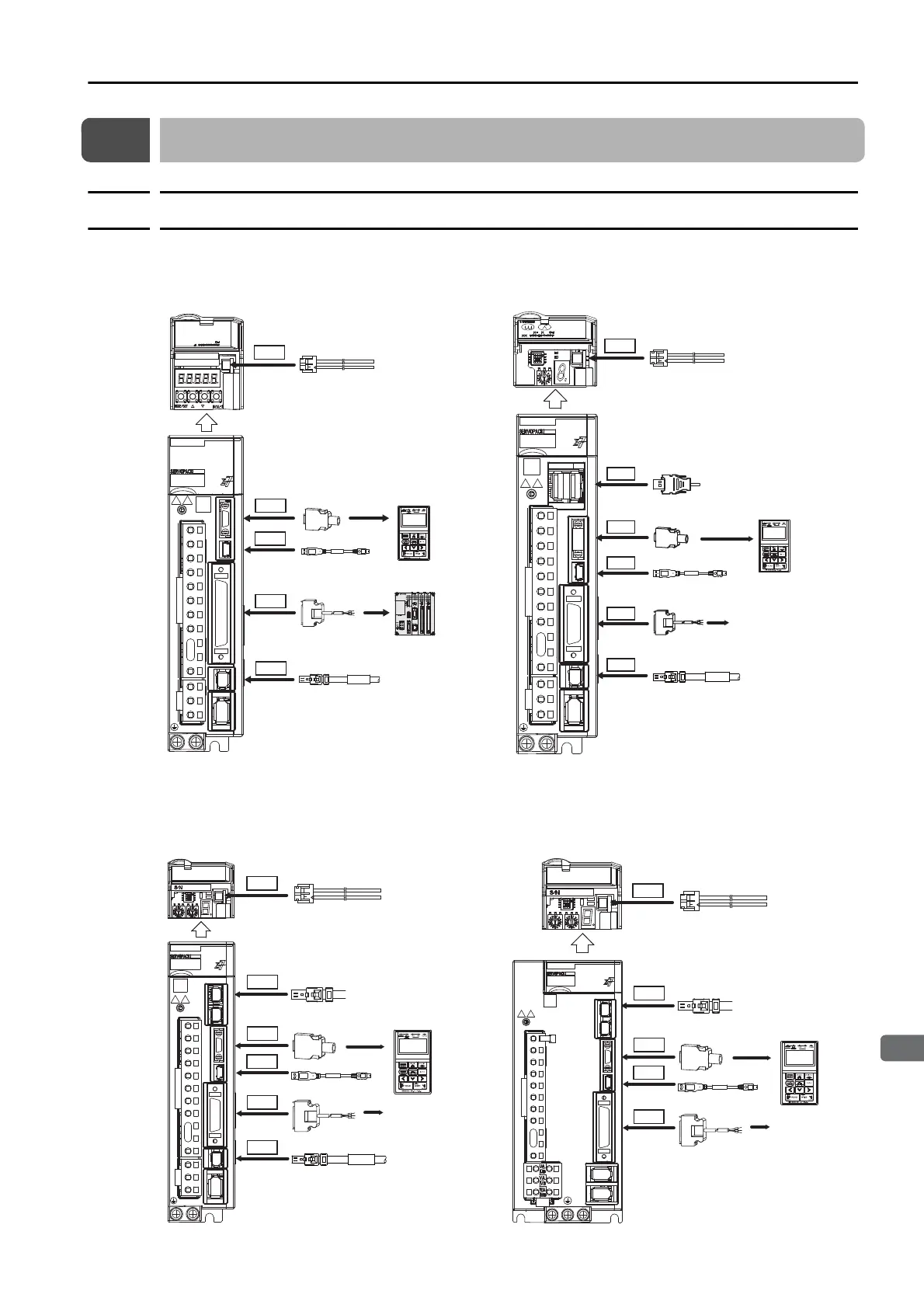

 Σ-7S (Single Axis) SERVOPACKs with
Analog Voltage/Pulse Train Reference
 Σ-7S (Single Axis) SERVOPACKs with
MECHATROLINK-II Communications Reference
 Σ-7S (Single Axis) SERVOPACKs with
MECHATROLINK-III Communications Reference
 Σ-7W (Two Axes) SERVOPACKs with
MECHATROLINK-III Communications Reference
CN3
I/O Signal Cable
Digital
Operator
Digital Operator
Conversion Cable
Analog Monitor Cable
Safety Function
Device Cable
CN7
CN1
CN8
Computer Cable
Host controlle
r
CN5
JZSP-CVS06-02-E
Analog Monitor Cable
CN5
Digital Operator
Conversion Cable
Safety Function
Device Cable
I/O Signal Cable
To next
MECHATROLINK-III station
MECHATROLINK-II
Communications Cable
To external devices,
such as LED indicators
CN1
CN6
CN3
CN7
CN8
Digital
Operator
Computer Cable
JZSP-CVS06-02-E
Digital Operator
Conversion Cable
Safety Function Device Cable
Analog Monitor Cable
JZSP-CVS06-02-E
I/O Signal Cable
To next
MECHATROLINK-III station
MECHATROLINK-III
Communications Cable
To external devices,
such as LED indicators
CN1
CN5
CN6
CN3
CN7
CN8
Digital
Operator
Computer Cable
JZSP-CVS06-02-E
CN6
CN3
CN7
CN1
 Digital Operator
Conversion Cable
 Analog Monitor Cable
To next
MECHATROLINK-III station
 MECHATROLINK-III
Communications Cable
CN5
Digital
Operator
 Computer Cable
 I/O Signal Cable
To external devices,
such as LED indicators
