3.5 Relay Encoder Cables of 30 m to 50 m
3.5.1 Motor-End Relay Encoder Cables
3-12

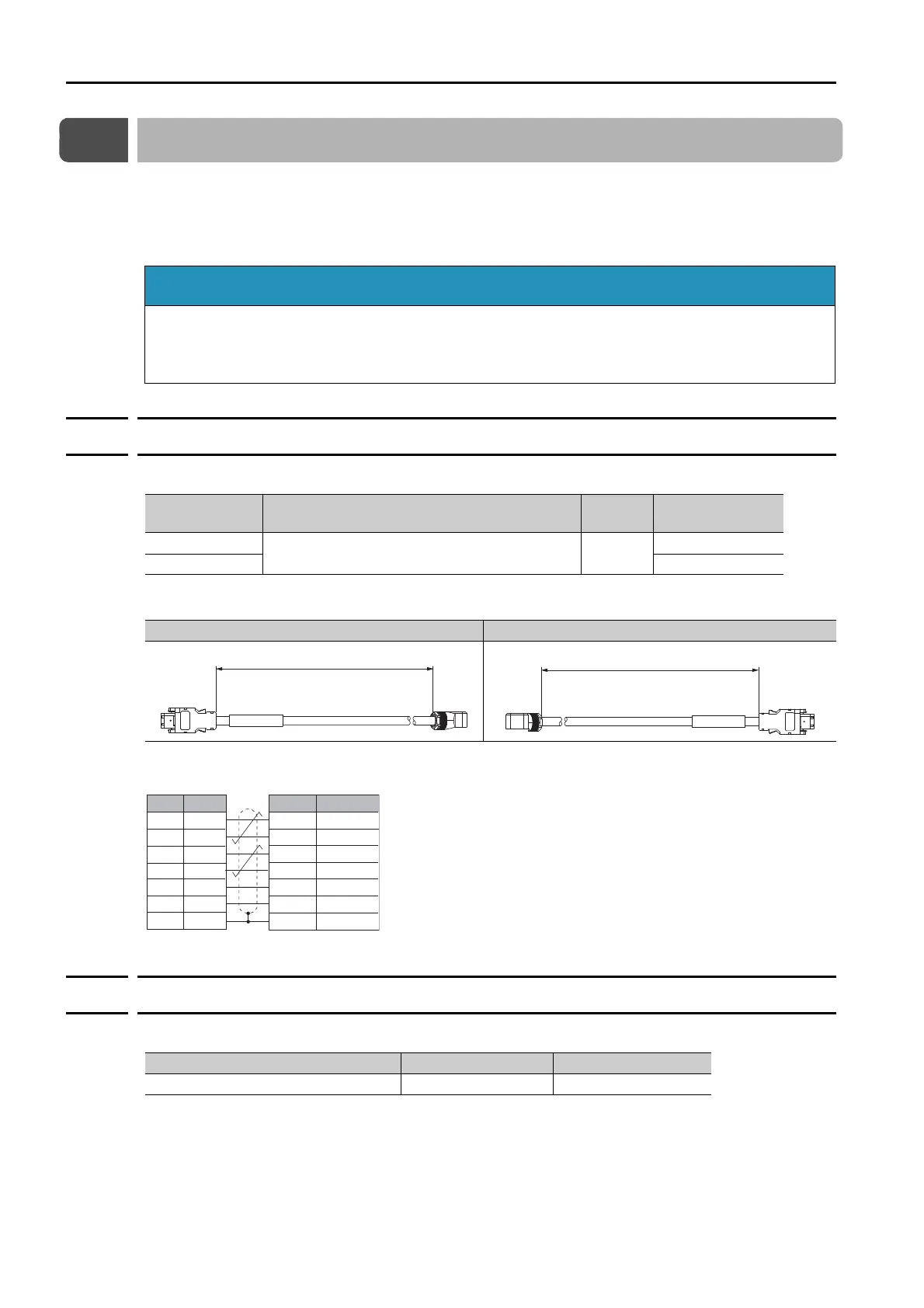

3.5 Relay Encoder Cables of 30 m to 50 m
If the Encoder Cable length exceeds 20 m, be sure to also use a Motor-End Relay Encoder
Cable and a SERVOPACK-End Relay Encoder Cable.
If you use a motor with an absolute encoder and a battery is not mounted to the host controller,
also obtain a Relay Encoder Cable with a Battery Case in addition to the above two Cables.
3.5.1 Motor-End Relay Encoder Cables
Selection Table
External Dimensions
Wiring Specifications
3.5.2 SERVOPACK-End Relay Encoder Cables
Selection Table
* Replace the boxes () in the order number with the cable length (30, 40, or 50).
NOTICE
 Install a battery at either the host controller or on the Encoder Cable.
If you install batteries both at the host controller and on the Encoder Cable at the same time,
you will create a loop circuit between the batteries, resulting in a risk of damage or burning.
Cable Direction Specification
Length
(L)
Order Number
Load side
Used for all types of encoders. 0.3 m
JZSP-C7PRCD-E
Non-load side JZSP-C7PRCE-E
Cable Installed away from Load Cable Installed toward Load
SERVOPACK end Encoder end
L
SERVOPACK endEncoder end
L
Pin Wire Color
Black
Red
Light blue/white
Light blue
Orange/white
Orange
9
4
8
5
3
6
Encoder (motor) end
Pin Signal
6
5
4
3
2
1
Shell FG Shell FG
SERVOPACK end
Shield wire
/PS
PS
BAT (-)
BAT (+)
PG 5 V
PG 0 V
Specification Length (L) Order Number*
Used for all types of encoders. 30 m, 40 m, and 50 m JZSP-UCMP00--E
