4.3 User-Assembled Wiring Materials for Servomotor Main Circuit Cables
4.3.2 Standard-Structure Servomotor Connectors for 1.5 kW to 7.0 kW
4-14
4.3.2 Standard-Structure Servomotor Connectors for 1.5 kW
to 7.0 kW

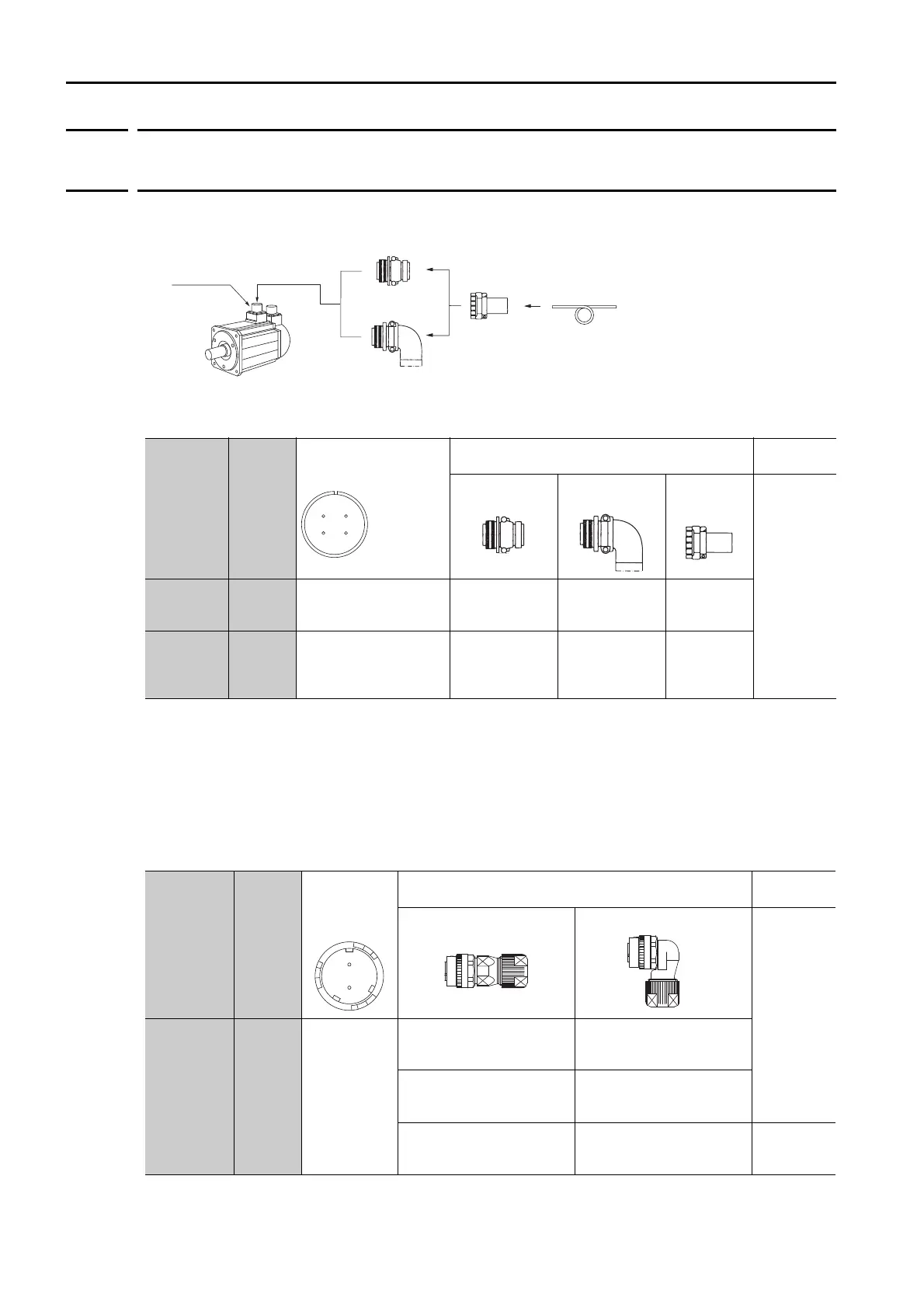

Connector Structures
For Servomotors without Holding Brakes
Note: 1. Servomotor Connectors (receptacles) are compatible with MS Connectors. If you prepare your own cables,
refer to the model number of MS connector in parentheses and select the appropriate plug.
2. Yaskawa does not specify what wiring materials to use. Use appropriate wiring materials for the current
specifications and connectors.
For Servomotors with Holding Brakes
A Servomotor Connector and Brake Power Supply Connector are required.
The Servomotor Connector is also used for Servomotors without Holding Brakes.
Note: 1. Yaskawa does not specify what wiring materials to use. Use appropriate wiring materials for the current
specifications and connectors.
Servomo-
tor Model
Capacity
Servomotor Connector
Model (Receptacle)
Order Number
Manufac-
turer
Straight Plug
Right-Angle
Plug
Cable
Clamp
Japan Avi-
ation Elec-
tronics
Industry,
Ltd.
SGM7A-15
SGM7A-20
SGM7A-25
1.5 kW
to
2.5 kW
CE05-2A18-10PD-D
(MS Connector model:
MS3102A18-10P)
N/MS3106B18
-10S
N/MS3108B18
-10S
N/MS3057
-10A
SGM7A-30
SGM7A-40
SGM7A-50
SGM7A-70
3.0 kW
to
7.0 kW
CE05-2A22-22PD-D
(MS Connector model:
MS3102A22-22P)
N/MS3106B22
-22S
N/MS3108B22
-22S
N/MS3057
-12A
Servomotor
Model
Capacity
Servomotor
Connector
Model
(Receptacle)
Order Number
Manufac-
turer
Straight Plug
Right-Angle Plug
DDK Ltd.
SGM7A-15
SGM7A-20
SGM7A-25
SGM7A-30
SGM7A-40
SGM7A-50
1.5 kW
to
5.0 kW
CM10-R2P-D
CM10-SP2S-S-D
Applicable cable diameter:
4.0 mm to 6.0 mm
CM10-AP2S-S-D
Applicable cable diameter:
4.0 mm to 6.0 mm
CM10-SP2S-M-D
Applicable cable diameter:
6.0 mm to 9.0 mm
CM10-AP2S-M-D
Applicable cable diameter:
6.0 mm to 9.0 mm
CM10-SP2S-L-D
Applicable cable diameter:
9.0 mm to 11.6 mm
CM10-AP2S-L-D
Applicable cable diameter:
9.0 mm to 11.6 mm
−
Cable Clamp Cable
Straight Plug
Right-Angle Plug
Servomotor
Connector
(receptacle)
A
B
C
D
1
2
