YASKAWA E-V Series Selection Manual

10.5 I/O Signal Cables for SERVOPACKs
10.5.2 For Σ-7S MECHATROLINK-II/-III Communications Reference or Command Option Attachable-Type SERVOPACKs
10
Cables and User-Assembled Wiring Materials for SERVOPACKs
10-19

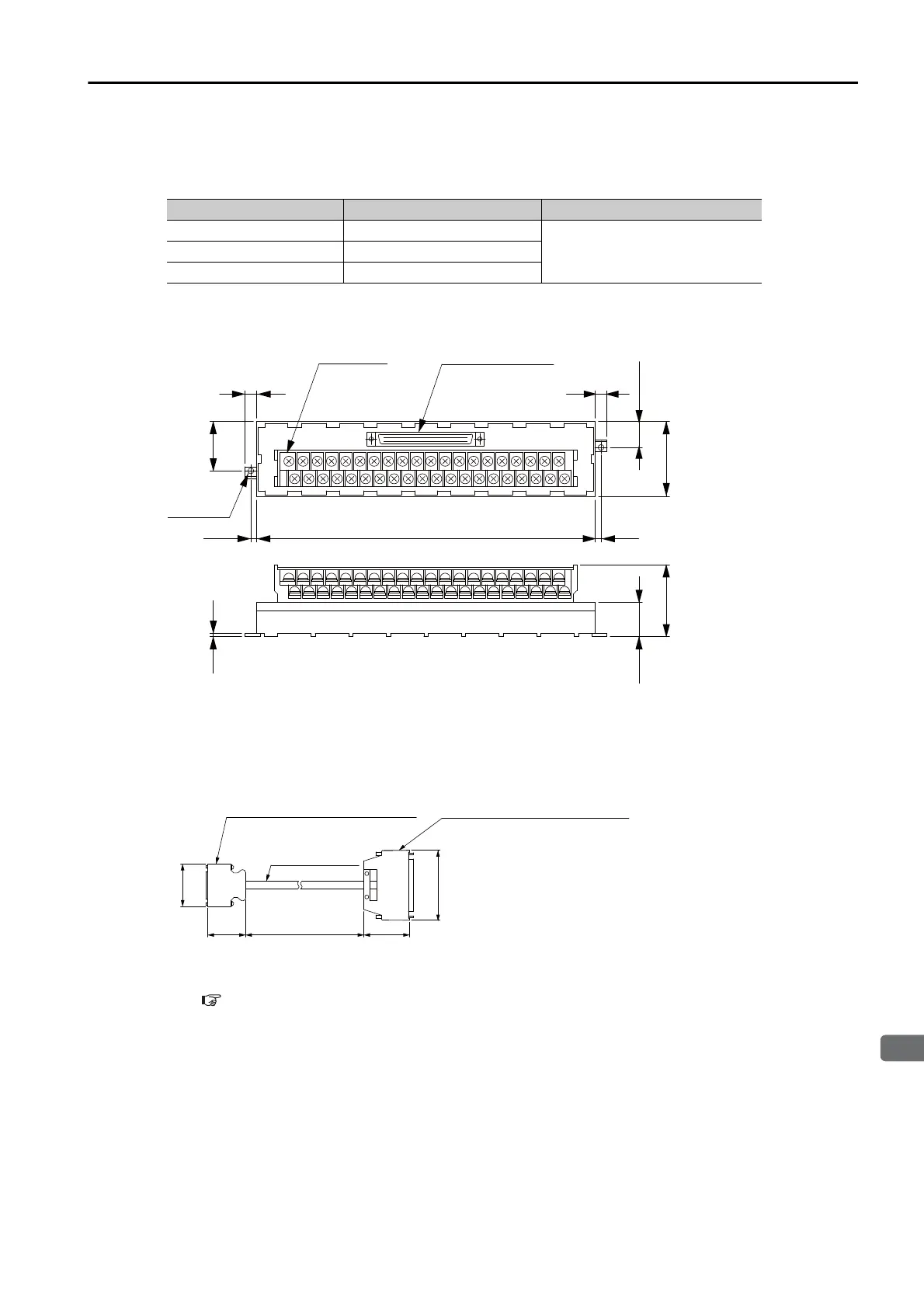

Connector-Terminal Block Converter Unit
 Selection Table
 Dimensional Drawing
 Dimensional Drawing of Enclosed Cable
Note: The same pin numbers are used for the SERVOPACK connector and the terminal block. Pins 1 to 26 are
wired. Do not connect pins 27 and higher.
To assemble your own cables, refer to the following section for the wiring specifications.
 Wiring Specifications on page 10-17
Order Number Length of Enclosed Cable (L) Inquires
JUSP-TA26P-E 0.5 m
Yaskawa Controls Co., Ltd. JUSP-TA26P-1-E 1 m
JUSP-TA26P-2-E 2 m
40
39
1
2
B20
A20
B1
A1
29.5
20.5
15.5
45
2
7
7
43
3.5
202.5
3.5
2 × 3.5 dia.
holes
FCN-364P040-AU
Unit: mm
Can be mounted to DIN rail.
Connector Plug (40P)
M3.5 screws
Terminal block (40P)
73
4739 L
37.2
AWG28, 18P
SSRFPVV-SB
Unit: mm
FCN-360C040-B (Fujitsu Ltd.)
Cover
FCN-361J040-AU (Fujitsu Ltd.)
Terminal Block Converter Unit connector (40P)
Cable (black)
10326-52A0-008 (3M Japan Limited)
Shell
10126-6000EL (3M Japan Limited)
SERVOPACK connector (26P)
