YASKAWA E-V Series Selection Manual

10.3 Digital Operator
10.3.1 Digital Operator for Σ-7-Series SERVOPACKs: JUSP-OP05A-1-E
10-11
10
Cables and User-Assembled Wiring Materials for SERVOPACKs
10.3 Digital Operator
A Digital Operator is used to display and set parameters in a SERVOPACK.
You can use the following two types of Digital Operators with Σ-7-Series SERVOPACKs.
• Digital Operator for Σ-V-Series and Σ-7-Series SERVOPACKs: JUSP-OP05A-1-E
• Digital Operators for Σ-III-Series SERVOPACKs: JUSP-OP05A and JUSP-OP05A-E
10.3.1 Digital Operator for Σ -7-Series SERVOPACKs:
JUSP-OP05A-1-E
To use the Digital Operator for Σ-7-Series SERVOPACKs (JUSP-OP05A-1-E), connect it to the
CN3 connector on the SERVOPACK.
Main Functions
• Changing and accessing the settings of parameters in the SERVOPACK
• Reading, writing, and verifying the settings of parameters in the SERVOPACK
• Operating the SERVOPACK
• Adjustment with SERVOPACK utility functions
• Monitoring the operating conditions of the SERVOPACK
Selection Table

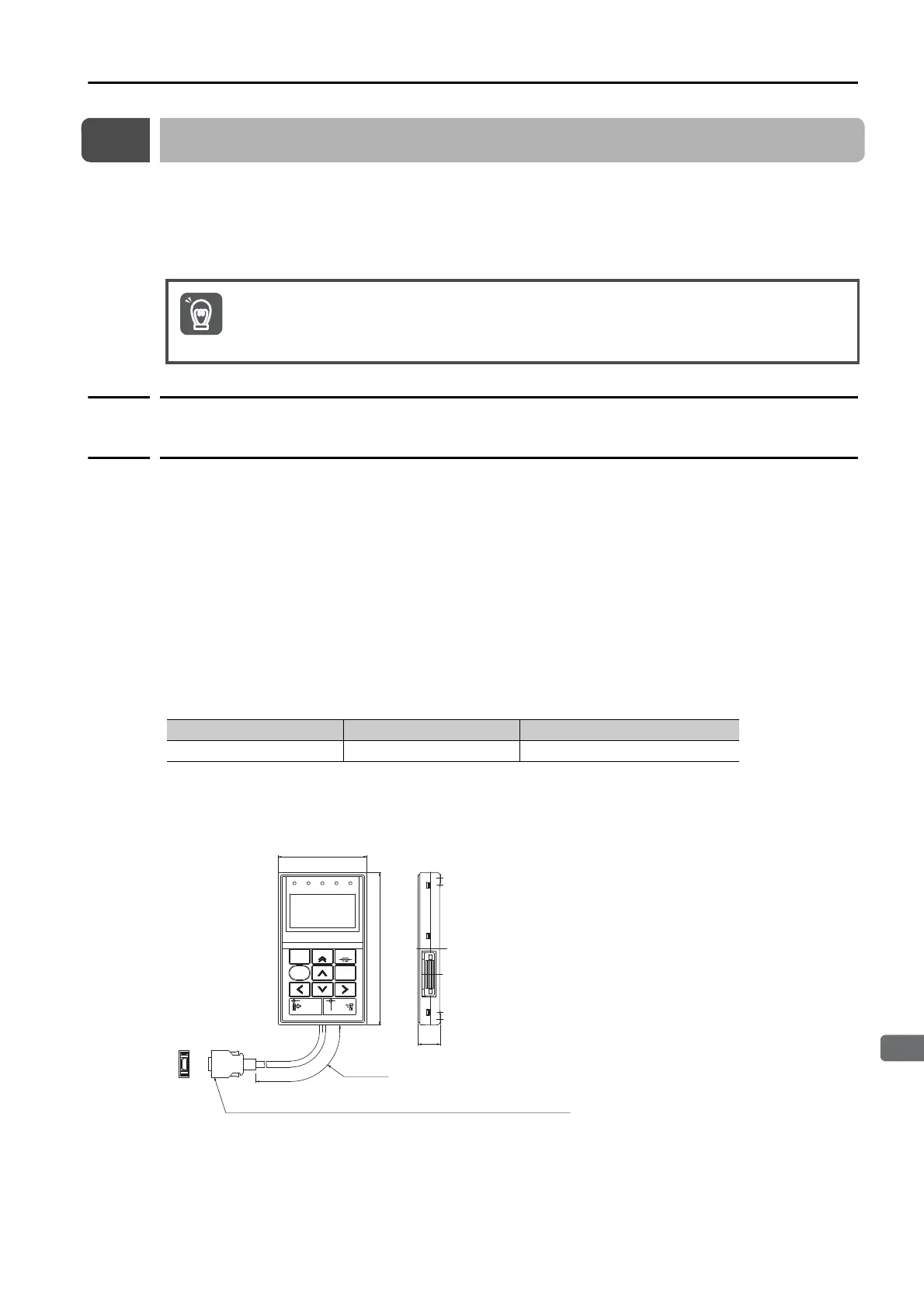

Dimensional Drawing
• JUSP-OP05A-1-E
Use the Yaskawa-specified cables.
Operation will not be dependable due to low noise resistance with any other cable.
Important
Order Number Accessories Inquiries
JUSP-OP05A-1-E Cable (1 m) Yaskawa Electric Corporation
Case: HDR-E14LPA5 (Honda Tsushin Kogyo Co., Ltd.)
Connector: HDR-E14MAG1+ (Honda Tsushin Kogyo Co., Ltd.)
Unit: mm
VCMP
SVON COIN TGON
REF CHARGE
ALARM
DATA
JOG
SVON
SCROLL MODE/RESET
RESET
SERVO
READ WRITE
SERVO
DIGITAL OPERATOR JUSP-OP05A-1-E
17.8
1000
70
+30
0
120
