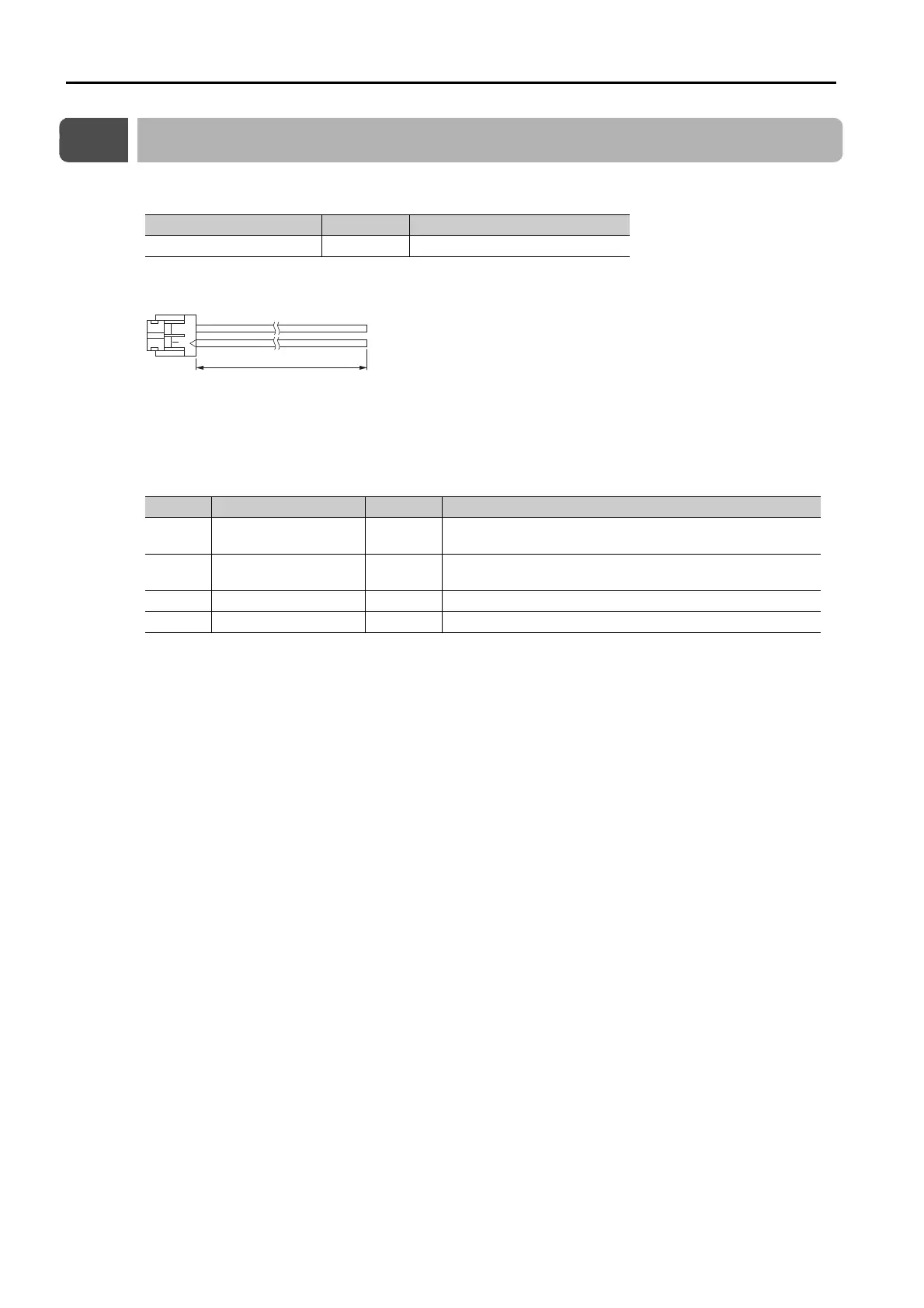

10.2 Analog Monitor Cables
10-10
10.2 Analog Monitor Cables
Selection Table
Dimensional Drawing
• Wire size: AWG24
• Socket model: DF11-4DS-2C (Hirose Electric Co., Ltd.)
• Contacts model: DF11-2428SCF (Hirose Electric Co., Ltd.)
Wiring Specifications
Order Number Length (L) Inquires
JZSP-CA01-E 1 m Yaskawa Controls Co., Ltd.
Pin Signal Wire Color Monitor Contents
1 Analog monitor 2 Red
Select the signal to monitor by setting Pn007 = n.XX
(Analog Monitor 2 Signal Selection).
2 Analog monitor 1 White
Select the signal to monitor by setting Pn006 = n.XX
(Analog Monitor 1 Signal Selection).
3 GND (0 V) Black Signal ground
4 GND (0 V) Black Signal ground
L
