YASKAWA E-V Series Selection Manual

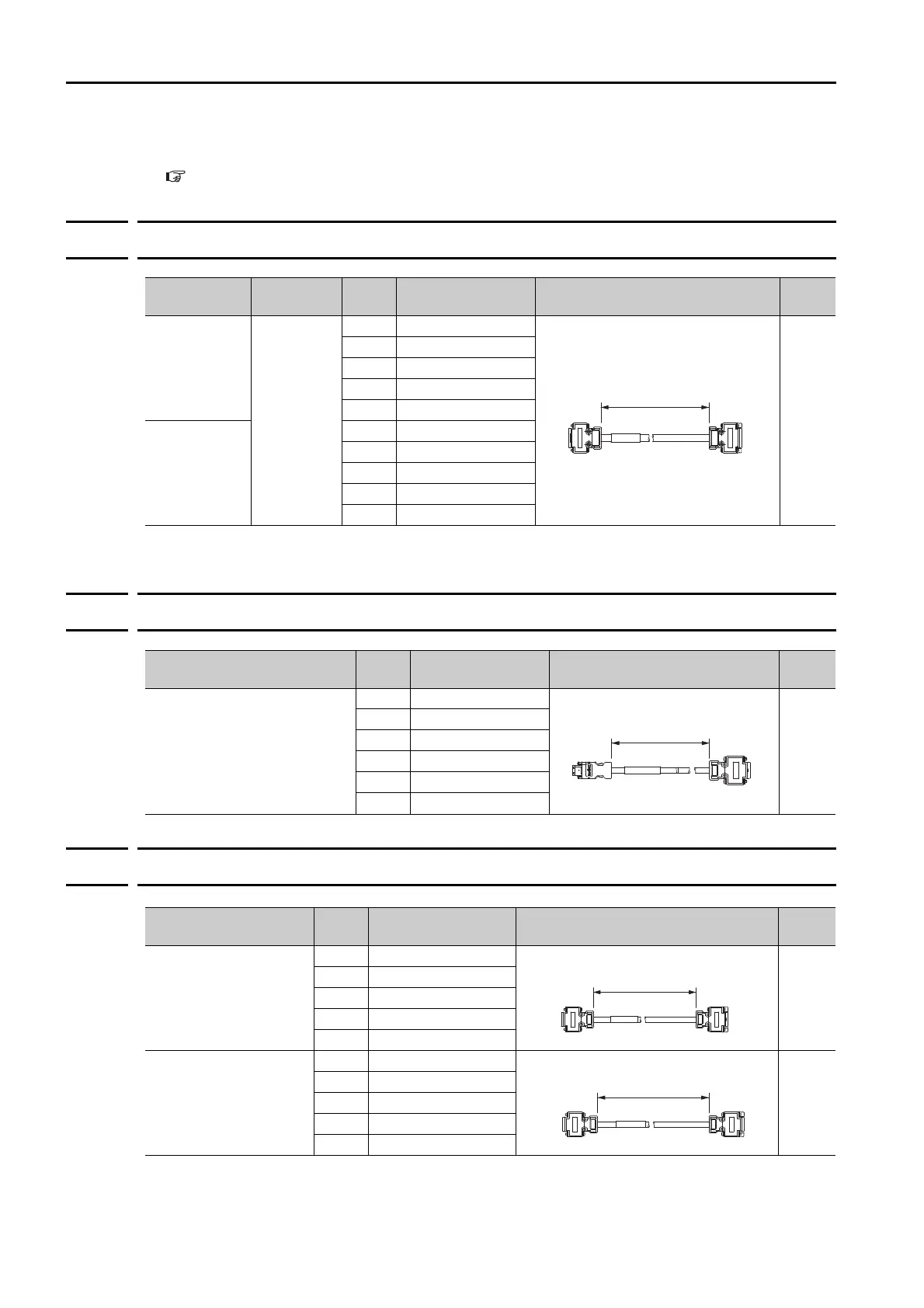

9.3 Cable Selection Table
9.3.2 Linear Encoder Cables
9-20
*2. Connector from Interconnectron GmbH
*3. A connector is not provided on the Linear Servomotor end. Obtain a connector according to your specifications.
Refer to the following section for information on connectors.
 JZSP-CLN39 Cable Connectors on page 9-23
9.3.2 Linear Encoder Cables
* When using a JZDP-J00--E Serial Converter Unit, do not exceed a cable length of 3 m.
9.3.3 Serial Converter Unit Cables
9.3.4 Sensor Cables
Name
Servomotor
Model
Length
(L)*
Order Number Appearance Details
For Linear
Encoder from
Renishaw plc
All models
1 m JZSP-CLL00-01-E
page
9-25
3 m JZSP-CLL00-03-E
5 m JZSP-CLL00-05-E
10 m JZSP-CLL00-10-E
15 m JZSP-CLL00-15-E
For Linear
Encoder from
Dr. JOHANNES
HEIDENHAIN
GmbH
1 m JZSP-CLL30-01-E
3 m JZSP-CLL30-03-E
5 m JZSP-CLL30-05-E
10 m JZSP-CLL30-10-E
15 m JZSP-CLL30-15-E
Linear Encoder end
Serial Converter Unit end
L
Servomotor Model
Length
(L)
Order Number Appearance Details
All models
1 m JZSP-CLP70-01-E
page
9-26
3 m JZSP-CLP70-03-E
5 m JZSP-CLP70-05-E
10 m JZSP-CLP70-10-E
15 m JZSP-CLP70-15-E
20 m JZSP-CLP70-20-E
SERVOPACK end
Serial Converter
Unit end
L
Servomotor Model
Length
(L)
Order Number Appearance Details
SGLGW-A
SGLFW-
A
SGLTW-
A
1 m JZSP-CLL10-01-E
page
9-27
3 m JZSP-CLL10-03-E
5 m JZSP-CLL10-05-E
10 m JZSP-CLL10-10-E
15 m JZSP-CLL10-15-E
SGLFW2-
AAS
(with Polarity Sensor)
1 m JZSP-CL2L100-01-E
page
9-27
3 m JZSP-CL2L100-03-E
5 m JZSP-CL2L100-05-E
10 m JZSP-CL2L100-10-E
15 m JZSP-CL2L100-15-E
Continued on next page.
Serial Converter
Unit end
Polarity sensor end
L
Serial Converter
Unit end
Polarity sensor
L
